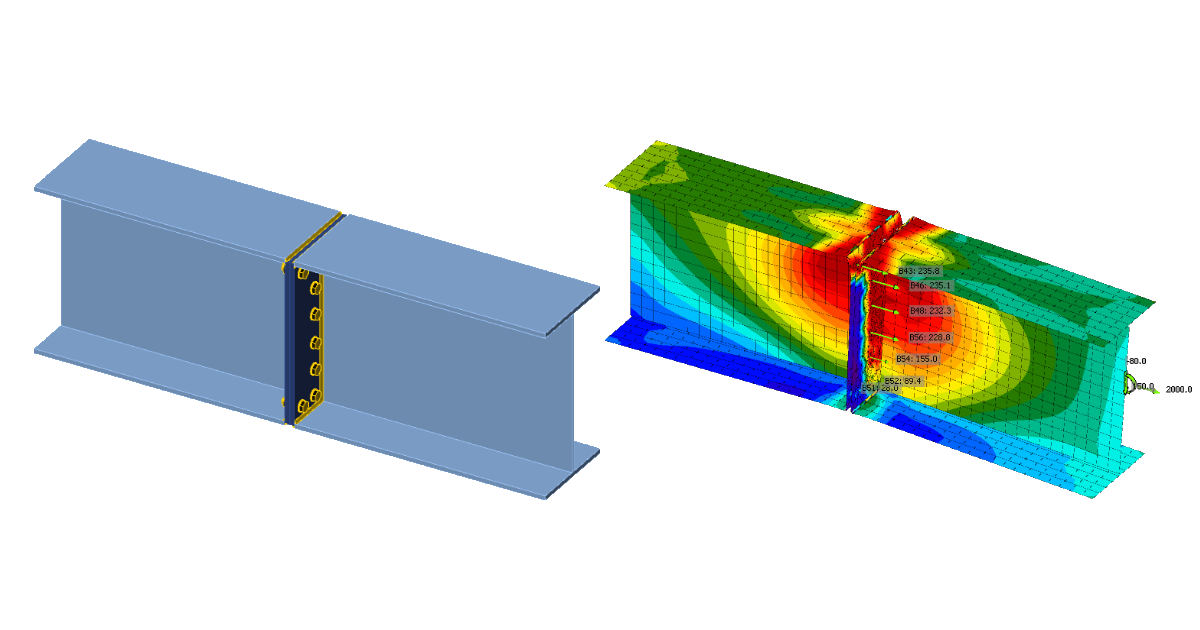

By following this step-by-step tutorial, you will learn how to design and code-check a structural steel joint using IDEA StatiCa Connection.

1 New project

Launch IDEA StatiCa and select the Connection application.

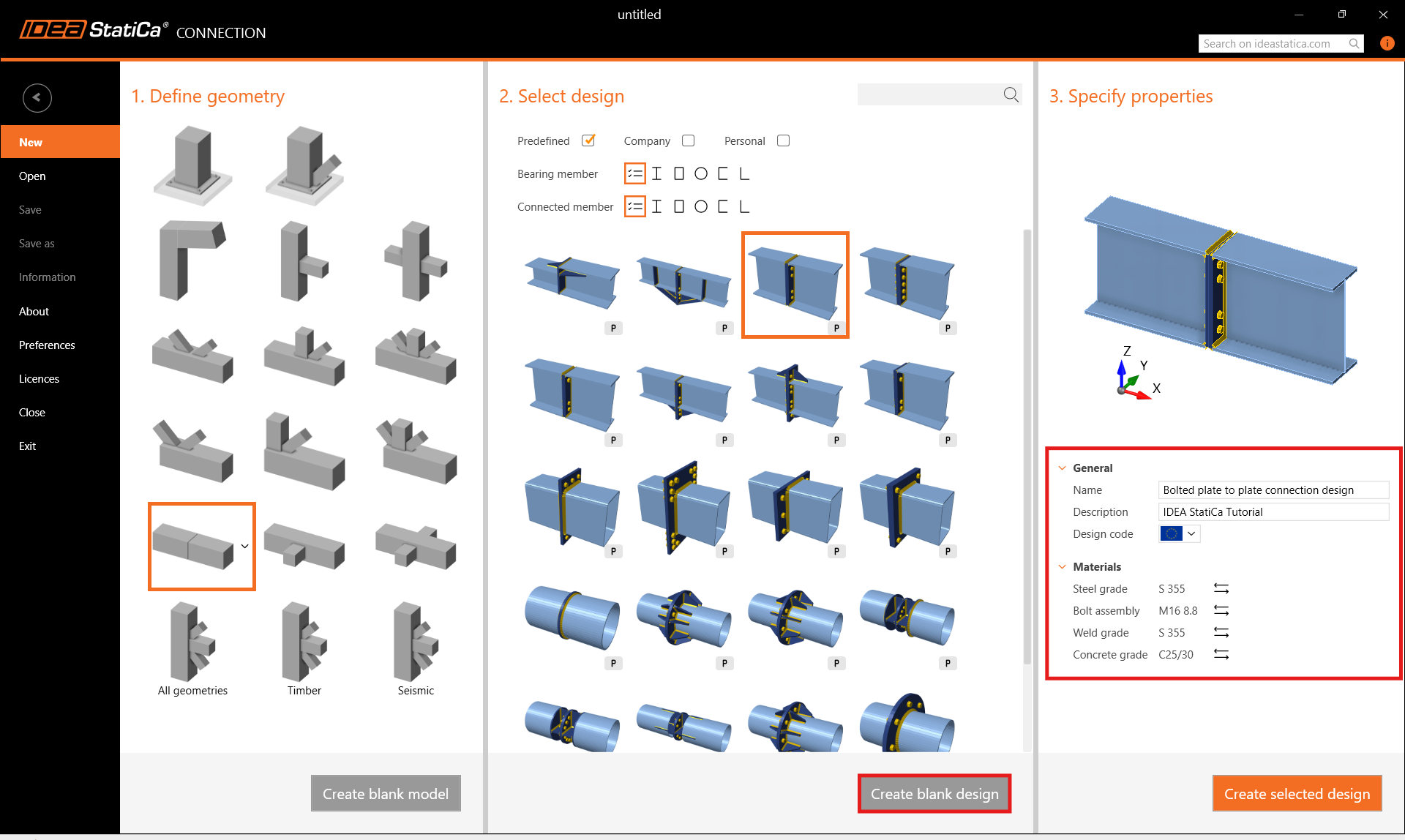

Create a new project by selecting the starting template closest to the desired design. Fill the name and choose Eurocode as the design code and the steel grade as S235.

Design of bolted plate to plate connection (EN)

2 Geometry

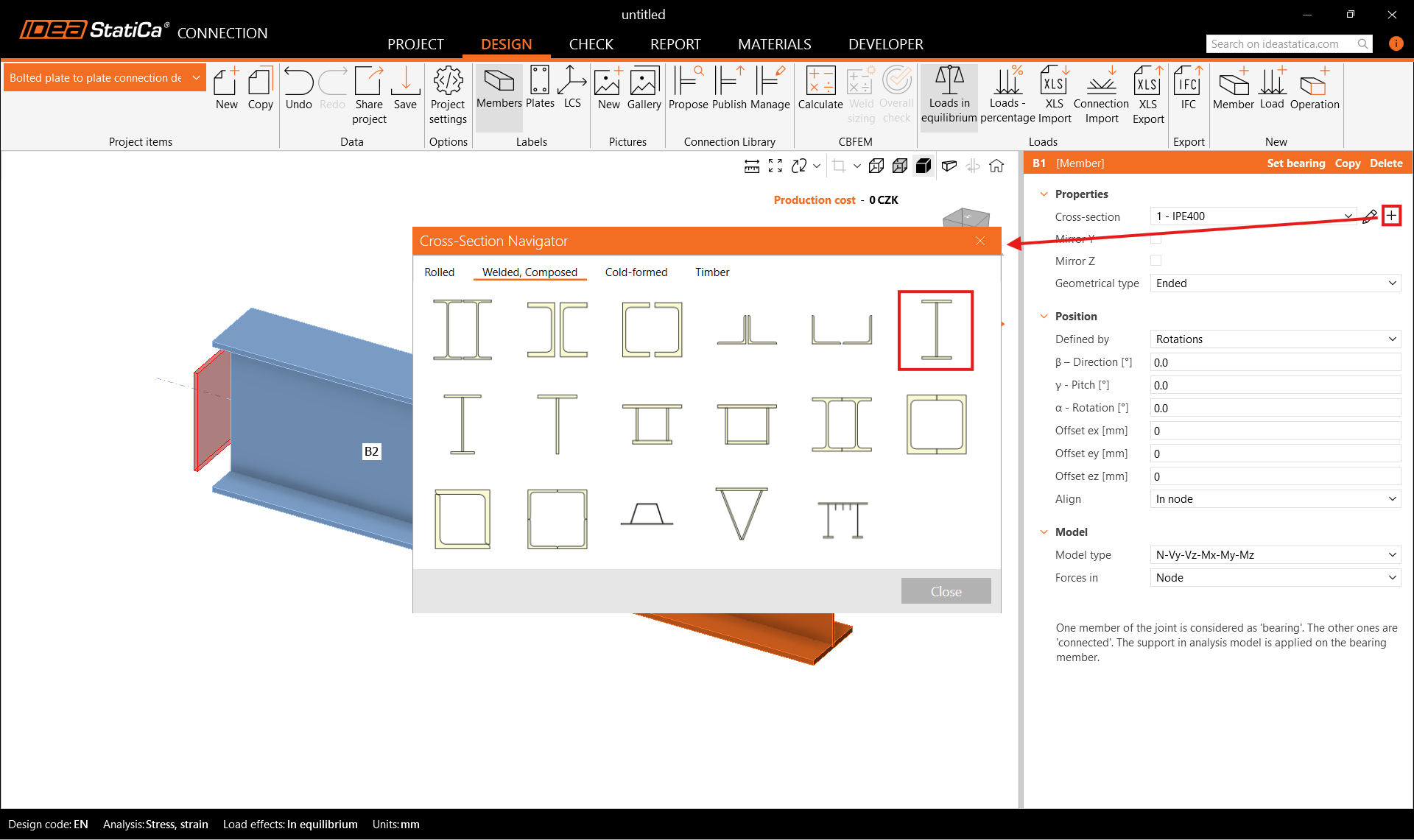

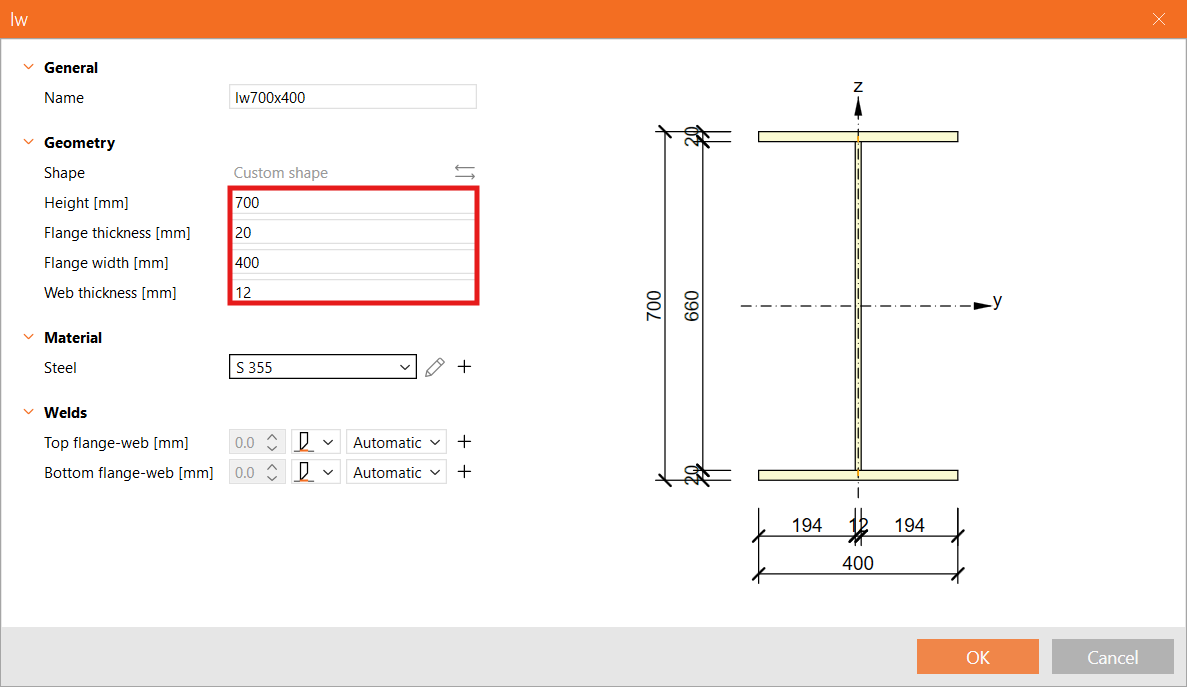

Two beams were automatically added. Change the cross-section of member B1 to a welded I section and define the cross-section dimensions (height, flange thickness and width and thickness of the web).

Design of bolted plate to plate connection (EN)
Design of bolted plate to plate connection (EN)

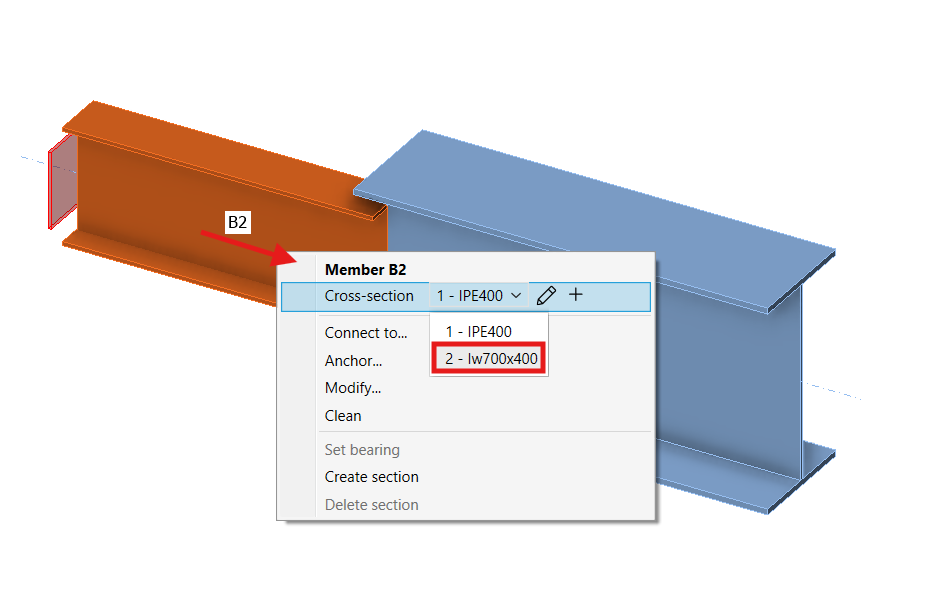

Assign the same cross-section to member B2. You can use the drop-down menu.

Design of bolted plate to plate connection (EN)

3 Load effects

One load effect was automatically generated. Change the values of internal forces in the chart.

Design of bolted plate to plate connection (EN)

4 Design

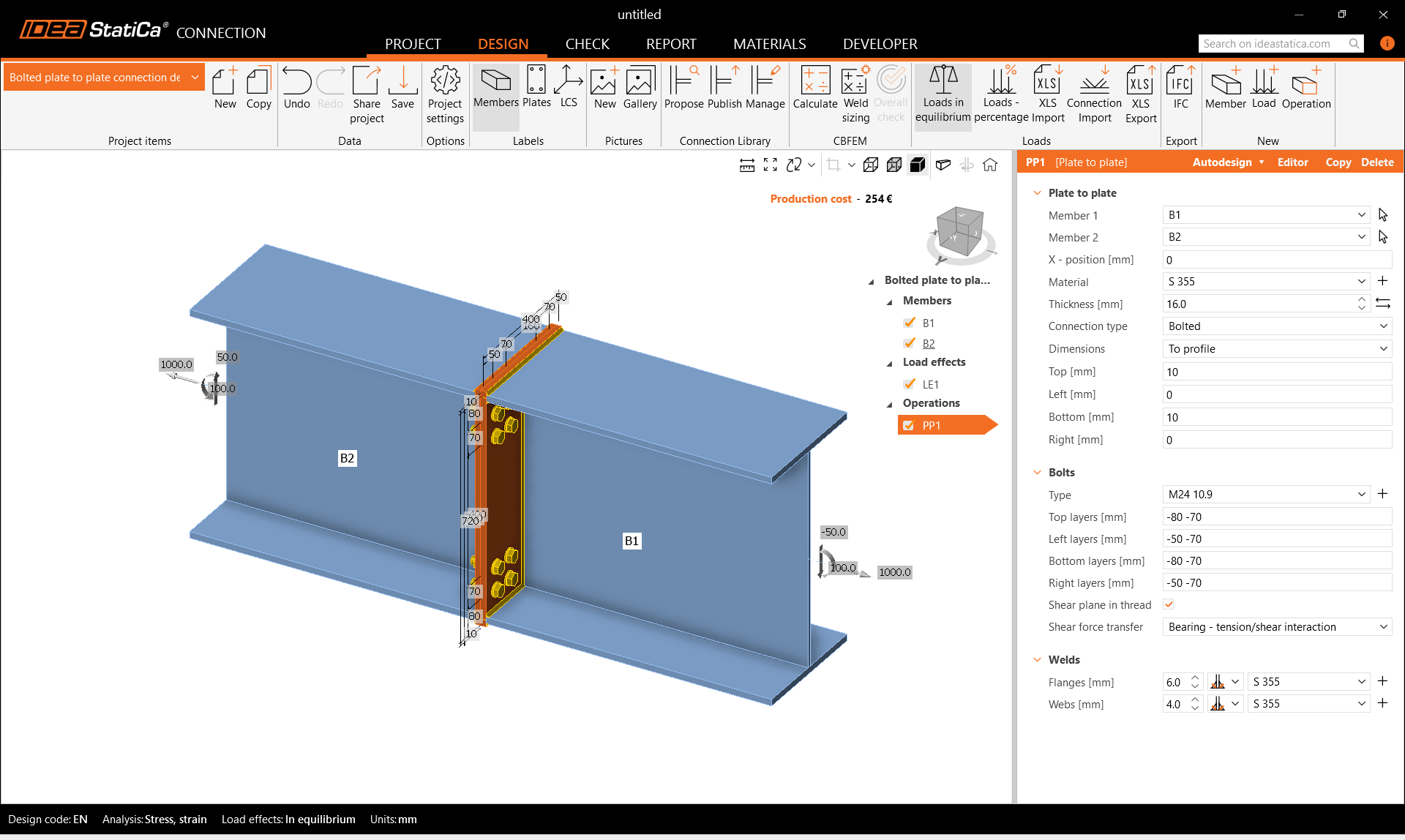

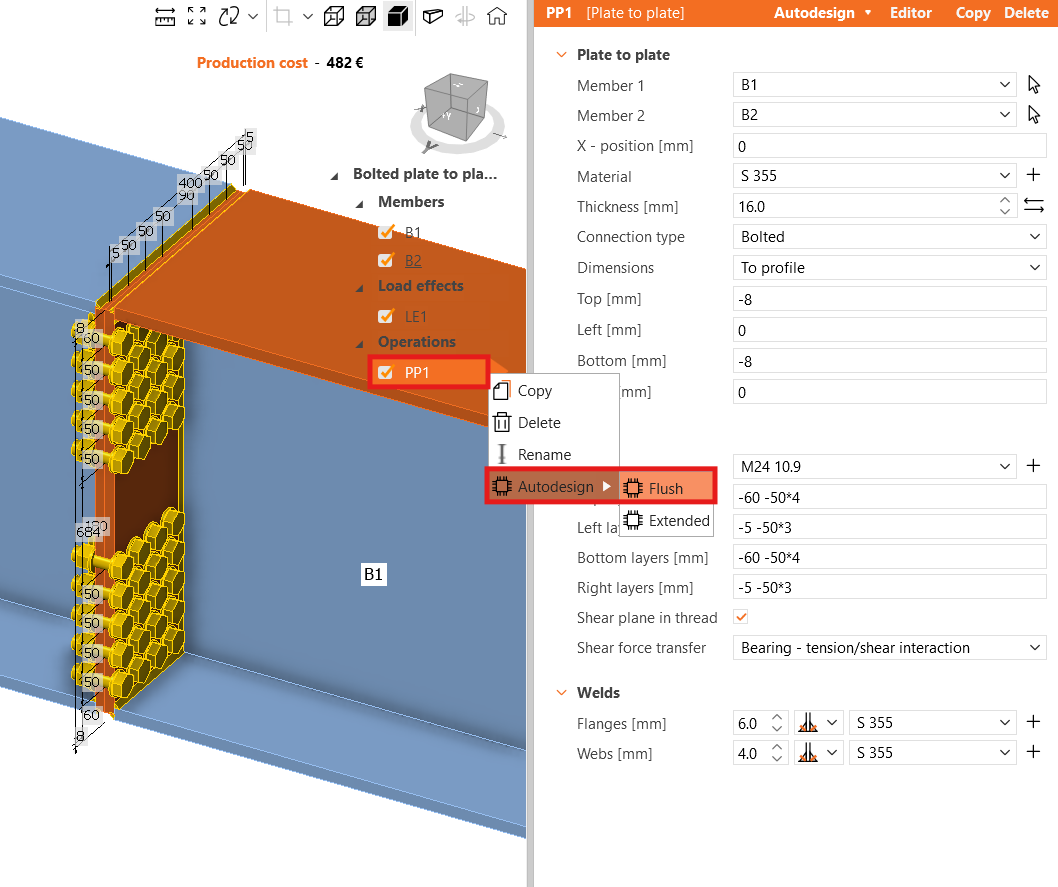

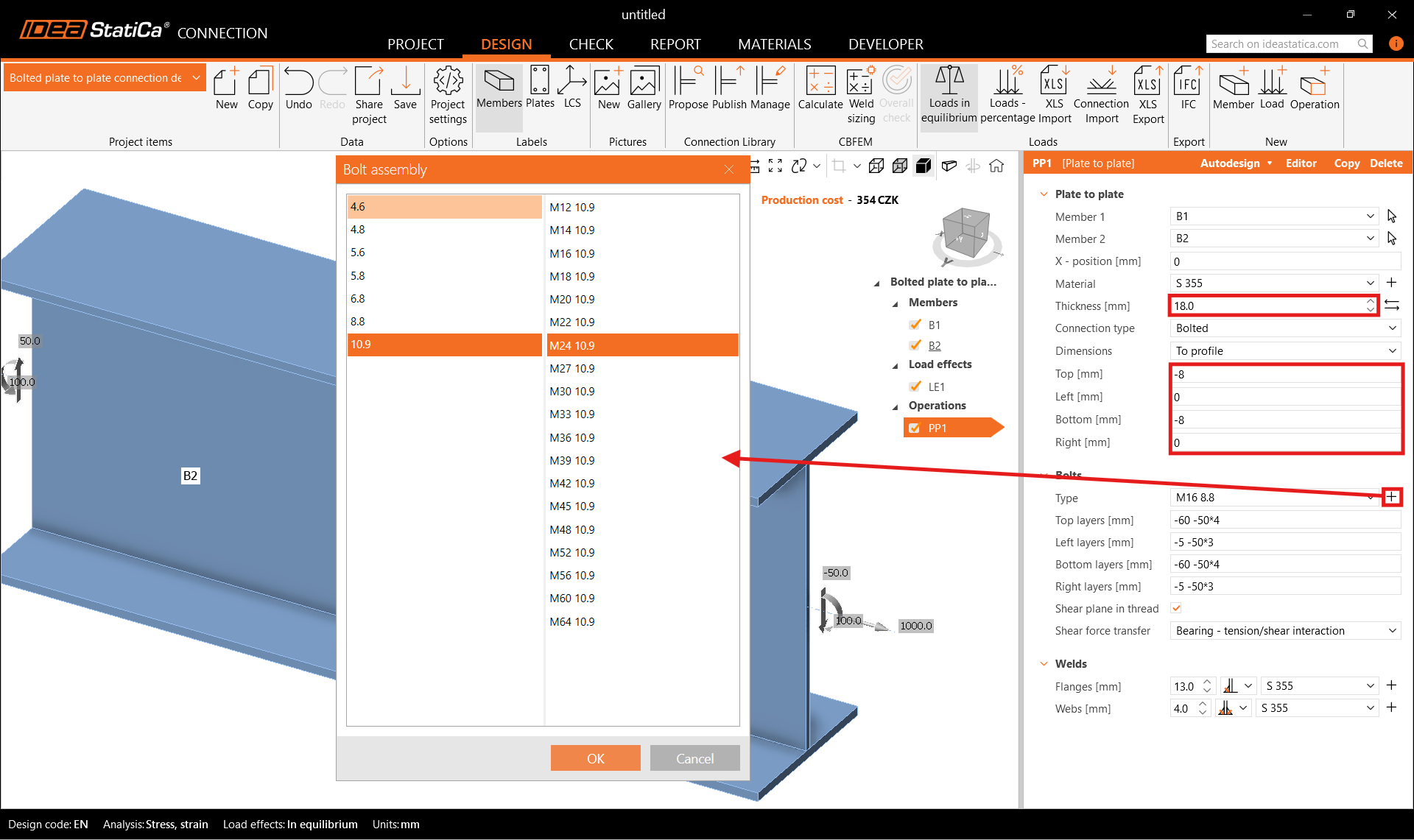

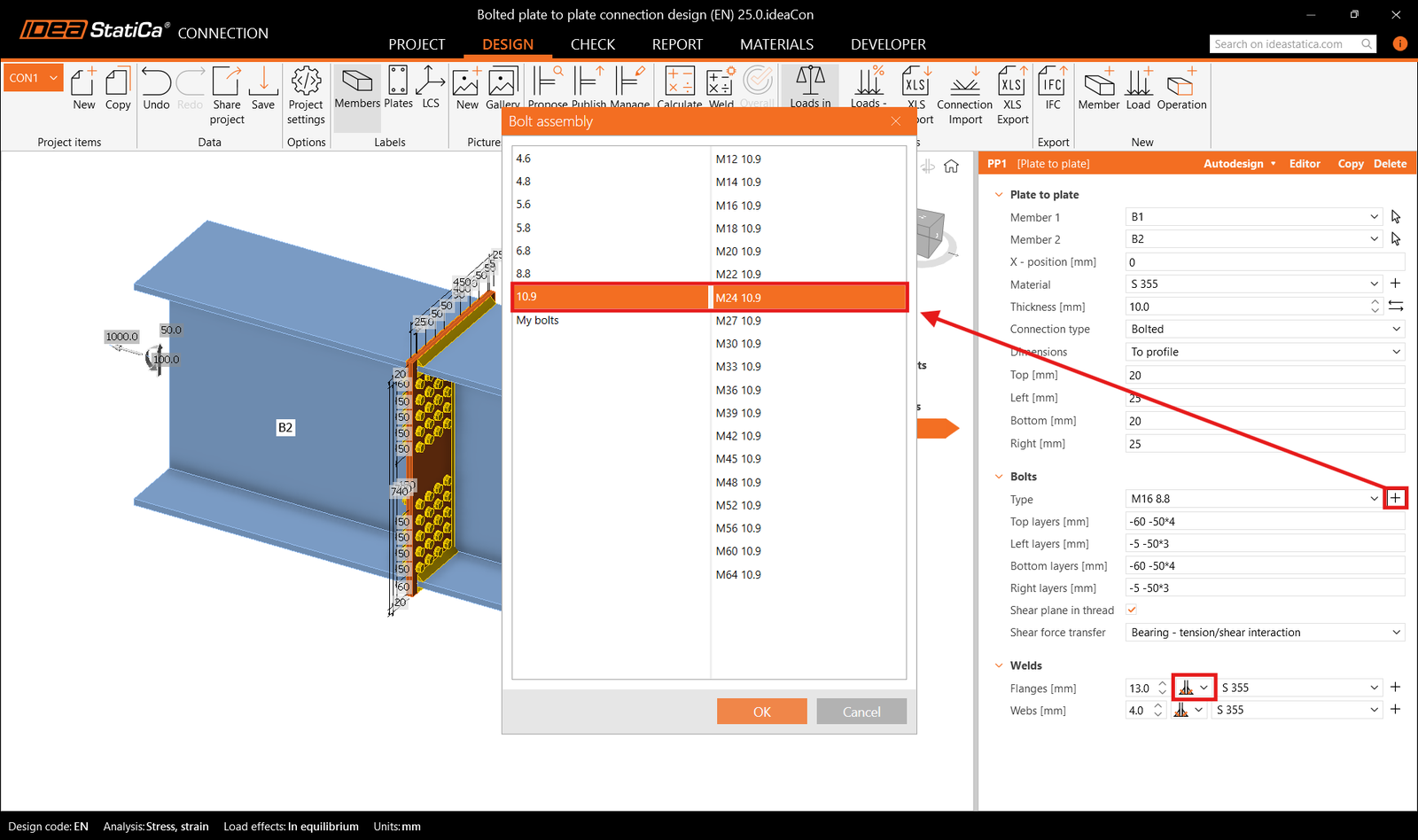

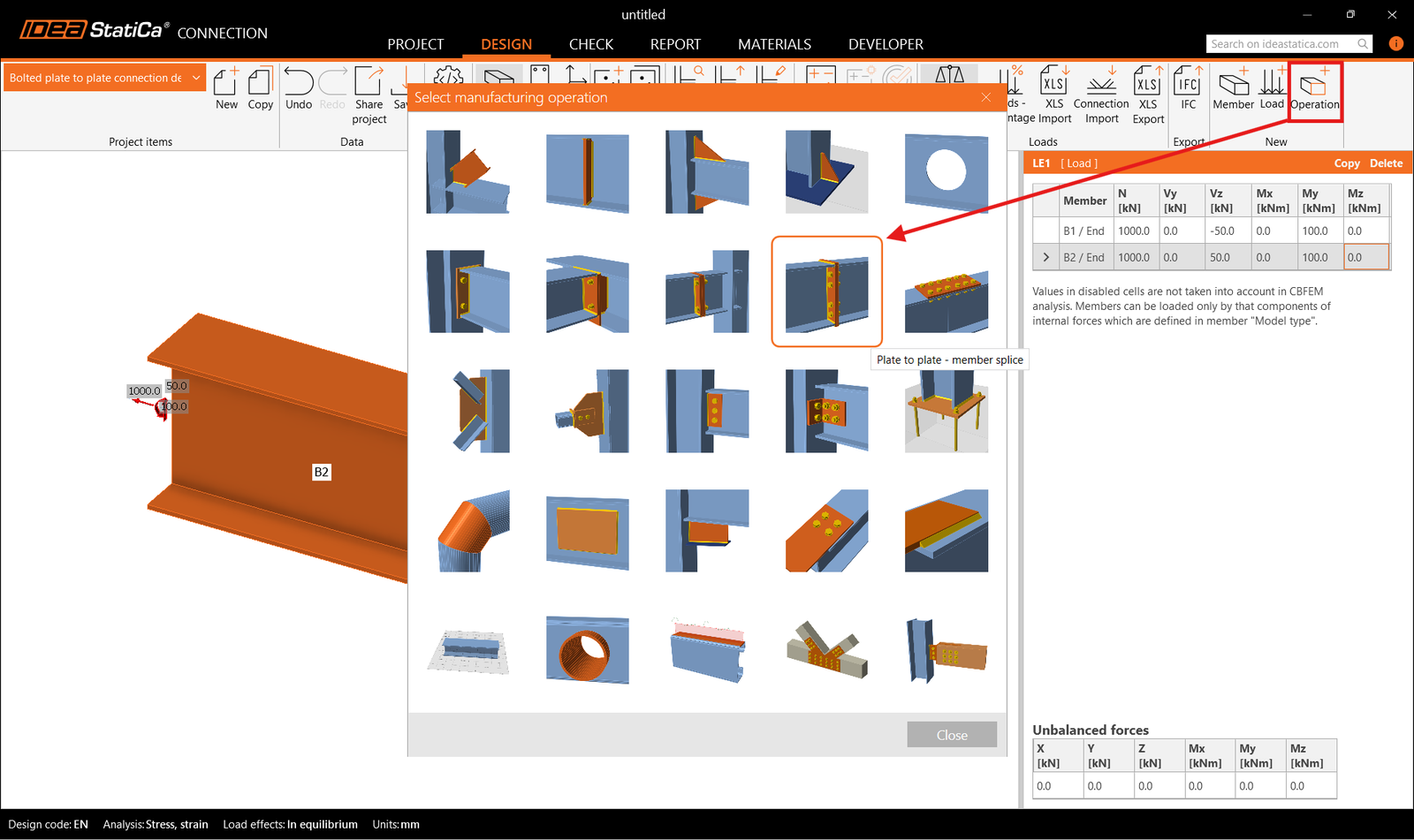

You can see that one manufacturing operation (Plate to plate) was automatically created by the template and you can simply modify it: change the bolts and welds properties.

Design of bolted plate to plate connection (EN)
Design of bolted plate to plate connection (EN)

5 Check

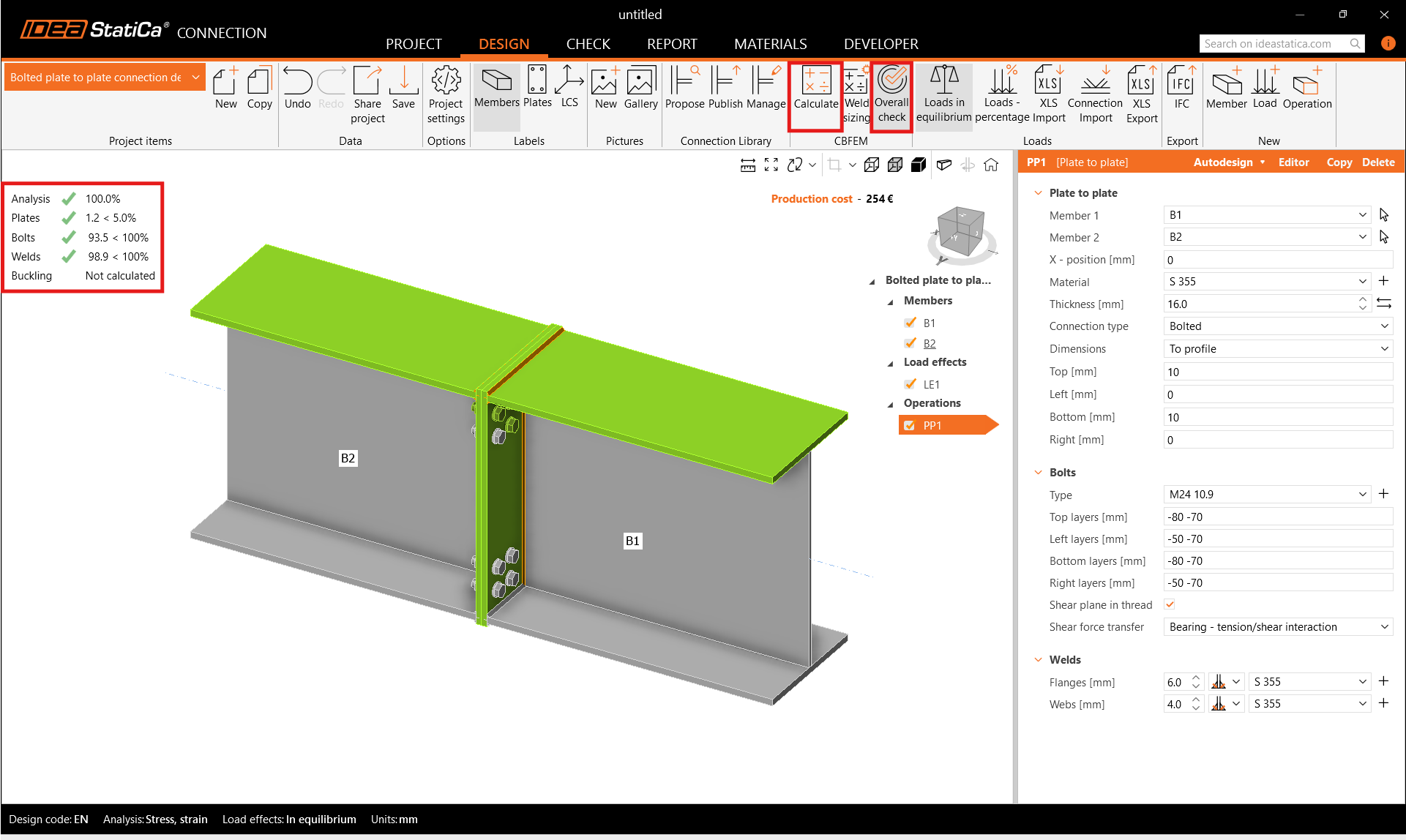

Start the analysis based on CBFEM by clicking Calculate in the ribbon. The analysis model is automatically generated, the calculation is performed and you can directly see the overall check results in the top-left corner of the scene.

Design of bolted plate to plate connection (EN)

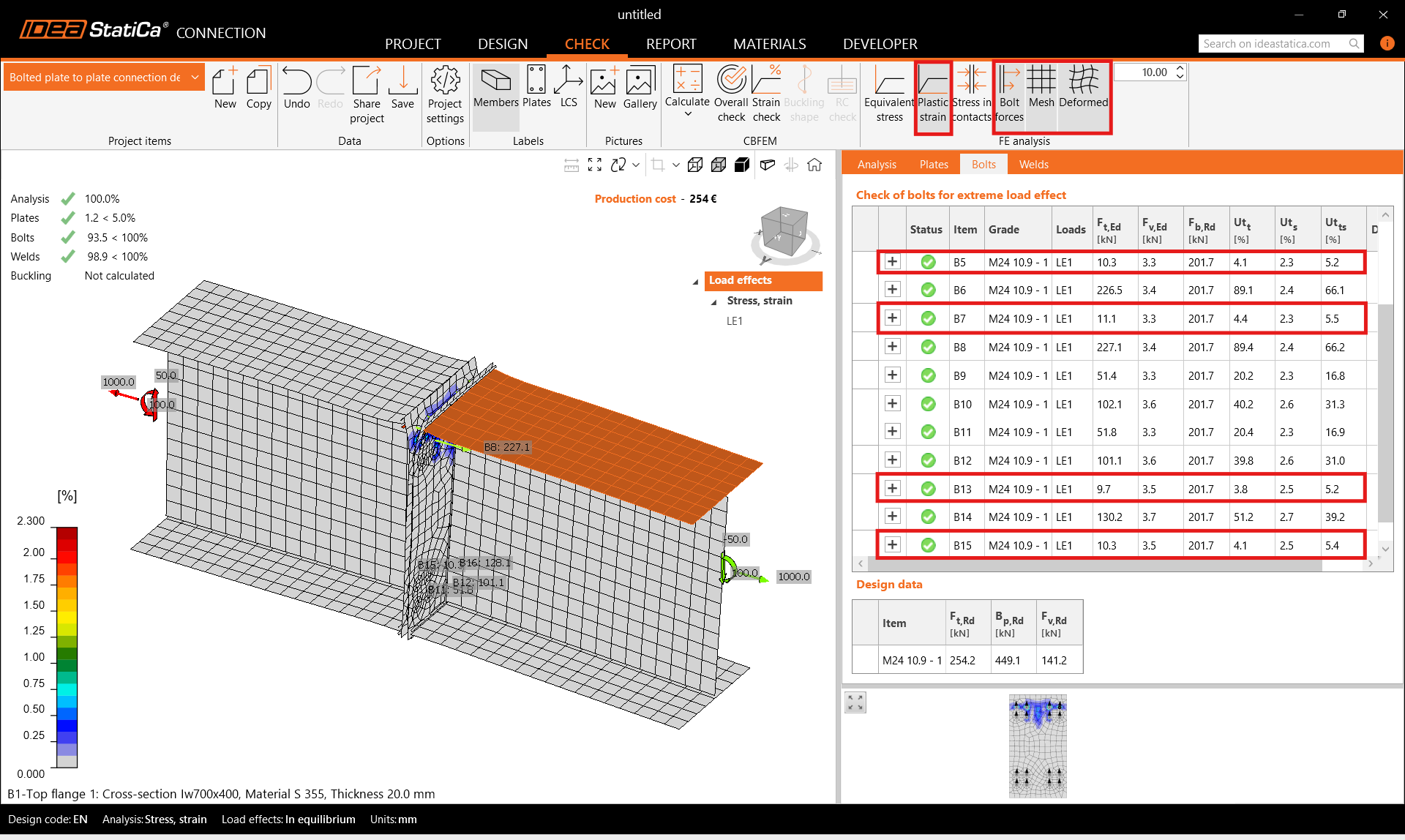

More detailed results can be displayed in the Check tab: activate the Strain check, Bolt forces, Mesh and Deformed shape of the connection in the ribbon to get a full picture of what is happening in the joint.

Individual results can be checked in the appropriate tables. E.g., open the Bolts tab to see the utilization of each bolt. You can see that some bolts are almost unused and may be removed to optimize the design.

Design of bolted plate to plate connection (EN)

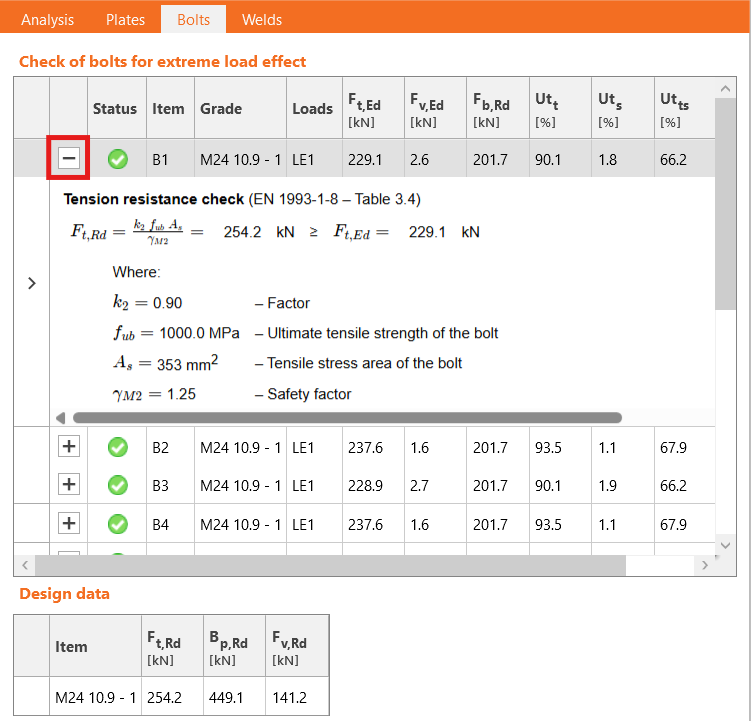

You can also take a look at the bolt check equations in the expanded menu.

Design of bolted plate to plate connection (EN)

6 Optimization

IDEA StatiCa Connection allows easy optimization of the design.

We pointed out that the utilization of some bolts is close to zero. You can remove them and make the design more economical.

Design of bolted plate to plate connection (EN)

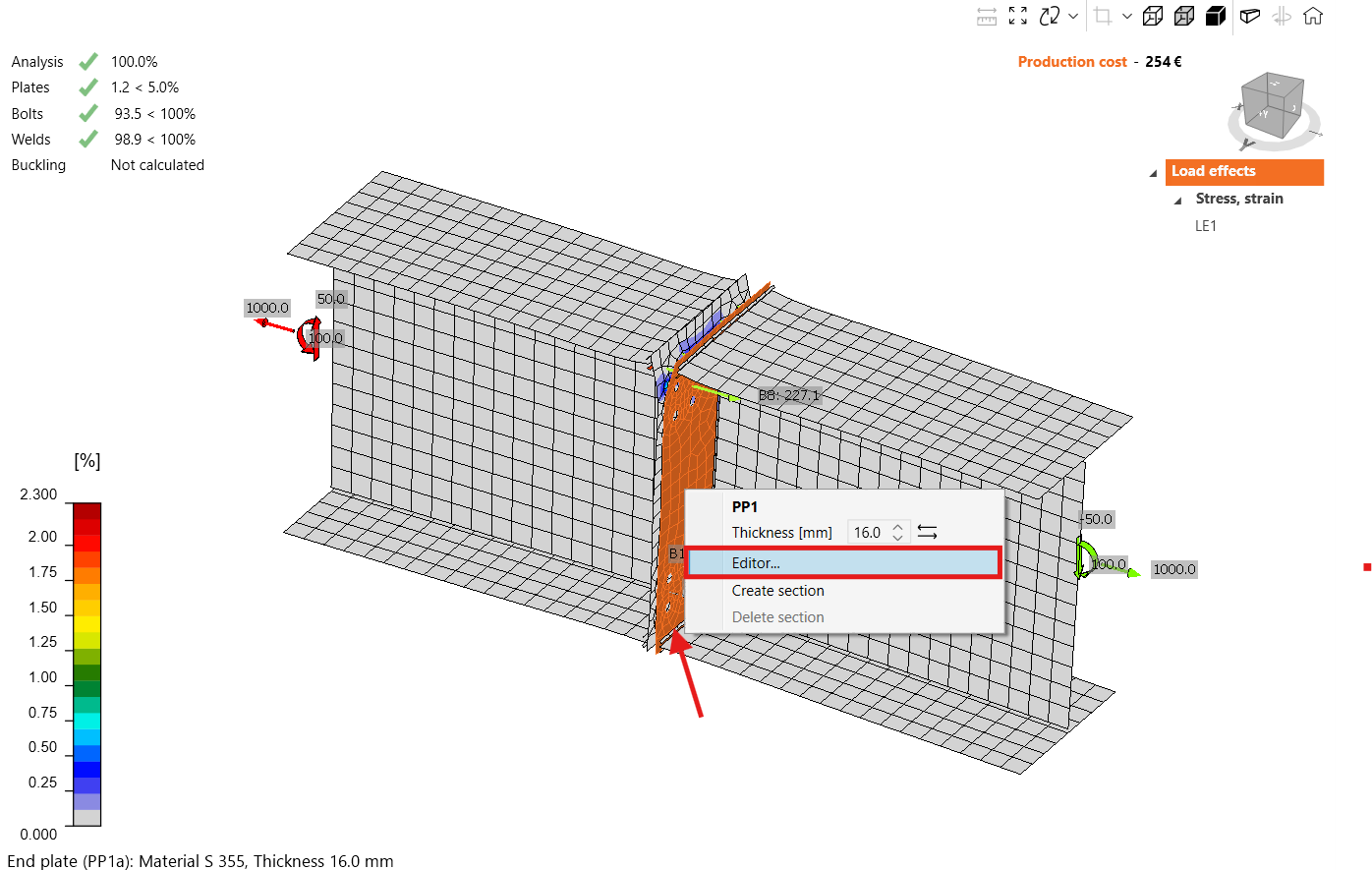

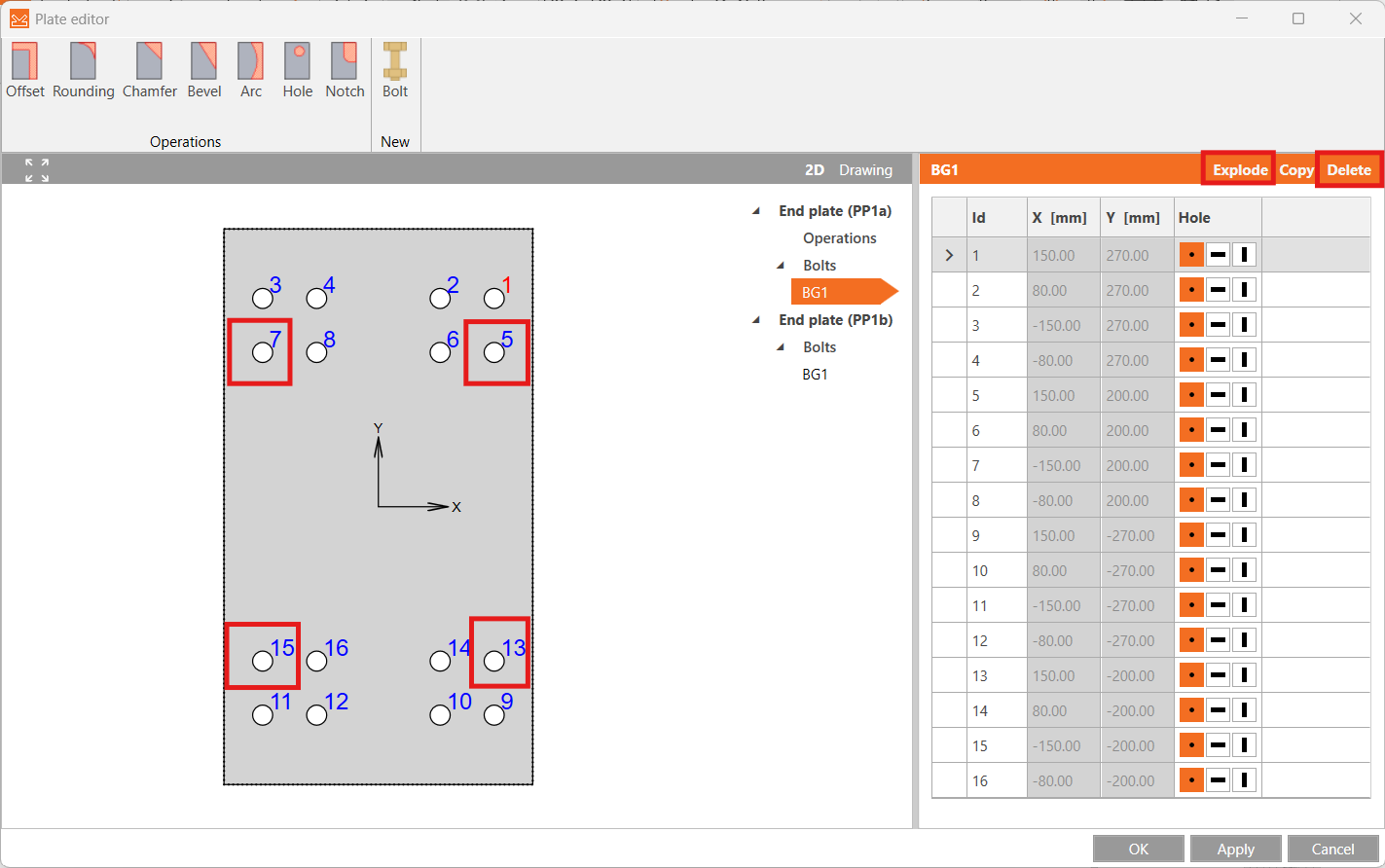

Right-click on the connecting plate and open the Editor. There, Explode the bolts table and delete bolts 5, 7, 9, 11, 17, 19, 21 and 23.

Design of bolted plate to plate connection (EN)

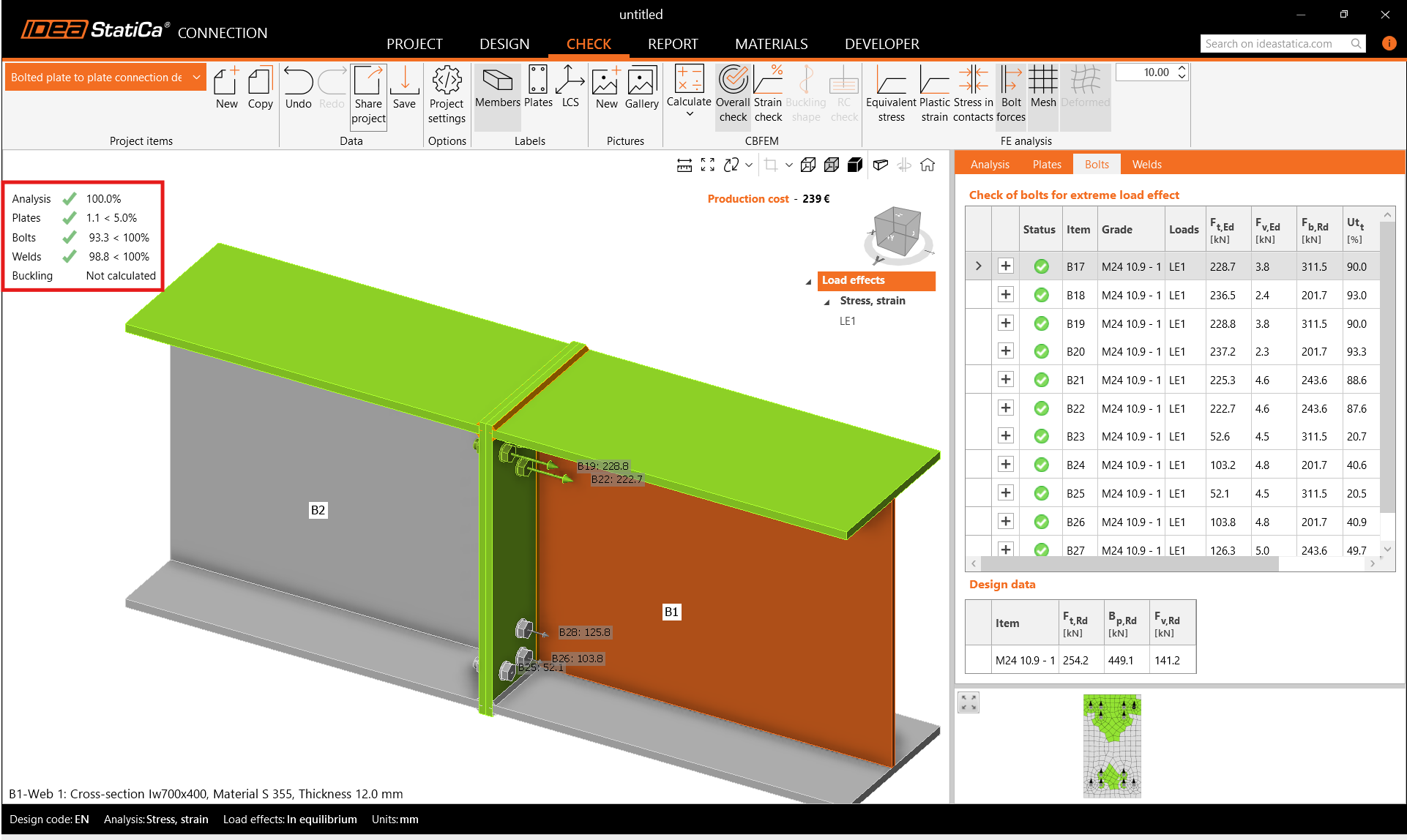

Re-run the Calculation and check the updated results. The new design passed all the checks and you saved 1/3 of bolts.

Design of bolted plate to plate connection (EN)

7 Report

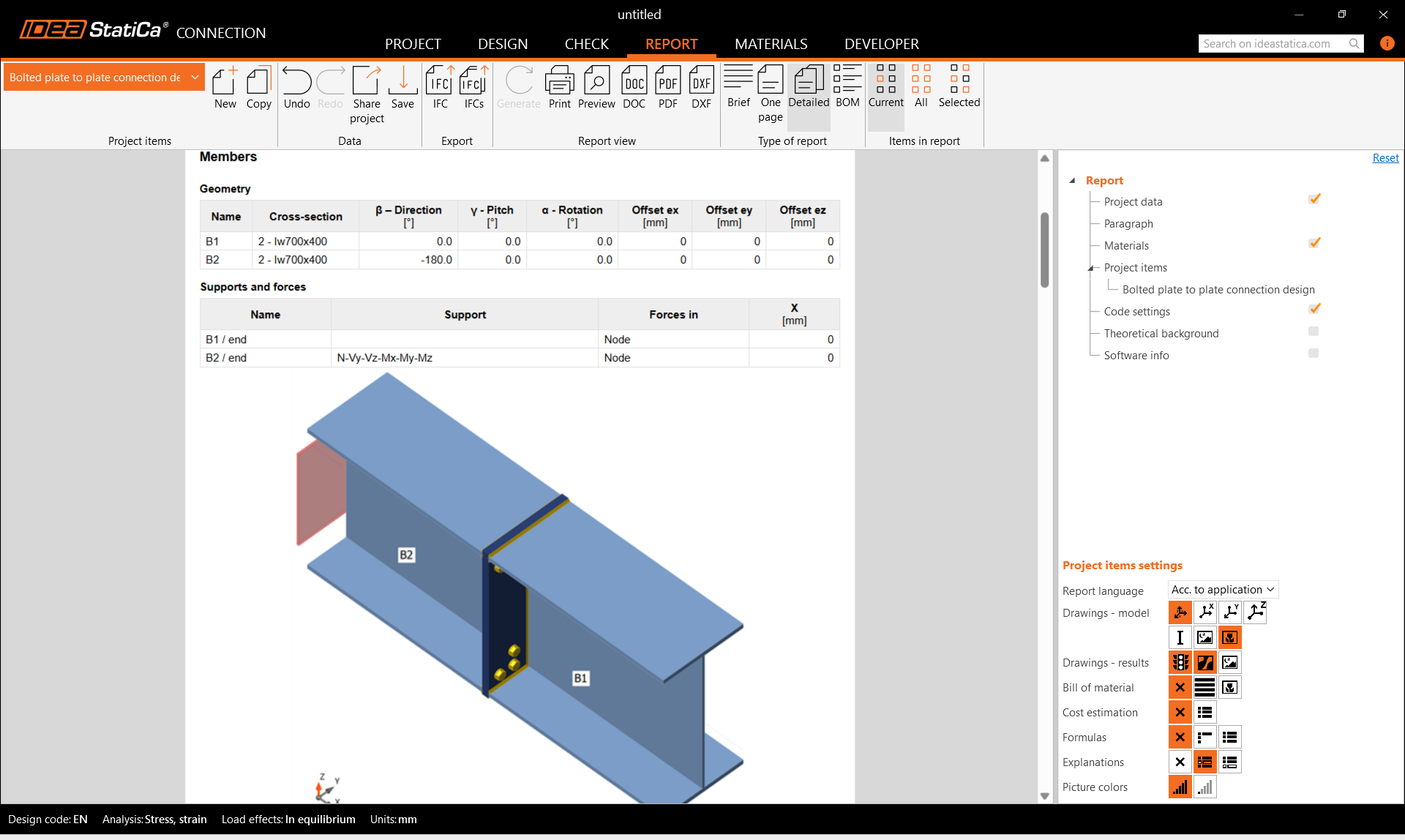

At last, you can review the Report. IDEA StatiCa offers a fully customizable report to print out or save in an editable format.

Design of bolted plate to plate connection (EN)
Design of bolted plate to plate connection (EN)

You have designed, optimized and code-checked a bolted plate to plate connection according to Eurocode (EN).

Sample files

Open in Viewer Download
