Crack Width - Tension Chord Model - Verification

Introduction

The strength of the Tension Chord Model lies in its balanced combination of physical realism and computational efficiency. The model preserves the fundamental mechanics governing cracking behavior, namely bond action, strain incompatibility between reinforcement and concrete, and equilibrium, while remaining well-suited for practical engineering workflows and parametric studies.

Axial force transfer between reinforcement and concrete is achieved through a bond mechanism that operates via shear interaction, inherently allowing slip and therefore resulting in non-compatible deformations of the two components.

The model further captures the distinct behavior of weakly and strongly reinforced concrete through the formulation of the average strain, which plays a governing role in evaluating crack spacing and crack width.

The IDEA StatiCa model for SLS considers:

• Bond element between rebars and concrete
• Incompatibility of strain fields for rebars and concrete
• The average strain -> the tension stiffening

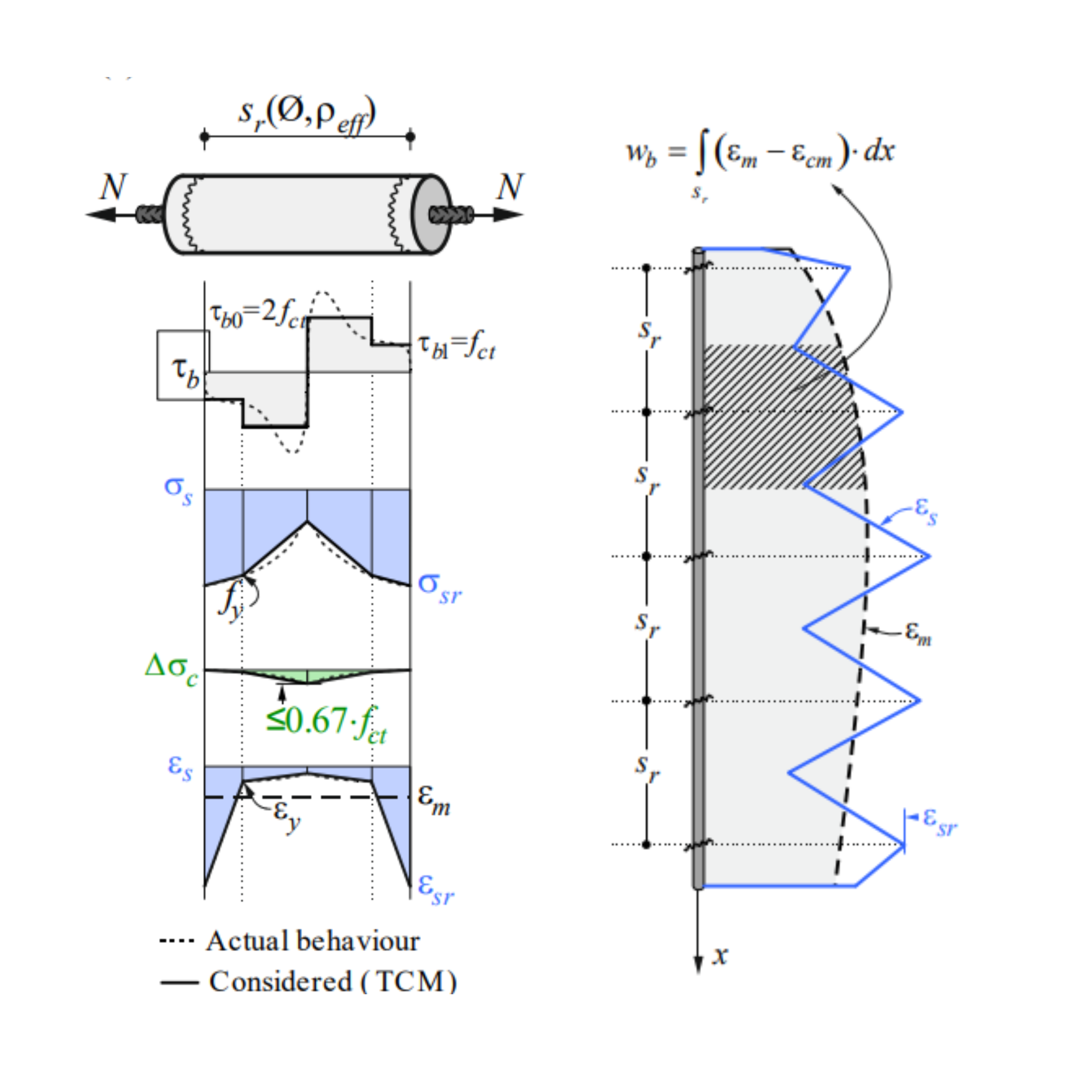

01) Tension Chord Model - mechanical model and crack width calculation

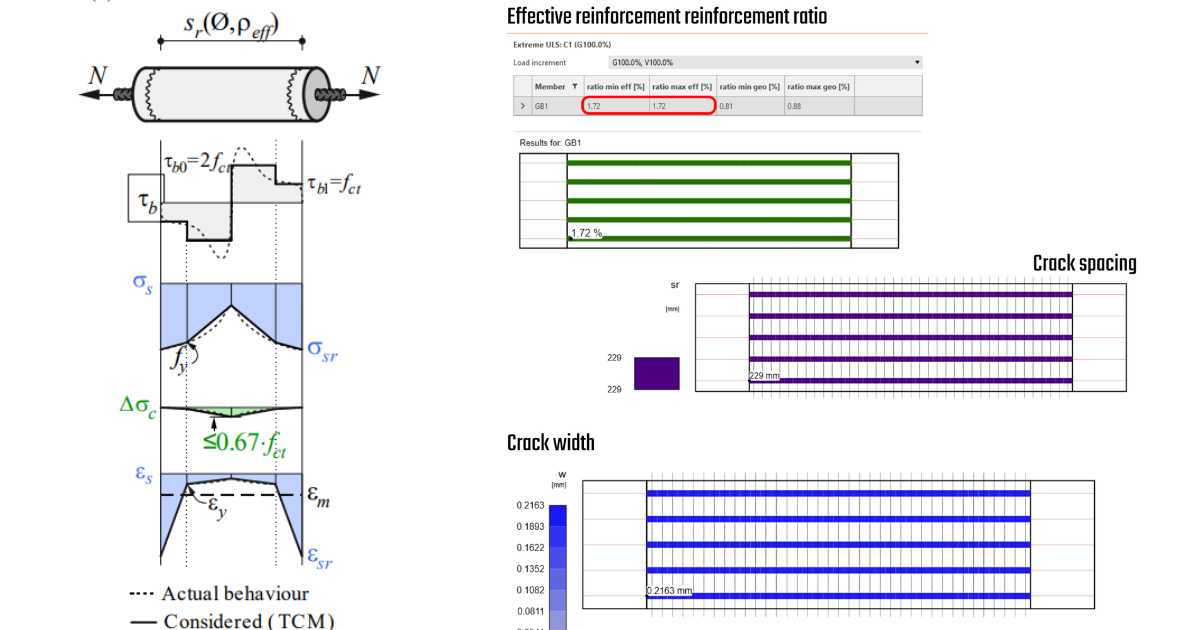

TCM-main parameters

The calculation of crack width is a multilevel process that occurs in the background of IDEA StatiCa Detail. The three principal parameters control the crack width:

• Effective reinforcement ratio
• Crack spacing
• Average strain

02) Equations underlying the workflow for TCM - crack width

The material diagram is adapted based on the reinforcement ratio across the whole model. It means that for different reinforcement ratios, a varying material model for rebar is employed. In our scenario, the reinforcement ratio remains constant due to the uniform redistribution of rebars and the uniform diameters.

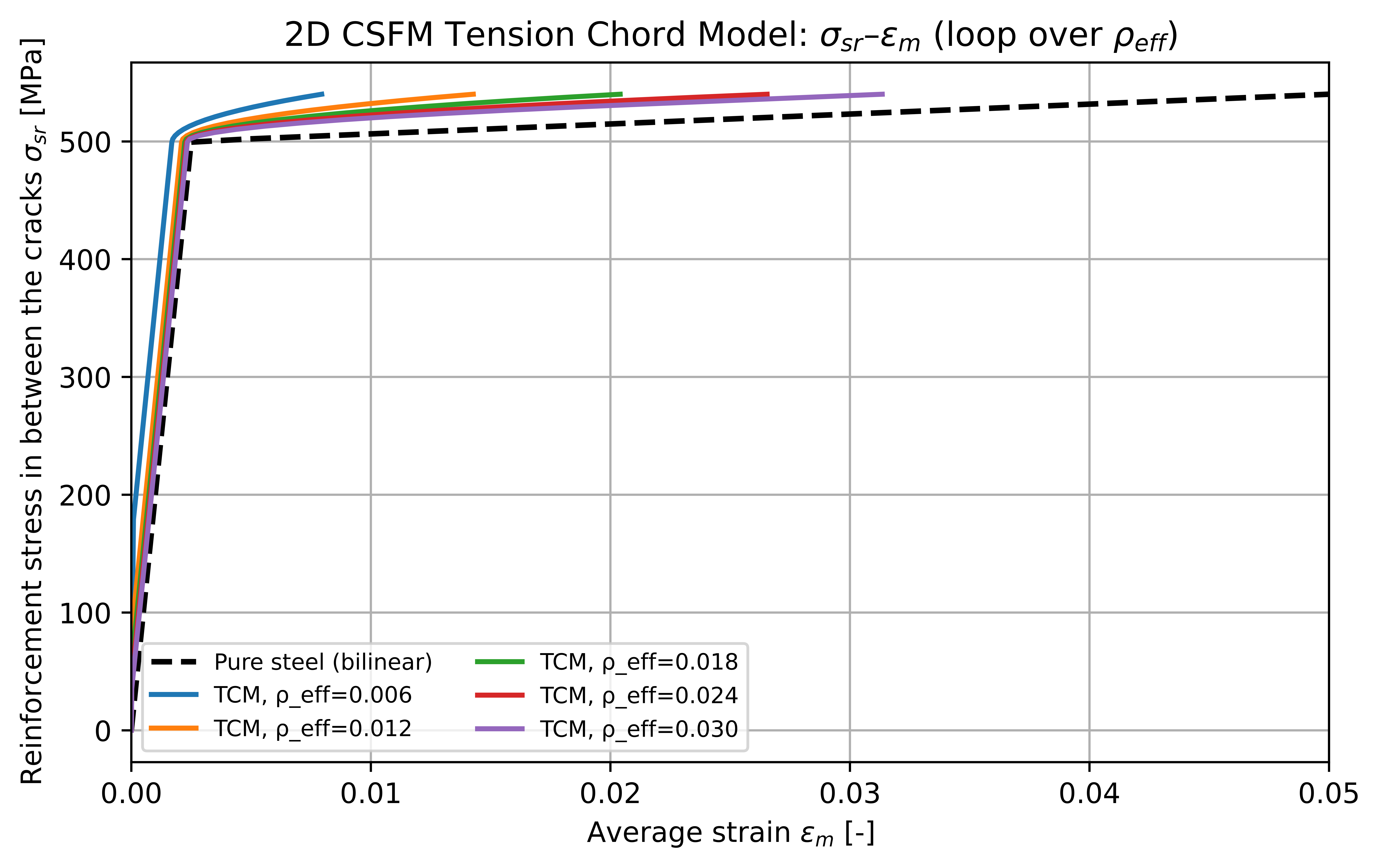

03) Material diagram change for different reinforcement ratios

The relationship between crack spacing and reinforcement ratio exhibits a nonlinear tendency.

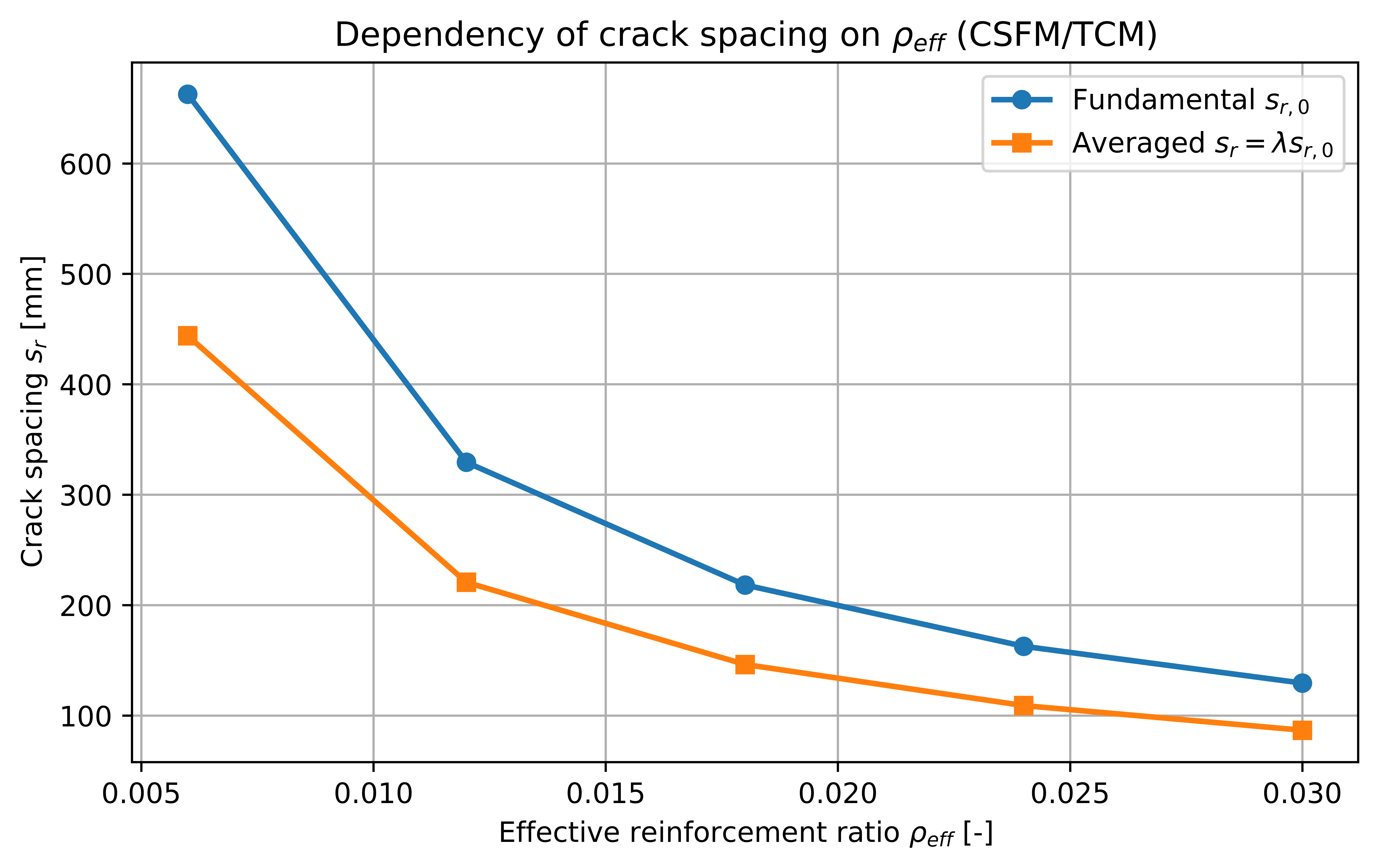

04) Crack spacing dependency relation against the effective reinforcement ratio

Model description

The testing model, meticulously developed for evaluation purposes, is constructed utilizing a beam featuring a rectangular cross-section measuring 250 x 1000 mm and a length of 4000 mm. This model has been subjected to an axial force of 500 kN. The reinforcement has been strategically arranged into five distinct layers, distributed across the height of the section, with each layer comprising two 16 mm diameter bars.

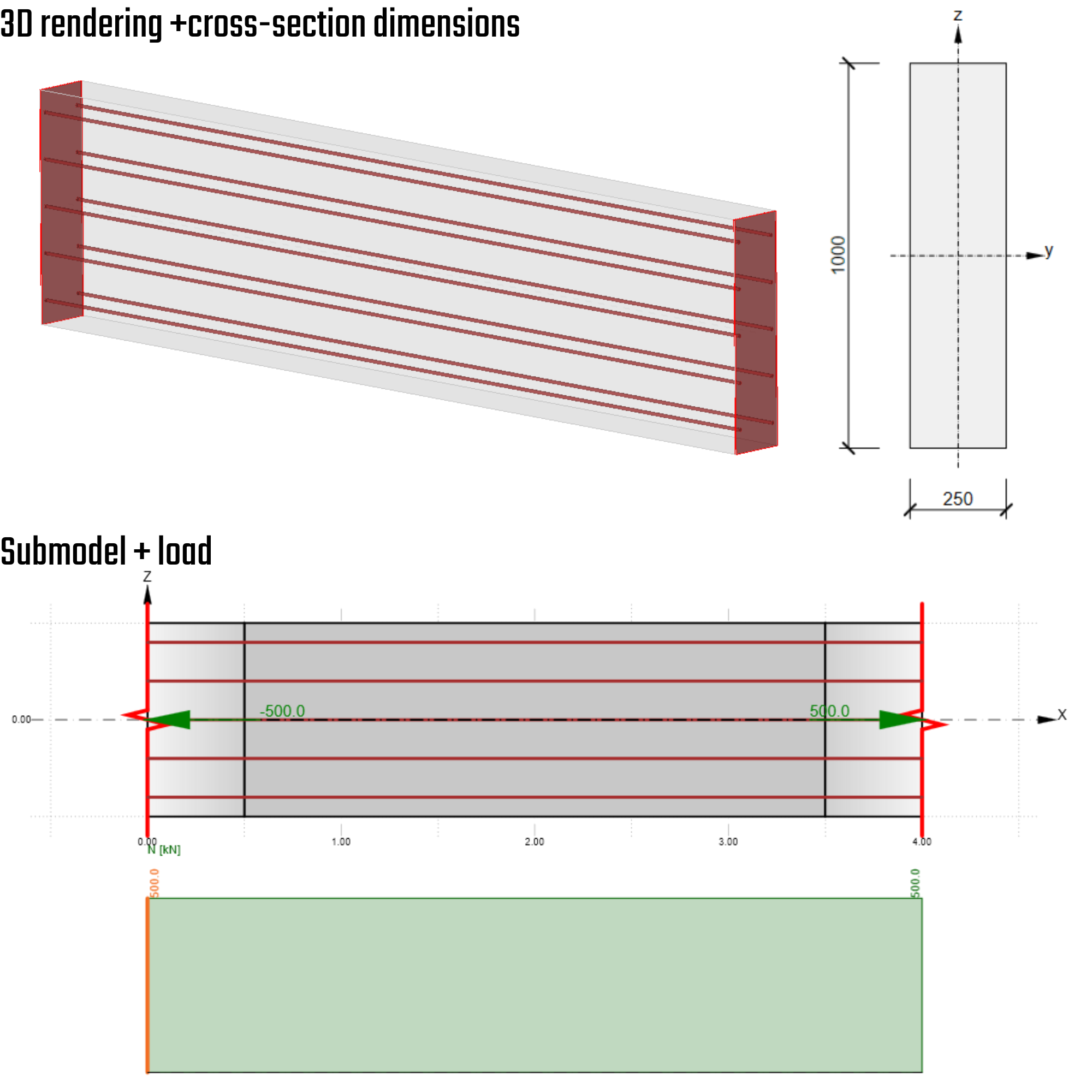

05) Model description

Outputs

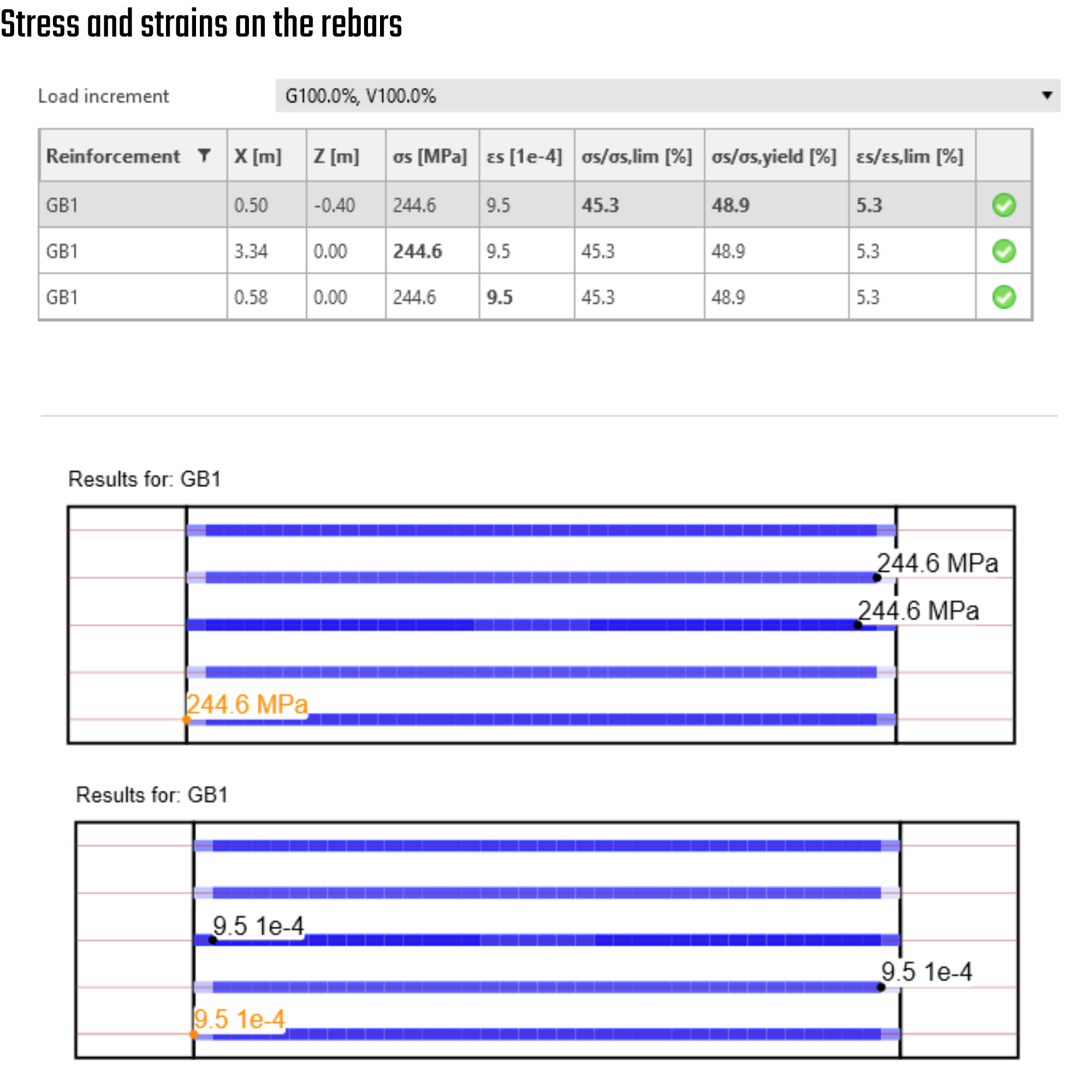

06) Maximal stress in between the cracks and average strain on rebars

The crack spacing is presented for the parameter s_r0, which represents the fundamental crack spacing without averaging. The calculation of crack width employs average strain values and the fundamental crack spacing to determine the respective crack widths.

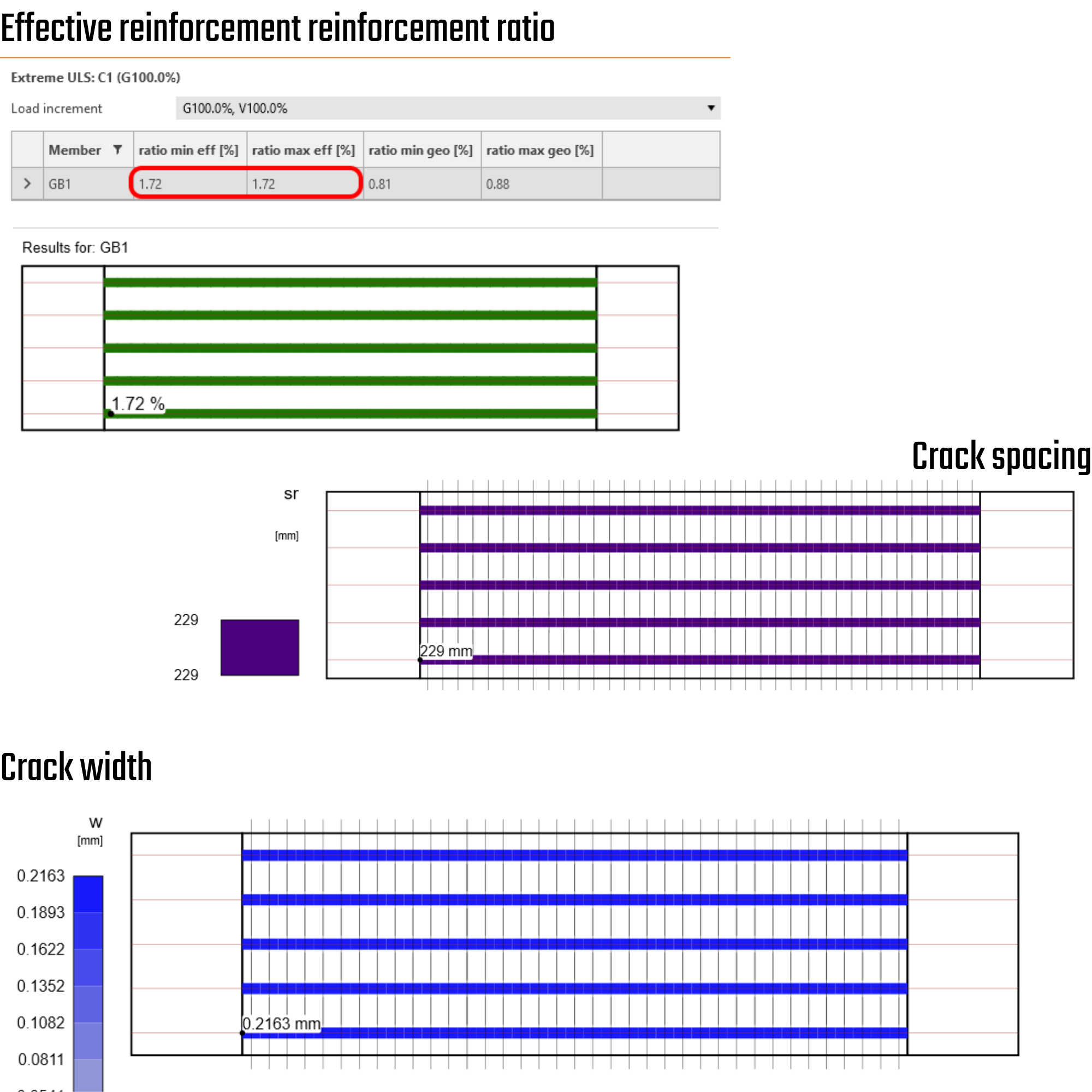

07) Reinforcement ratio, crack spacing, and crack width

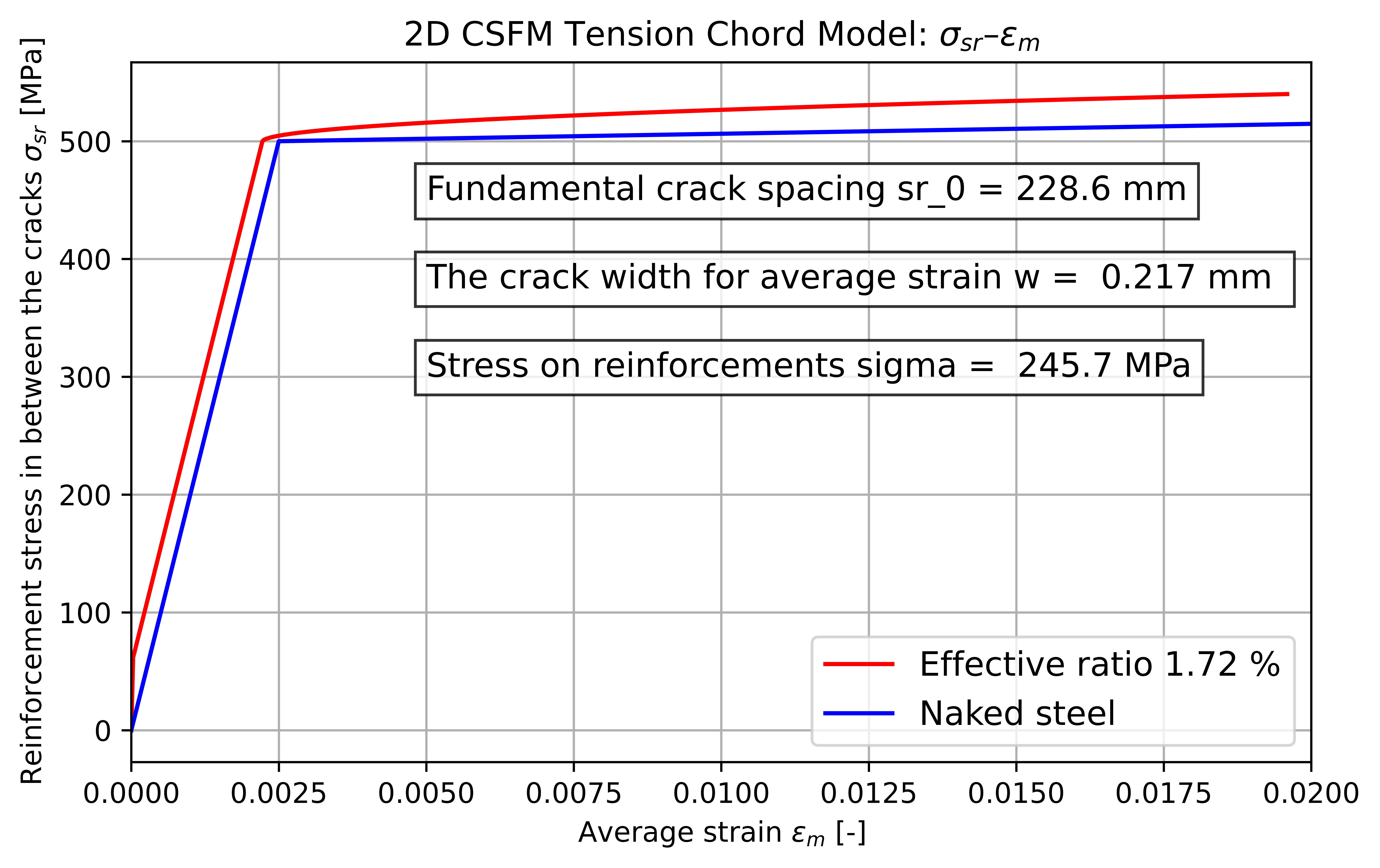

08) Tension stiffening graph for the actual model

Hand-calculation

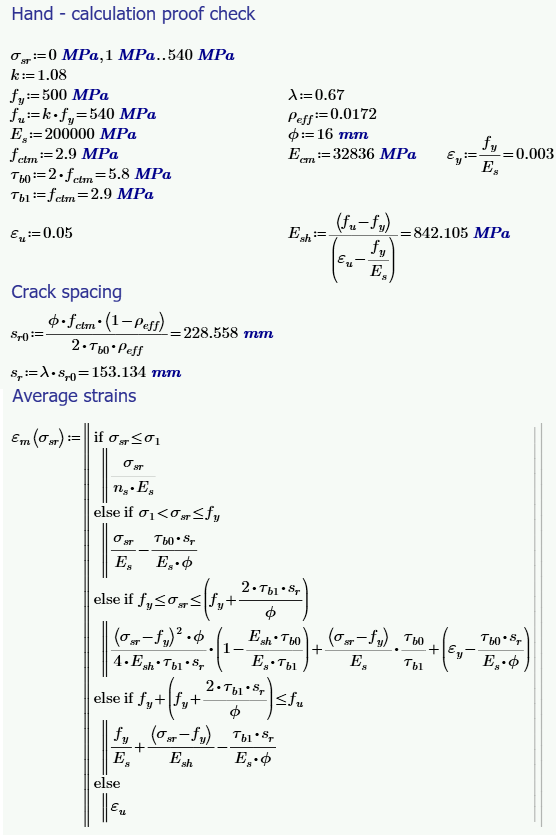

09) Inputs and average strains

The default configuration for crack width calculation excludes the contribution of the tensile strength of concrete, which diverges from findings documented and published in the literature. Incorporating the tensile contribution results in a reduction of crack width by approximately 3.1% under the current conditions. IDEA StatiCa Detail does not account for the contribution of concrete tension in between cracks for TCM. It leads to a bigger crack width and a conservative approach.

10) Crack width analytical check

Key takeaways and conclusion

The fundamental premises for the SLS model are as follows:

• Bond element between rebars and concrete
• Incompatibility of strain fields for rebars and concrete
• The average strain -> the tension stiffening

Three critical parameters influence the width of cracks:

• Effective reinforcement ratio.
• Average strain values.
• Crack spacing.

For the TCM approach, the default assumption excludes the contribution of average tensile strength to the determination of crack width. This approach deviates from established literature assumptions, resulting in a more conservative analysis. However, the contribution is minimal, approximately 3% for the current model and concrete grade C30/37.
