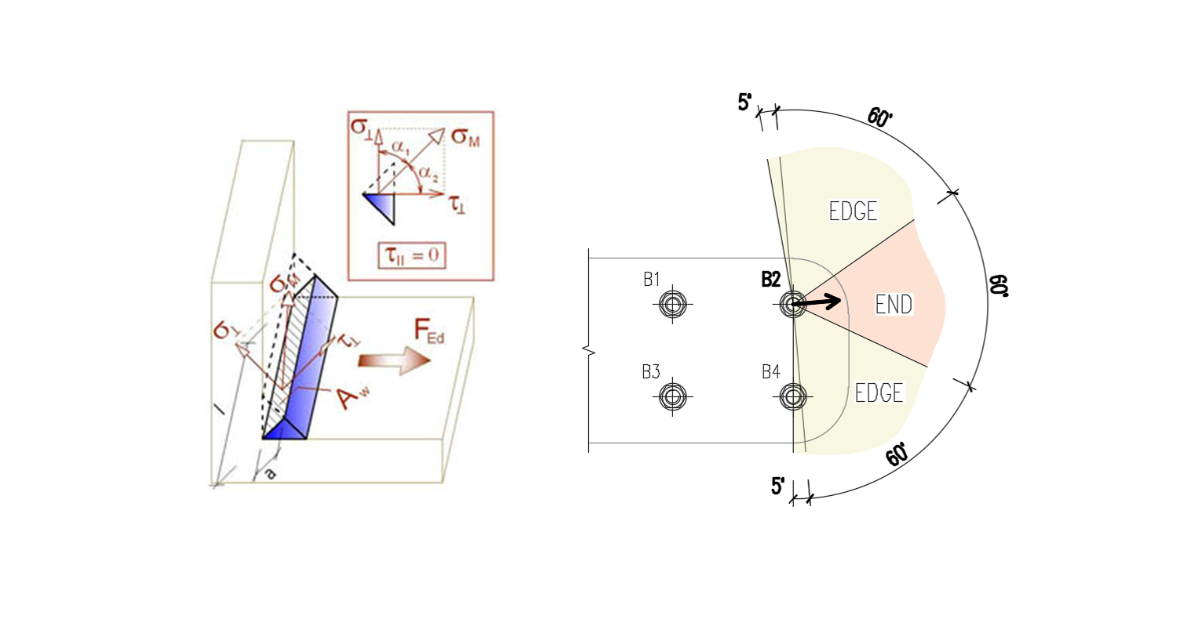

Detailing of bolt spacing and edge distance and weld minimal size. IDEA StatiCa - structural analysis software for structural design of welded and bolted steel connections.
Connection designSteelKnowledge baseConnectionCBFEM

Detailing of bolts and welds according to Chinese standard

This article is also available in
ENCZDEESFRITPTNLHUROKRPLTHTRVIZH

Bolts

The minimum allowable distance of bolts is checked according to Tableย 11.5.2.

Minimum allowable distance of bolts; d0 โ€“ bolt hole diameter


Minimum allowable distance
Bolt pitch3โ‹…d03 \cdot d_03โ‹…d0โ€‹
End distance parallel to load2โ‹…d02 \cdot d_02โ‹…d0โ€‹
Edge distance perpendicular to load (bearing bolt type)ย 1.2โ‹…d01.2 \cdot d_01.2โ‹…d0โ€‹
Edge distance perpendicular to load (preloded bolt type)1.5โ‹…d01.5 \cdot d_01.5โ‹…d0โ€‹

Welds

The minimal weld size hf is checked according to Tableย 11.3.5. The weld size is determined from weld throat thickness: hf=2โ‹…heh_f = \sqrt{2} \cdot h_ehfโ€‹=2โ€‹โ‹…heโ€‹.

Minimal weld size hf

Thickness of plate [mm]Minimum weld size [mm]
tโ‰ค6t \le 6tโ‰ค63
6<tโ‰ค126 < t \le 126<tโ‰ค125
12<tโ‰ค2012 < t \le 2012<tโ‰ค20ย 6
20<t20<t20<t8

Related articles

Fillet welds are checked according to GB 50017 - Chapter 11. The strength of butt welds is assumed the same as the base metal and is not checked. Structural design of welded steel connections and steel beam to column connection details.
