Code-check of concrete block according to Chinese standard

This article is also available in
ENCZDEESFRITPTNLHUROKRPLTHTRVIZH

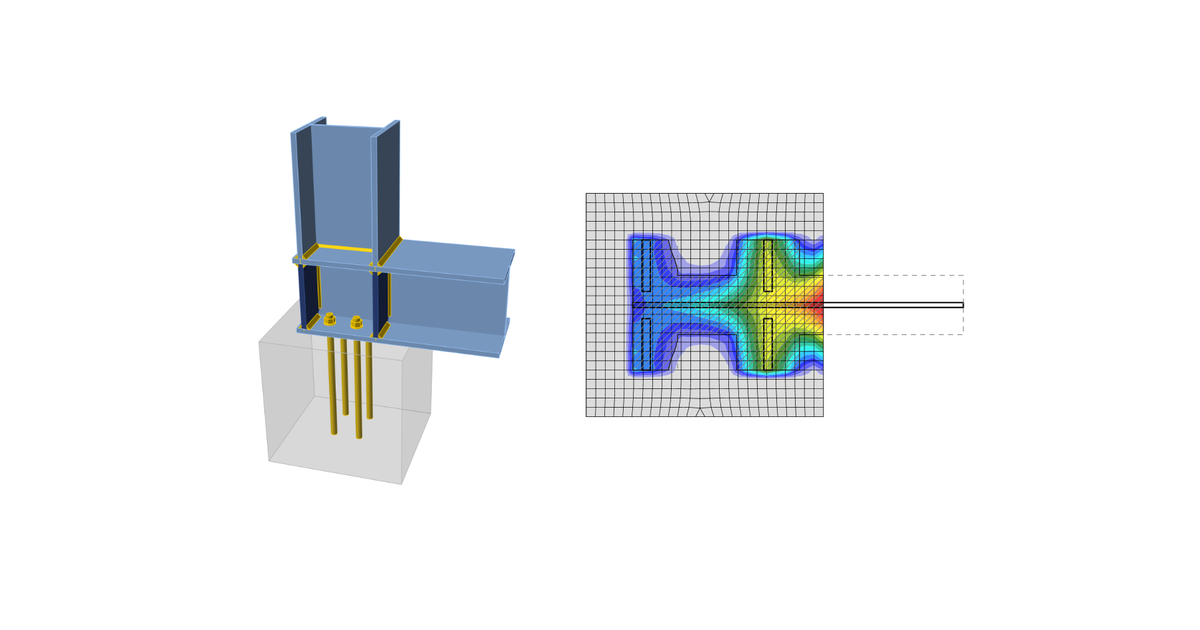

The concrete below the base plate is simulated by Winkler subsoil with uniform stiffness, which provides the contact stresses. The average stress at the bearing area used for compressive check.

Concrete in bearing

User can choose between local bearing capacity check of reinforced concrete pad (GB 50010, Equation 6.6.1-1) and plain concrete pad (GB 50010, Equation D.5.1-1).

Reinforced concrete pad

Fl≤Fc=1.35βcβlfcAlnF_l \le F_c = 1.35 \beta_c \beta_l f_c A_{ln}Fl​≤Fc​=1.35βc​βl​fc​Aln​

Plain concrete pad

Fl≤Fc=ωβlfccAlF_l \le F_c = \omega \beta_l f_{cc} A_lFl​≤Fc​=ωβl​fcc​Al​

where:

  • Fl – compressive force
  • Fc – compressive resistance
  • βc – strength influential coefficient of concrete; βc = 1 for concrete grade up to C50, βc = 0.8 for concrete grade C80; linear interpolation is used for concrete grade between C50 and C80
  • βl=AbAl\beta_l = \sqrt{\frac{A_b}{A_l}}βl​=Al​Ab​​​ – concentration factor
  • Ab – concrete supporting surface which is concentric to Al
  • Al – base plate area in contact with concrete surface
  • Aln – area Al with subtracted holes in base plate for anchors
  • fc – design compressive strength of concrete; GB50010, Table 4.1.4-1
  • fcc = 0.85 fc – design compressive strength of plain concrete; GB50010, Table 4.1.4-1
  • ω – compression load distribution factor; ω = 0.75 for uneven load distribution, ω = 1.0 for even load distribution

Transfer of shear

The shear action at the base plate is assumed to be transferred from the column to the concrete foundation by:

  1. Friction between base plate and concrete / grout
  2. Shear lug
  3. Anchor bolts

Anchors

The tensile forces in anchors include prying forces and are determined by finite element analysis.

Anchors are not checked in the software.
