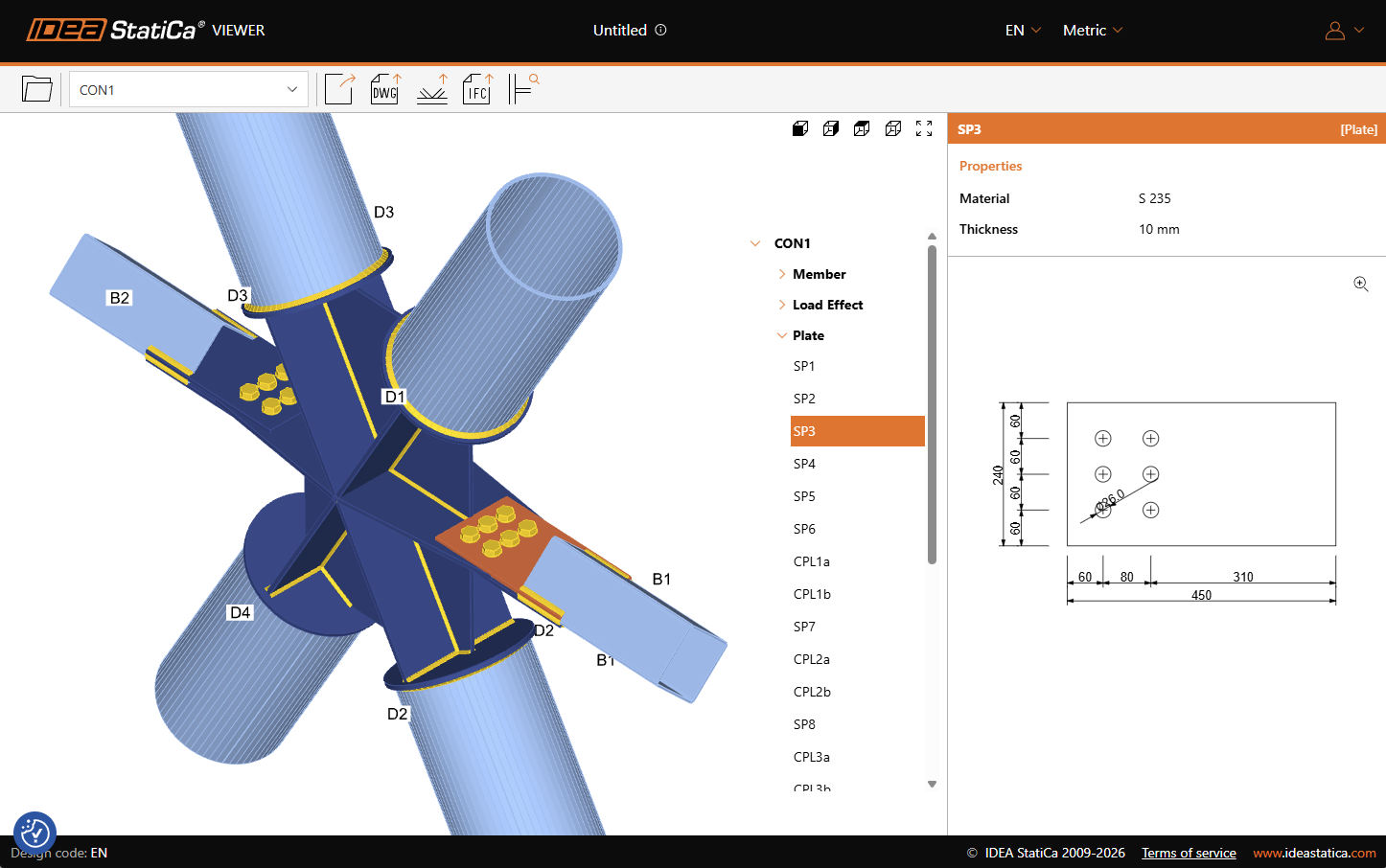

Need to instruct your detailer?

Trying to describe a complex structural steel connection to
a detailer using screenshots and text can be frustrating.

Just send the IDEA StatiCa connection file to them! They can open it in the FREE cloud app IDEA StatiCa Viewer and get dimensions and materials for members, plates, bolts, and welds right away.

Need to instruct your detailer?
IDEA StatiCa

Viewer

For sharing IDEA StatiCa projects between engineers and detailers.

Learn more about Viewer
  • Visualize any connection in the browser
  • See dimensions and materials for members, plates, bolts, and welds
  • Download IDEA StatiCa file or 3D DWG
  • No license needed
IDEA StatiCa

Connection Library

Get inspired by the world’s biggest database for steel connections. Browse examples matching your project.

Explore Connection Library
  • Get inspired by 1,000,000+ steel connection design examples
  • Unlimited access with a free IDEA StatiCa account
  • Cloud application running in your web browser
IDEA StatiCa

Checkbot

Export and synchronize hundreds of connections and members.

Find out more
  • Direct imports from FEA and CAD software
  • 20+ supported BIM integrations
  • Free Basic account needed only
