Detailing of bolts and welds according to Chinese standard

This article is also available in

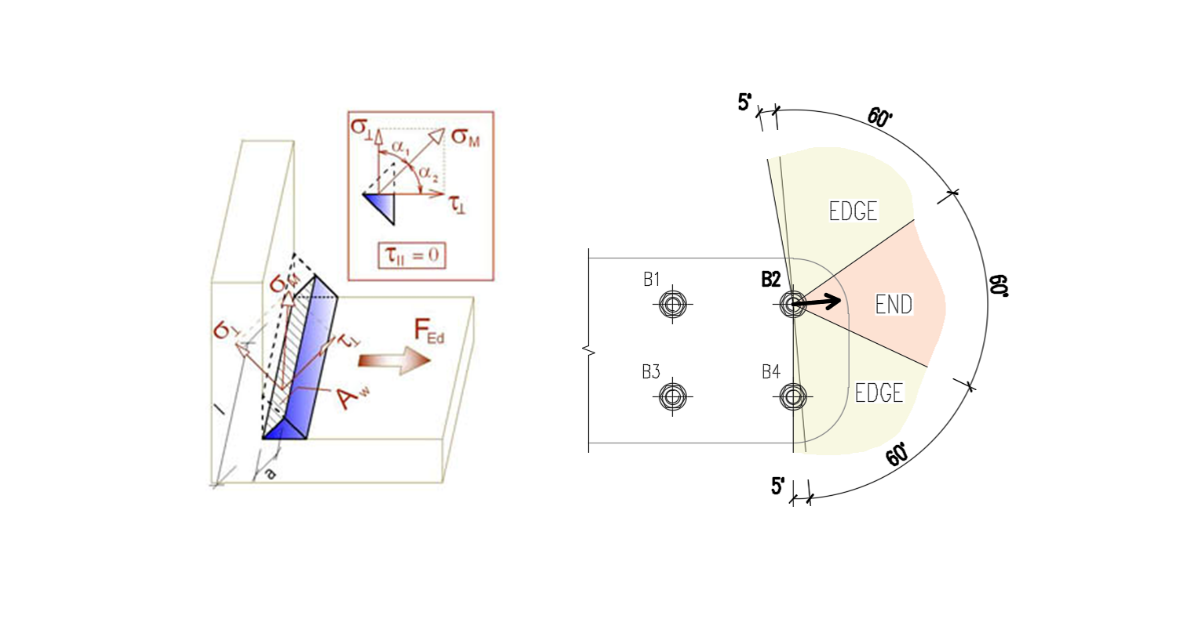

The minimum allowable distance of bolts is checked according to Table 11.5.2.

Minimum allowable distance of bolts; d₀ – bolt hole diameter

	Minimum allowable distance
Bolt pitch	$3 \cdot d_0$
End distance parallel to load	$2 \cdot d_0$
Edge distance perpendicular to load (bearing bolt type)	$1.2 \cdot d_0$
Edge distance perpendicular to load (preloded bolt type)	$1.5 \cdot d_0$

The minimal weld size h_f is checked according to Table 11.3.5. The weld size is determined from weld throat thickness: $h_f = \sqrt{2} \cdot h_e$ .

Minimal weld size h_f
