Weld size differences between EC and AISC (CISC) codes
Under EN, the weld size is defined as the parameter a, which is the weld throat thickness.
Under AISC (CISC), the weld size is defined as the parameter z, which is the weld leg size.
You can simply calculate a from z and vice versa using the Pythagorean Theorem.
Weld size
You can input the weld size in each operation that generates welds directly in its properties. If you set the value Weld [mm/in] to 0, the program will automatically determine the size as half of the thickness of the thinnest connected plate.
You can also use the advanced Weld sizing method based on machine learning or the ductility requirements.
Weld length

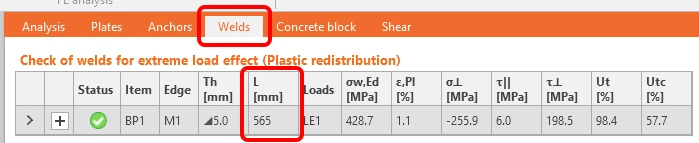

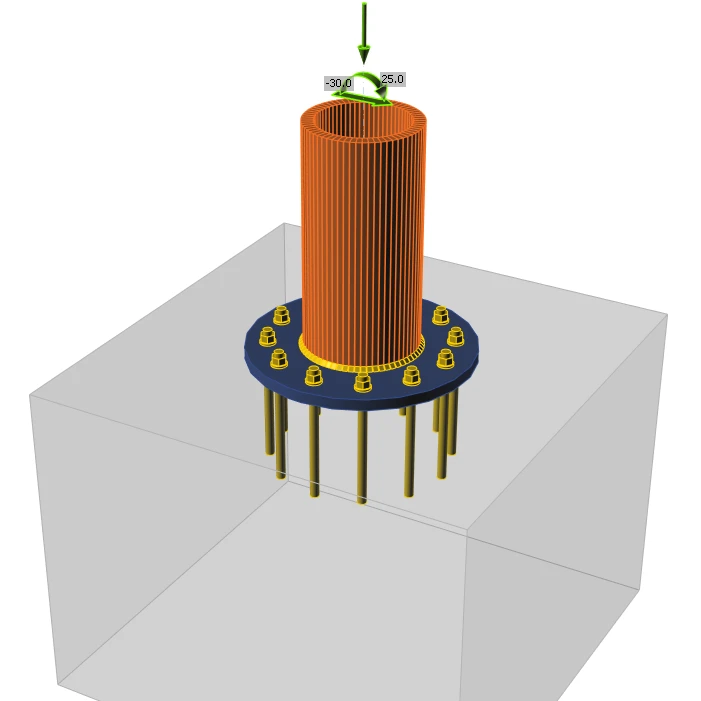

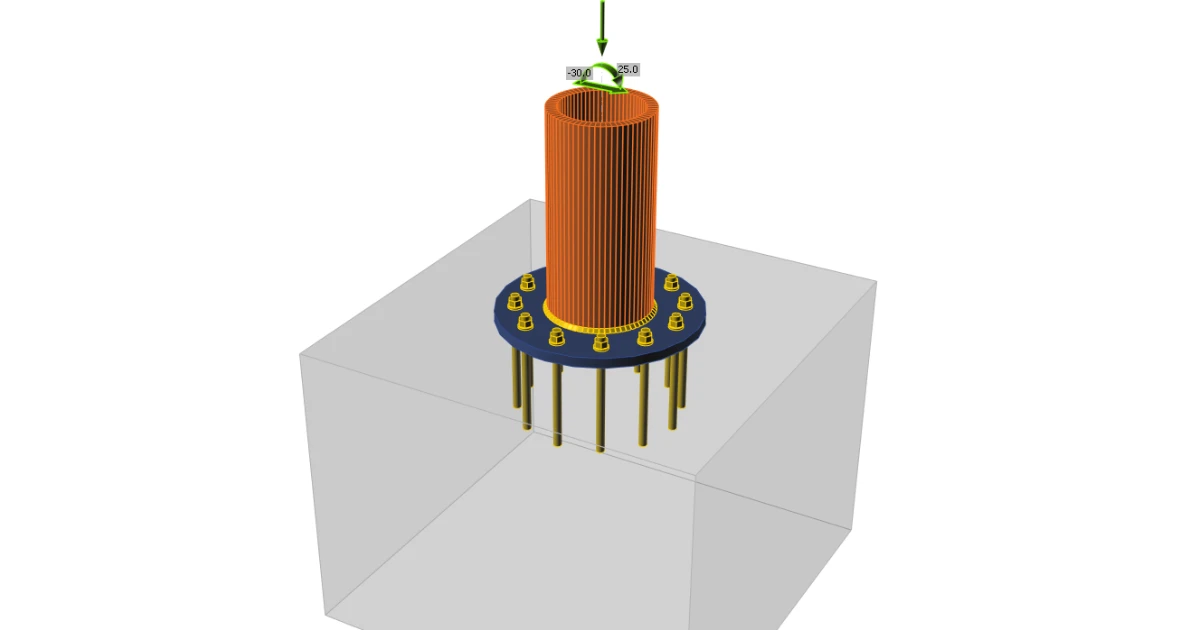

If you need to know the exact length of a weld, go to the Check tab once the calculation has been performed. The length of the weld is related to the central line of the tube.
You can also find all weld sizes and lengths in the Report, under the Bill of Materials (BOM).
Weld is automatically set as long as the connected plate edge. You can set the weld length using the Weld operation only, and changing the property Type from Continuous to Partial (offsets from both sides) or Intermittent (offsets from both sides and gaps)
