Hinged anchoring with two SHS bracing diagonals

This article is also available in:

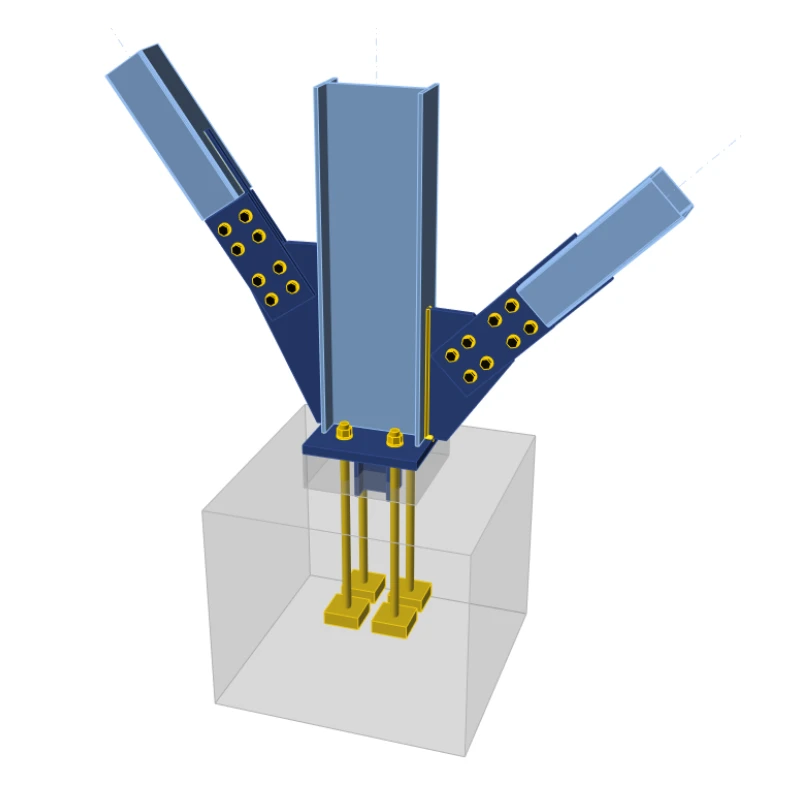

Column hinged footing through a base plate. The anchoring is with the mortar layer. There are two diagonals connected to this anchoring made of SHS section with a double inserted tongue plate bolted to a gusset plate. The shear force transfer is provided by a shear stop element. The model is solved completely in the IDEA StatiCa Connection app.
