Bracing array connection

This article is also available in:

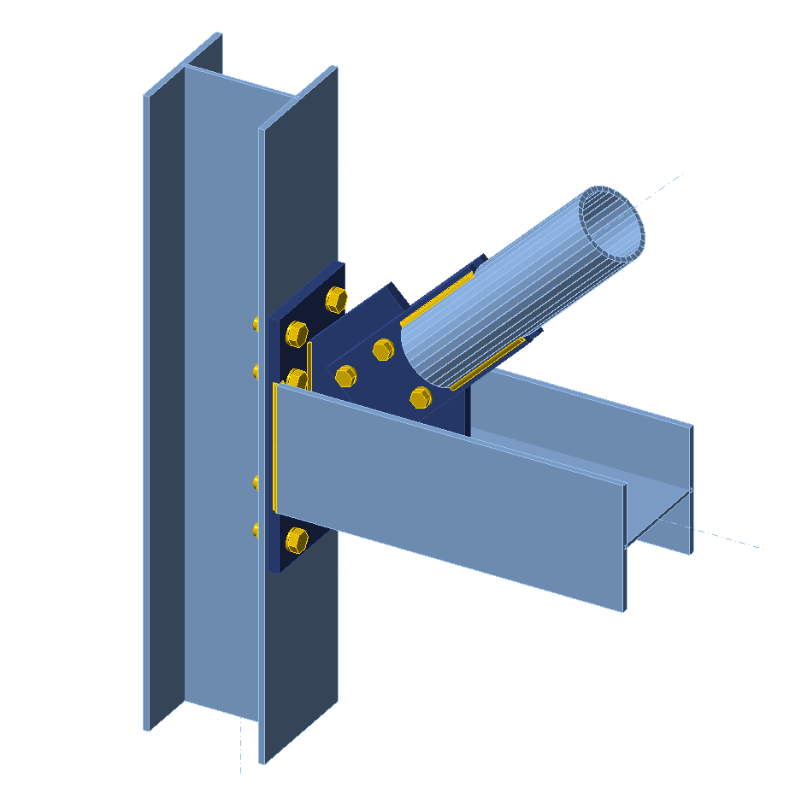

An atypical steel connection of the bracing array members to the column. The wall girt member is connected through a bolted end plate while the bracing tube member gusset plate is welded directly to the girt. The model is solved completely in the IDEA StatiCa Connection app.
