3D Connection of column to column through beams

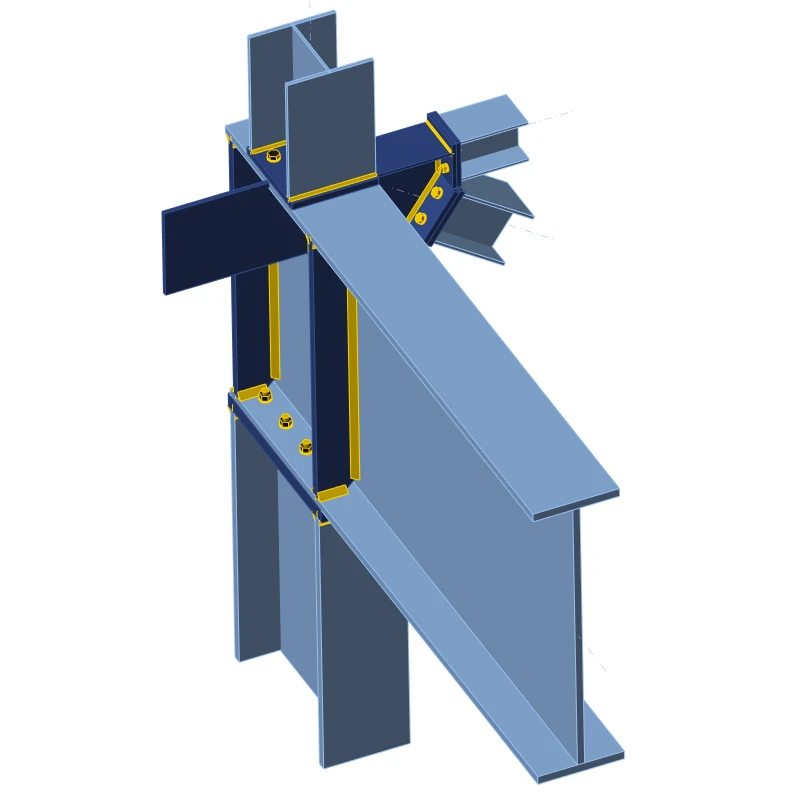

A complex 3D Connection model of column-to-column bolted through endplates to the main beam with stiffeners. Side connection connected through plates combined by welds and bolts. Typical for the corners of truss structures. The connection is solved in the IDEA StatiCa Connection app.
