Wide flange beams to a square HSS Column

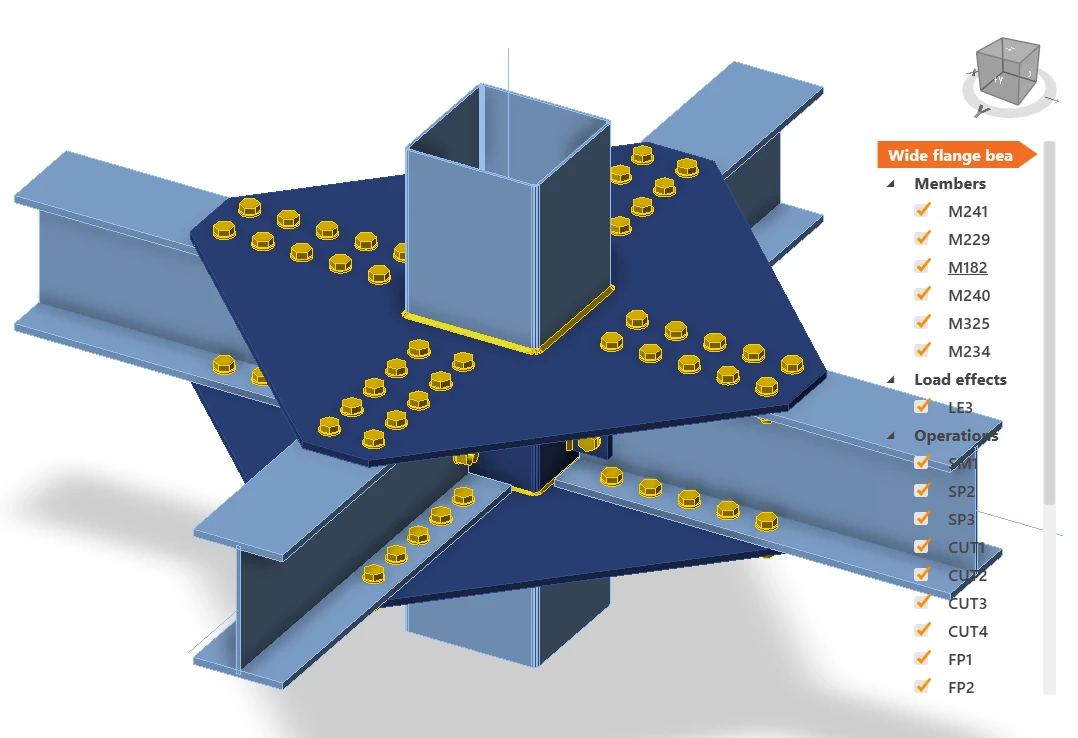

This is a four-wide flange beam connection to a square HSS column. The connection has two big plates bolted to the beams and passing through the HSS Column. The column is welded to the flange plates.
