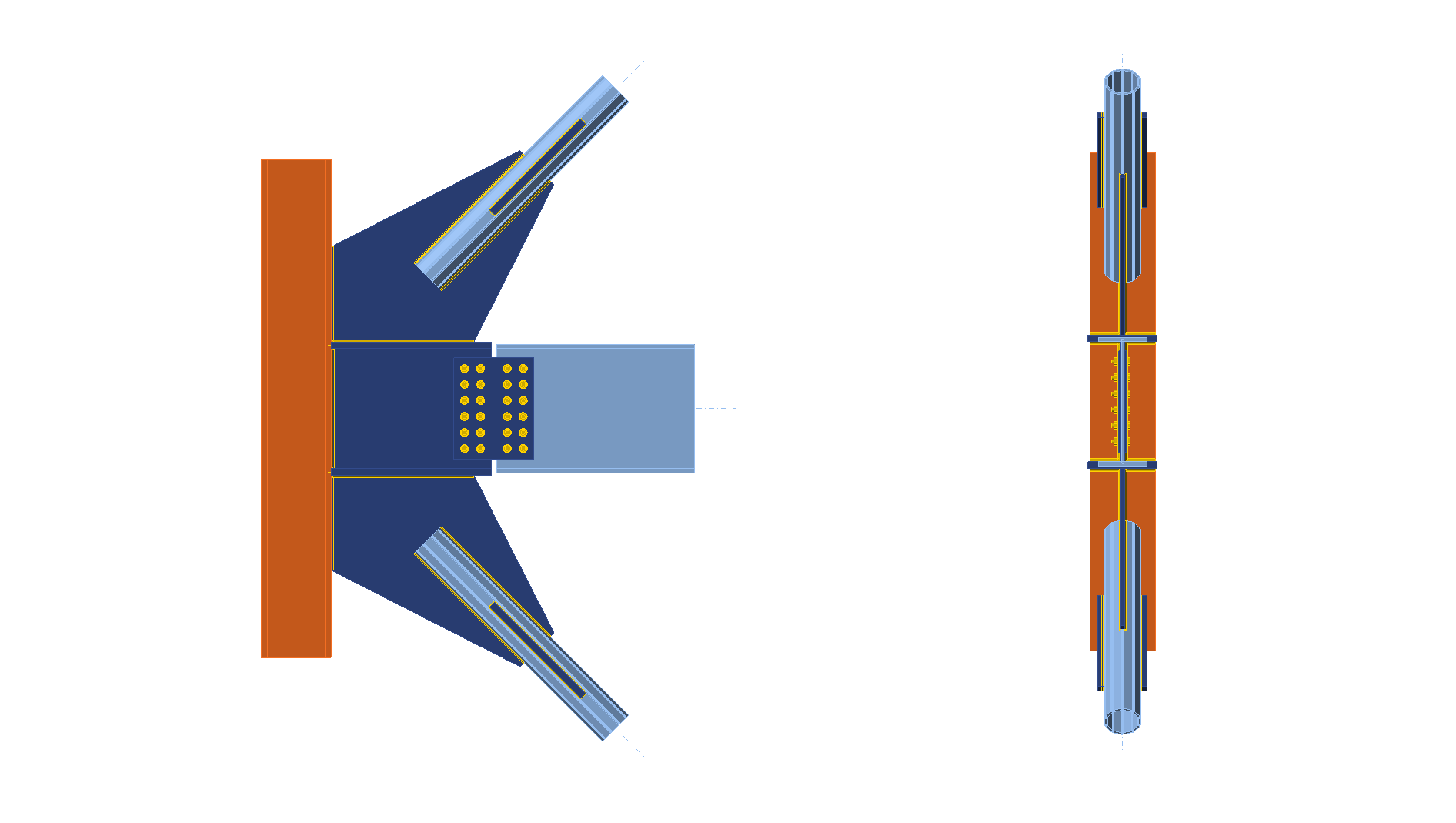

SCBF Brace-to-Beam/Column Connection Design with 2tp linear clearance gusset design
This sample project is a model from Example 5.3.10 in the AISC Seismic Design Manual 4th Edition. It is an SCBF Brace-to-Beam/Column Connection Design with 2tp linear Clearance and simple Beam-to-Column Connection.
