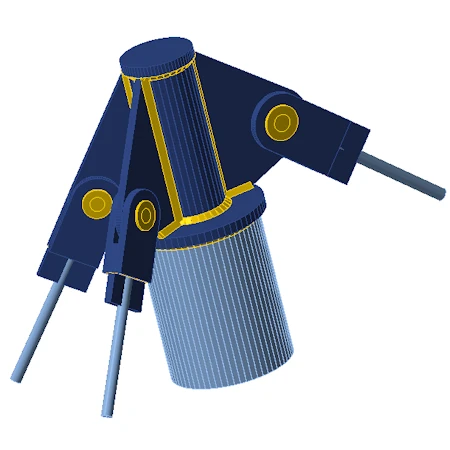

A joint connecting the cables of a tensile structure, forming a small membrane roof. The inclined mast is made from a CHS 168.3×5.4 tubular section and is equipped with a circular base plate and a tubular head for cable anchorage. Custom round plates welded to the tubular head provide connection points for the tension cables via D24 steel pins.
See more in the webinar recording. Model created in IDEA StatiCa Connection app.
