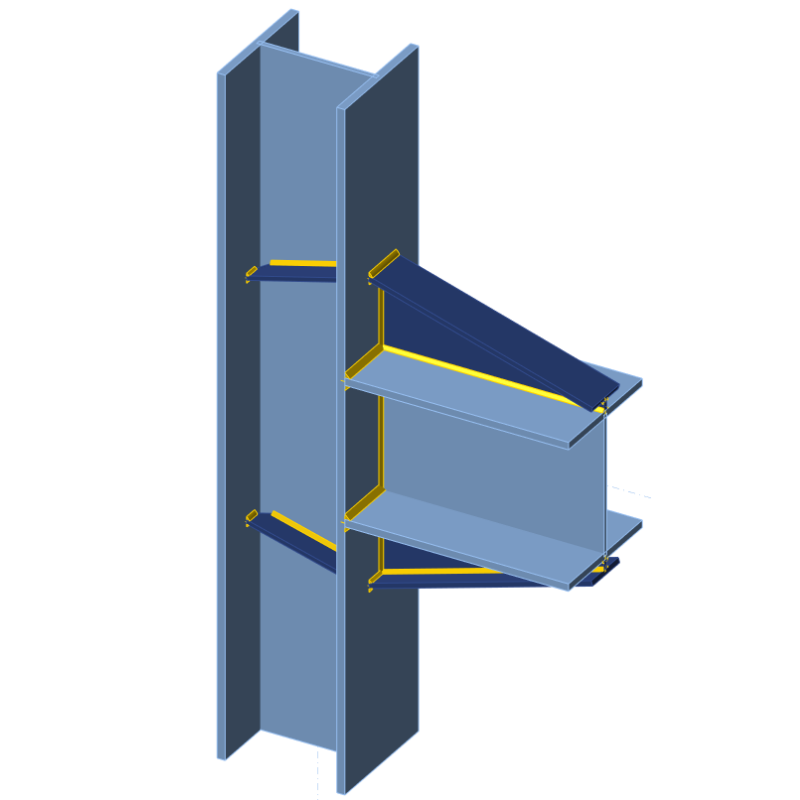

Moment beam-to-column connection with the double beam haunches and inclined column stiffeners. A typical example of a multi-level structure. The beam and stiffeners are connected by welding. The connection is analyzed in IDEA StatiCa Connection. Â
