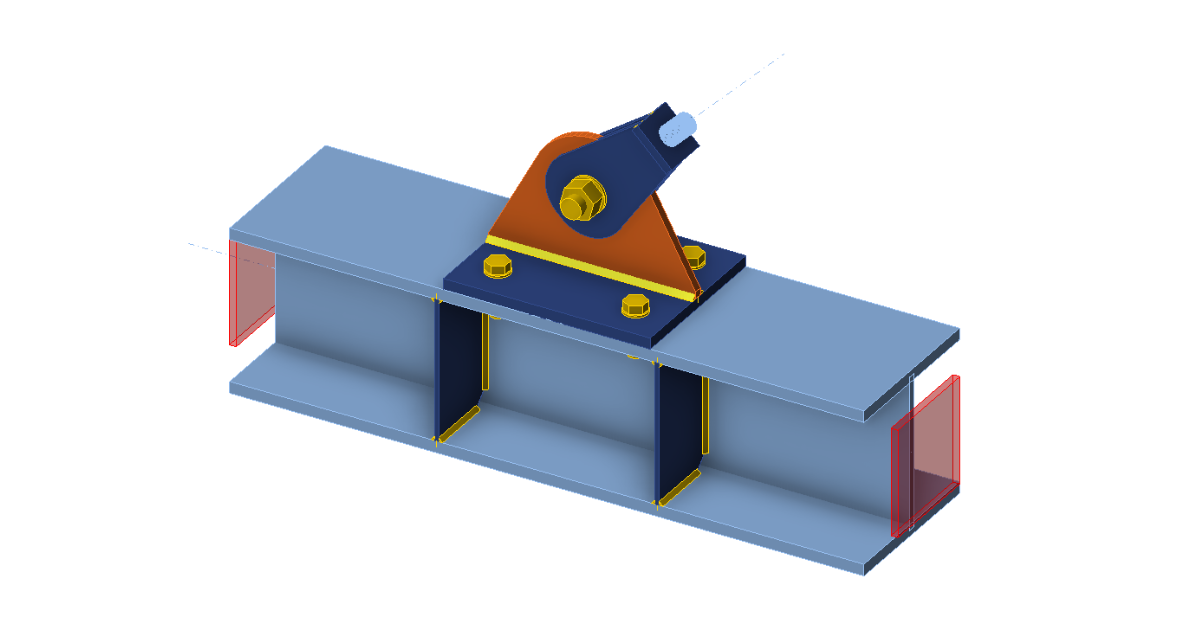

A bolted configuration of lifting lug in which the lug is made up of stiffening plate connected to a spreader beam by bolts. Stiffeners were added to the spreader beam. Different lifting angles can be positioned for this type of configuration. The model was analyzed in IDEA StatiCa Connection application.
