Endplates and ribs for hollow sections

This article is also available in:

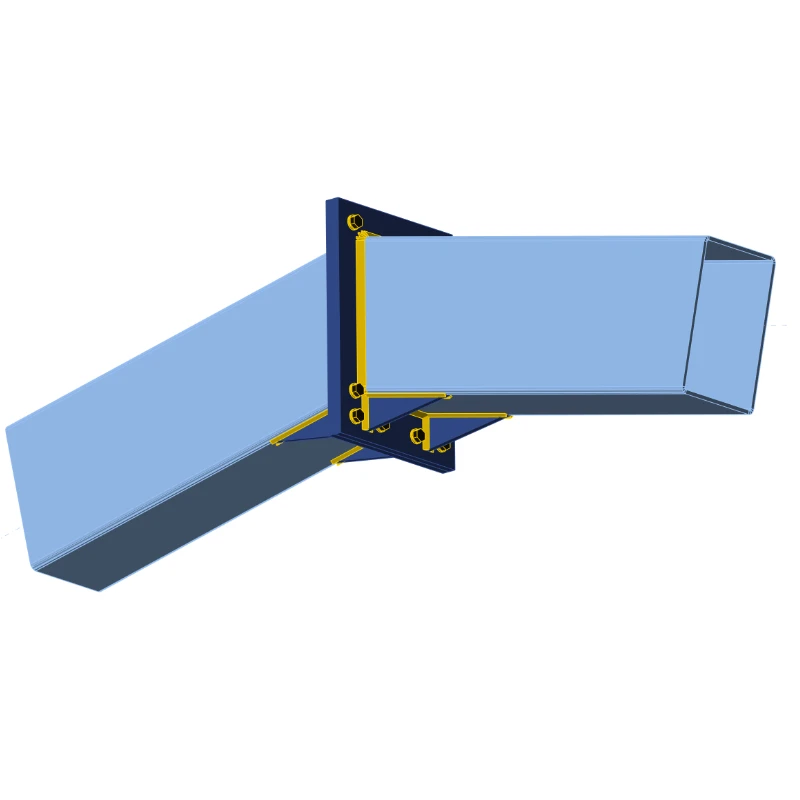

Semi-rigid connection of two steel hollow cross-section inclined rafters connected via endplates using a non-symmetrical bolt grid. The stiffness of the connection is increased by two pairs of ribs oriented at the bottom flanges of the tubes. Modeled in the IDEA StatiCa Connection application.
