Connecting plate with notches

This article is also available in:

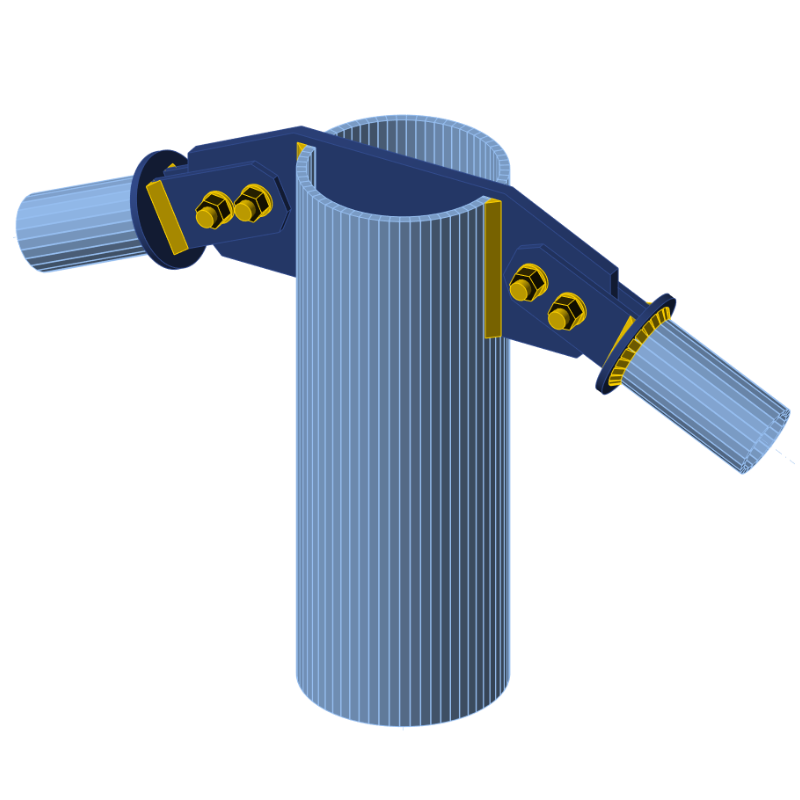

Tubular column with notched plate through and pinned beams connected by connecting plates with caps. The bracing tubes are assembled to the connecting plates with two bolts. The skewed connection for wind bracing is solved in the IDEA StatiCa Connection app.

Sample files
