Complex anchoring

This article is also available in:

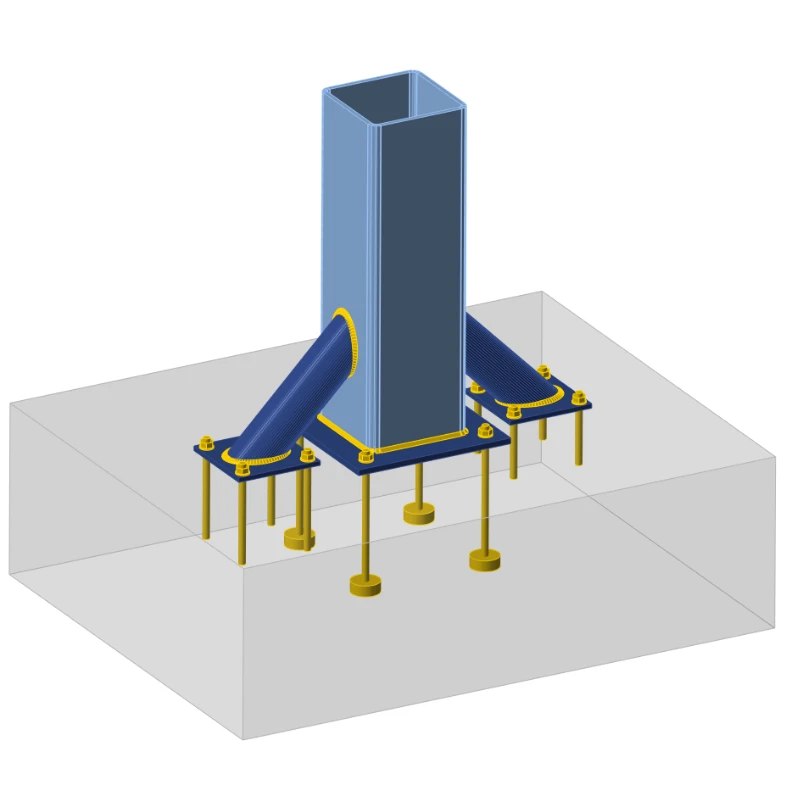

Example of atypical multiple anchoring of single hollow-cored column (HSS). Two welded tubular stiffening members are connected to the column and separate concrete blocks using the baseplate connections. Stiffening members were used to strengthen the column so the moment could be transferred safely. Modeled in the IDEA StatiCa Connection application.
