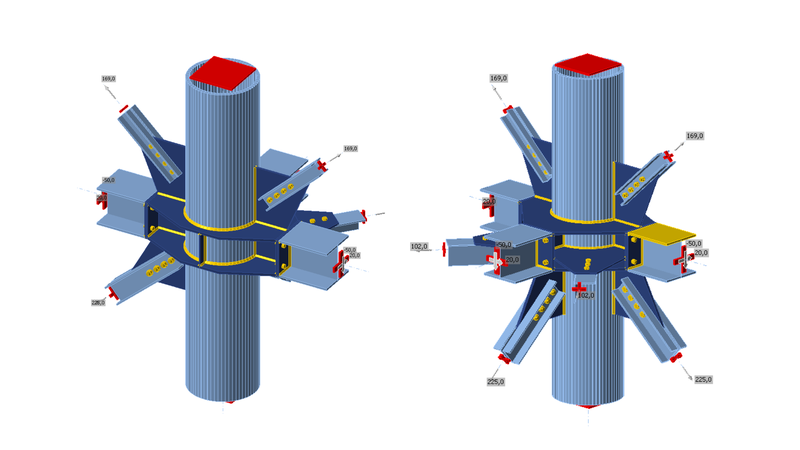

Steel tunnel, Ravenna

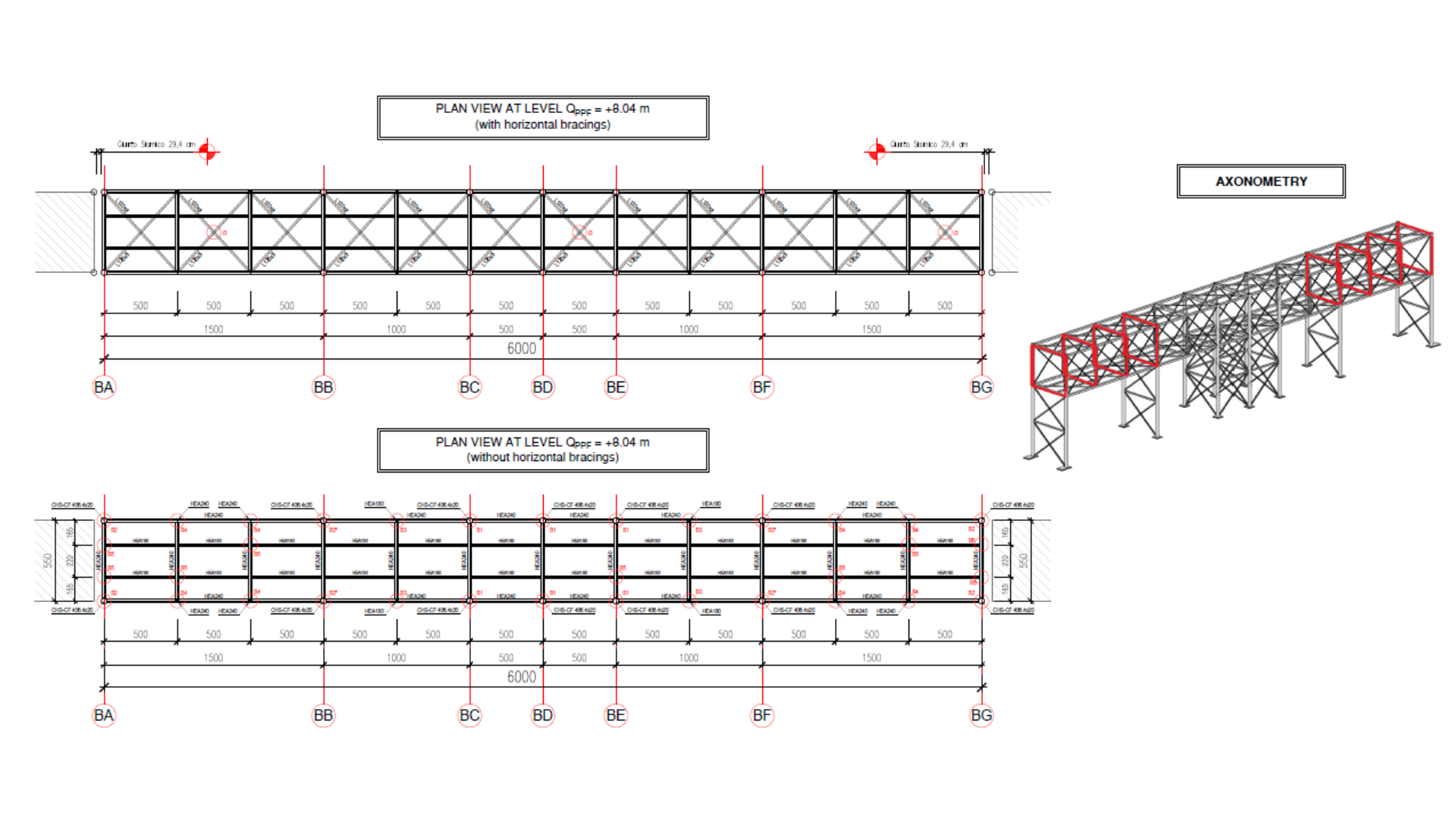

The steel tunnel connects two structures, thereby serving to transport goods from one structure to another.

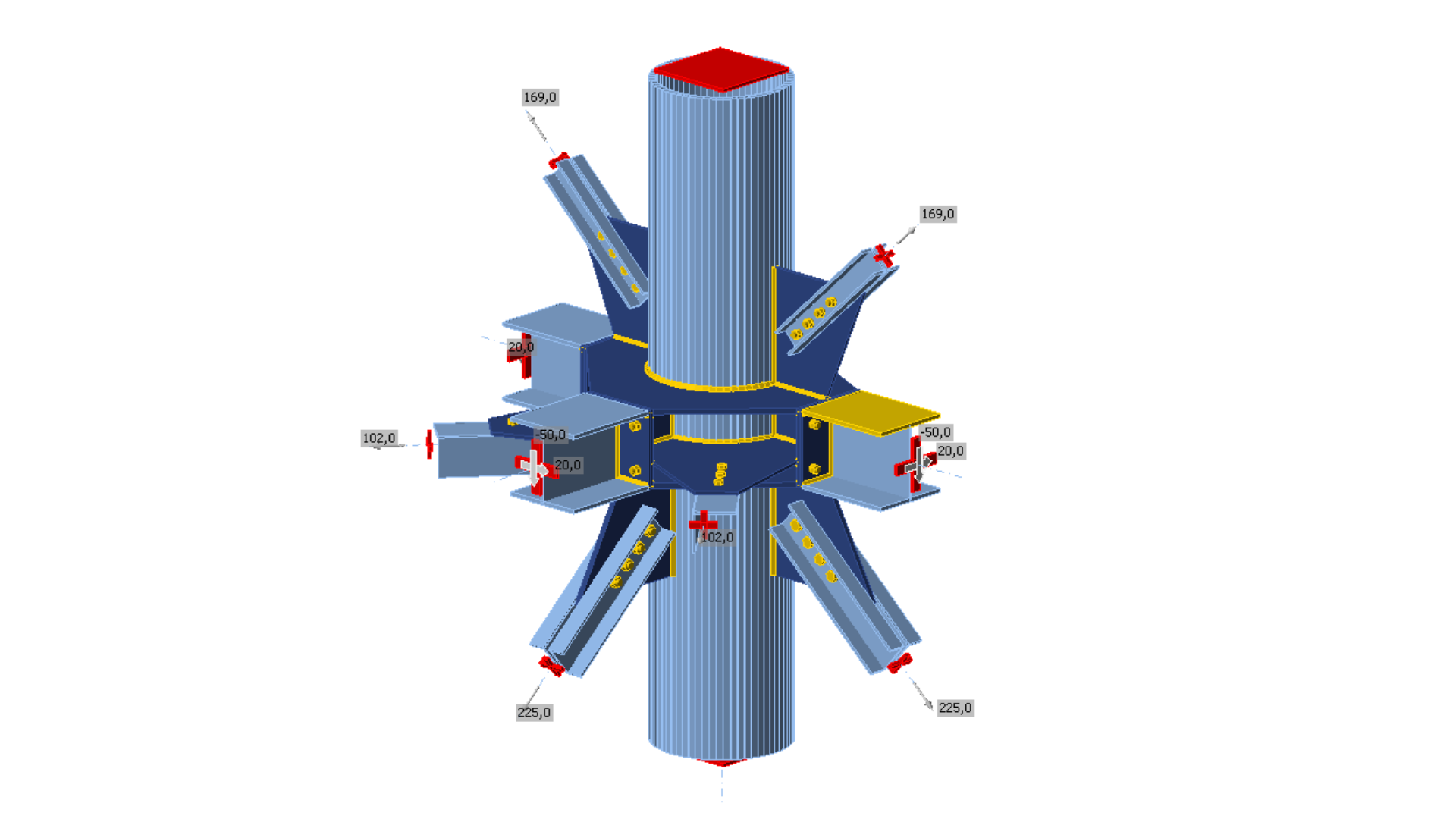

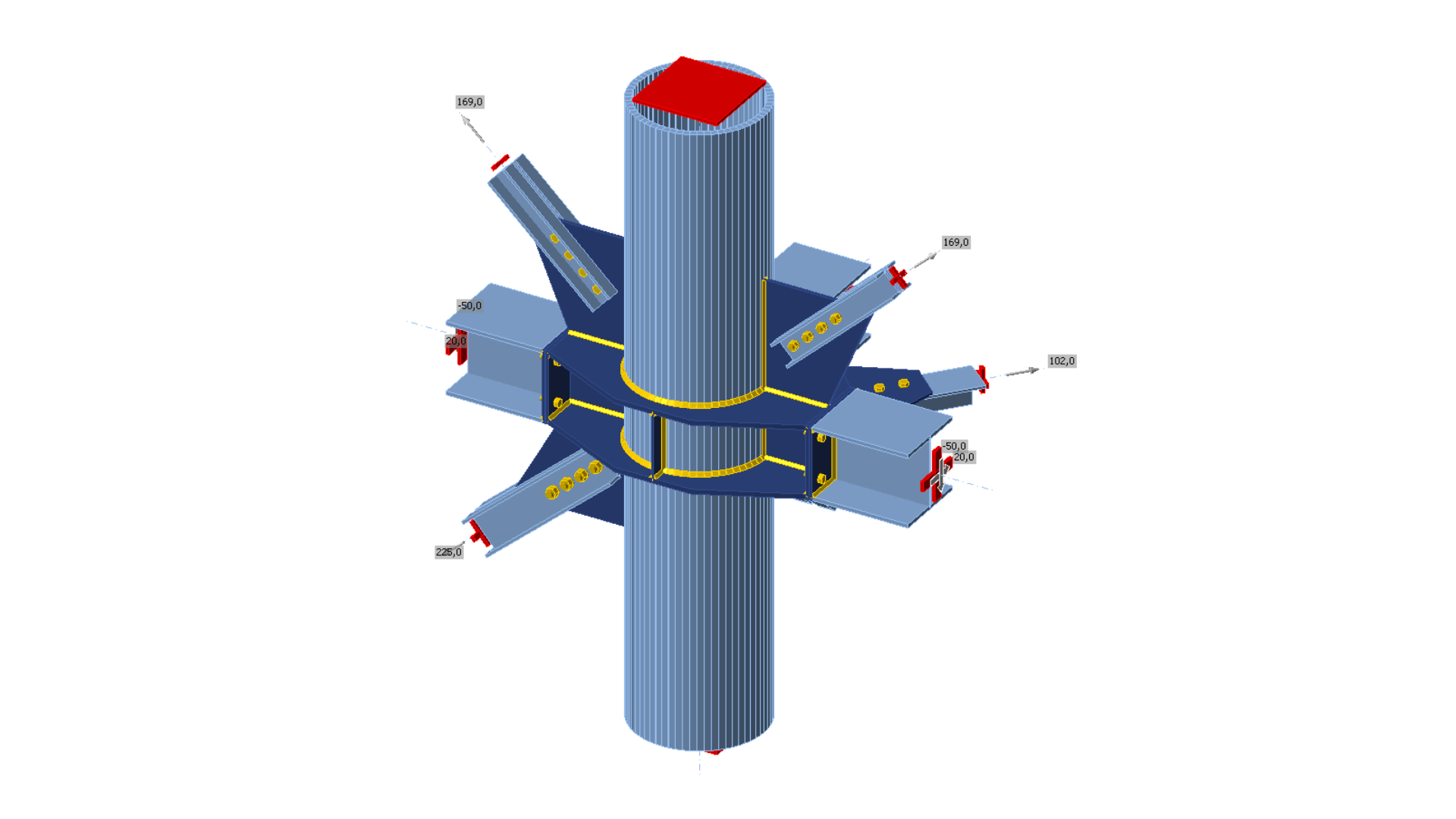

In this connection, all beam/column connections are considered and modeled as hinges to resist only shear and axial forces while the bracing, of course, is considered to resist only axial forces. Therefore, the beams and bracings were defined with Model Type N Vy Vz and forces in bolts.
