HSS Beam to HSS column moment connection

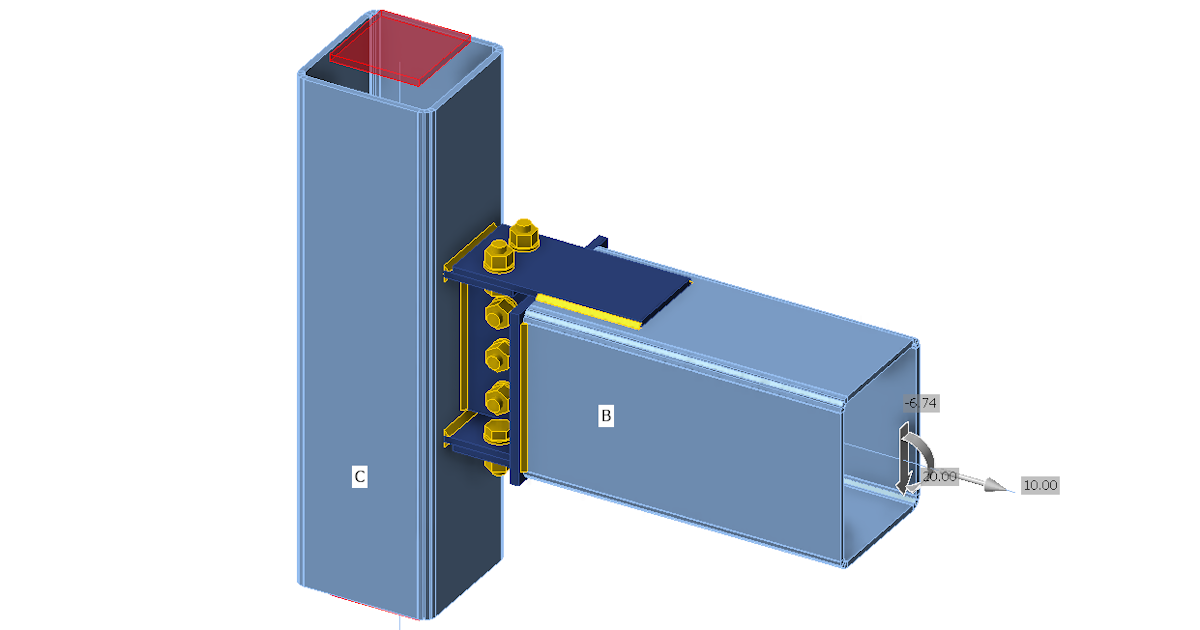

This is a HSS beam to HSS column moment connection. The connection has flange welded plates to the beam. The beam has a cap plate.
