How to use a rod (solid bar) member

The rod cross-section (solid bar) is dedicated mostly to tension elements. It can be found in the library of profiles; nevertheless, its applicability is limited to two manufacturing operations only: the connecting plate and the gusset plate.

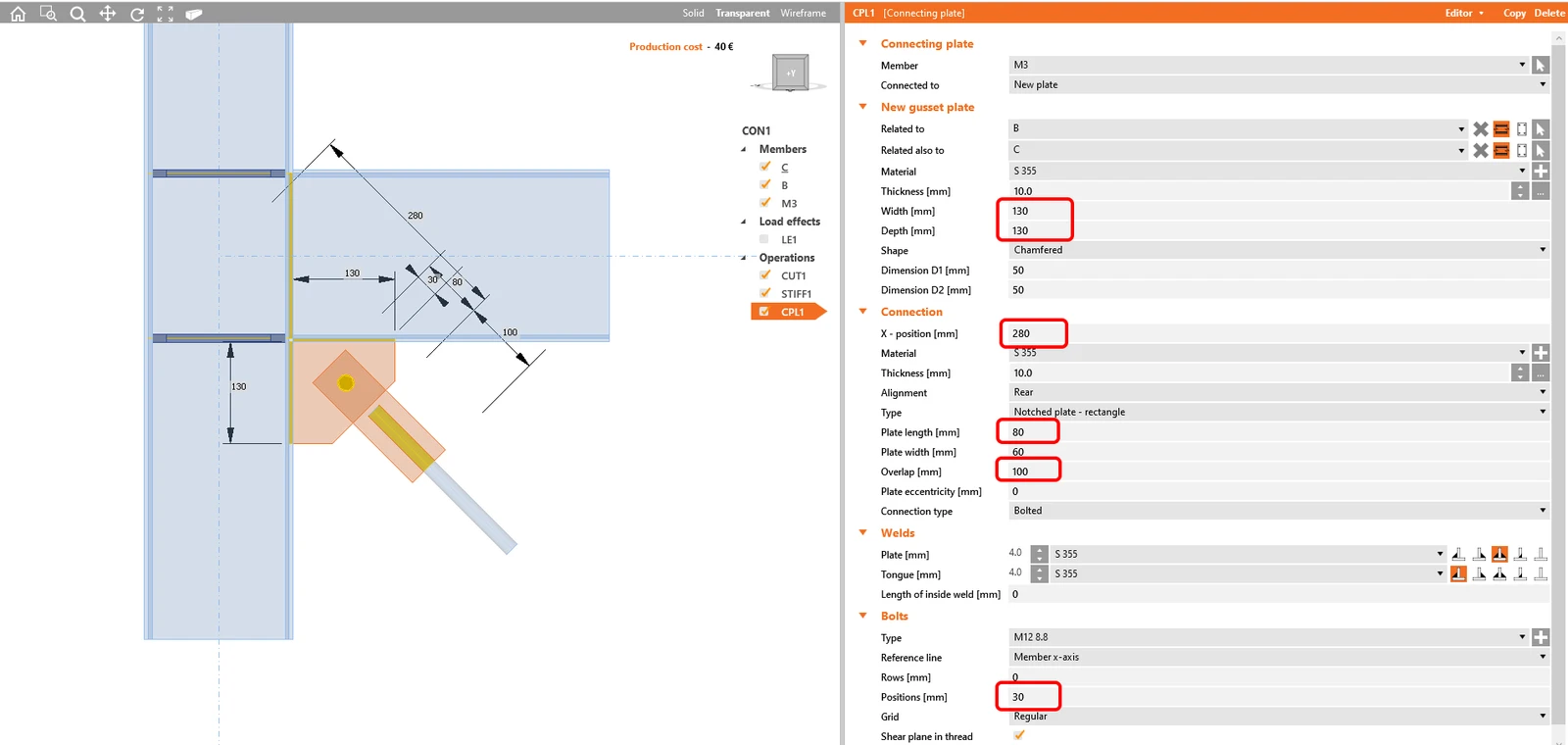

Here are the main dimensions when using  the operation Connecting plate - Notched plate - rectangle:

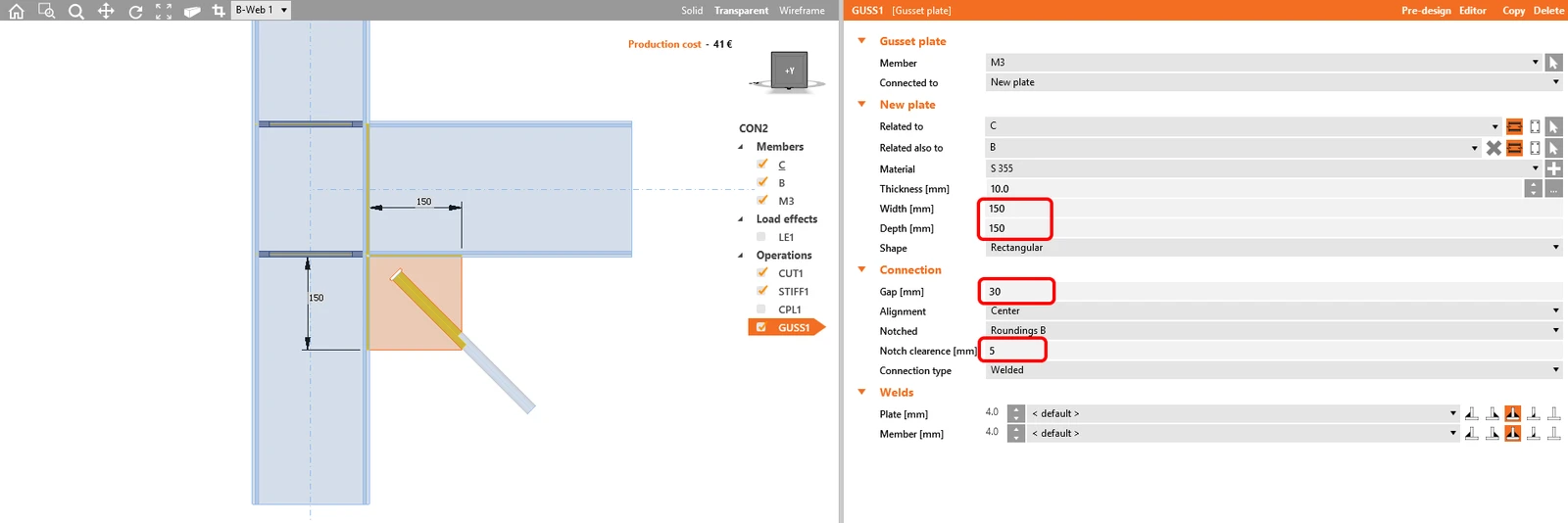

And here, when you use Gusset plate:

In both cases, the profile is not meshed by shell elements like all others; therefore the software does not present results on them. The check of such a member has to be done in the 3D global analysis model. Despite this, the adjacent welds are checked as usual.

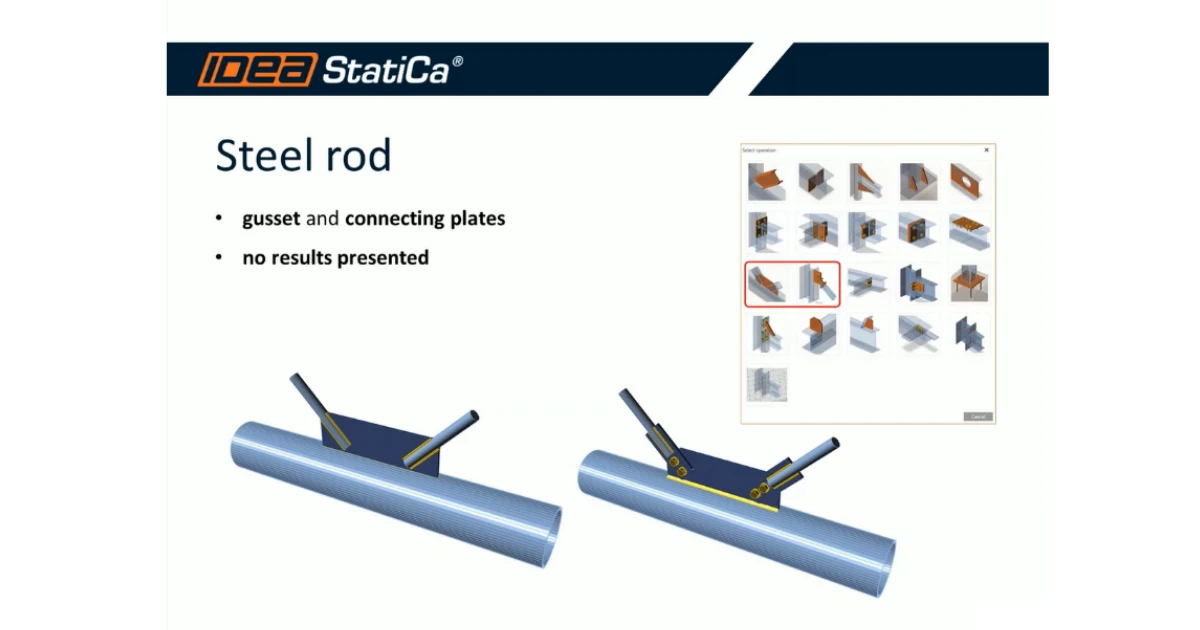

See more in the following video:
