Hooked anchors/L-bolts in AISC

This article is also available in:
It is possible to define the L-shaped / J-shaped or hooked anchor bolt when using the AISC code. For this type of anchor, the pullout resistance is checked.

In the design and check of footings, an AISC project can consider a hook type of anchor for the foundation concrete block.

The L-shaped anchors can be defined either in the base plate or in the fastener grid or contact operations.

Anchor pullout strength for L bolts in AISC - menu

The hook length must be at least three times the anchor diameter, as per ACI 318-19 - 17.6.3.2.2. A warning appears when this condition is not met.

Anchor pullout strength for L bolts in AISC - warning

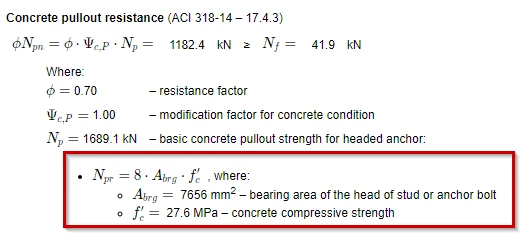

You can find the concrete pullout resistance check as per ACI in the report. For more information about the checking of anchors and a concrete block according to AISC, go to Check of steel connection components (AISC).

Anchor pullout strength for L bolts in AISC - Code check

Released in IDEA StatiCa version 24.0.
