Gusset to base plate

This article is also available in:

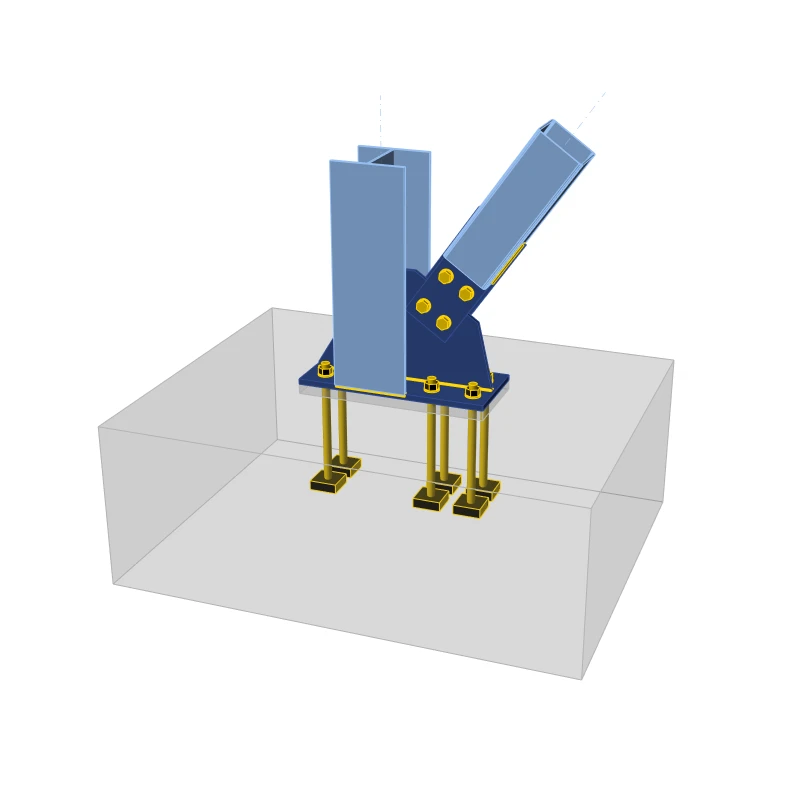

The centric bracing connection with a gusset welded to the base plate. Anchored to the concrete footing with anchors with washer plates. The joint is solved completely in the IDEA StatiCa Connection app including anchoring, bolted connection, and welds.

Sample files
