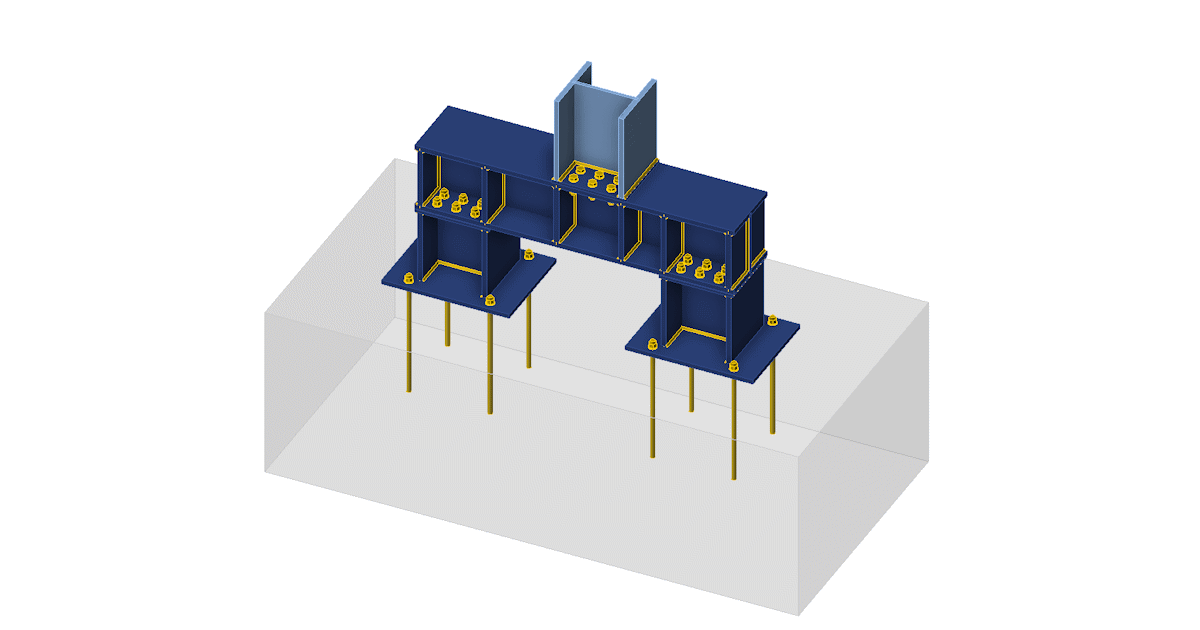

Base plate on stiffening members
To apply the baseplate on a stiffening member, place the baseplate operation at the beginning of the stiffening member. Also, the distances L1 and L2 of the stiffening member both have to be non-zero.
Then, the second baseplate operation can be related to an existing block (defined in the first baseplate operation) since IDEA StatiCa version 25.1.
The model was created in the IDEA StatiCa Connection app.
