Wide flange beam to HSS Column moment connection

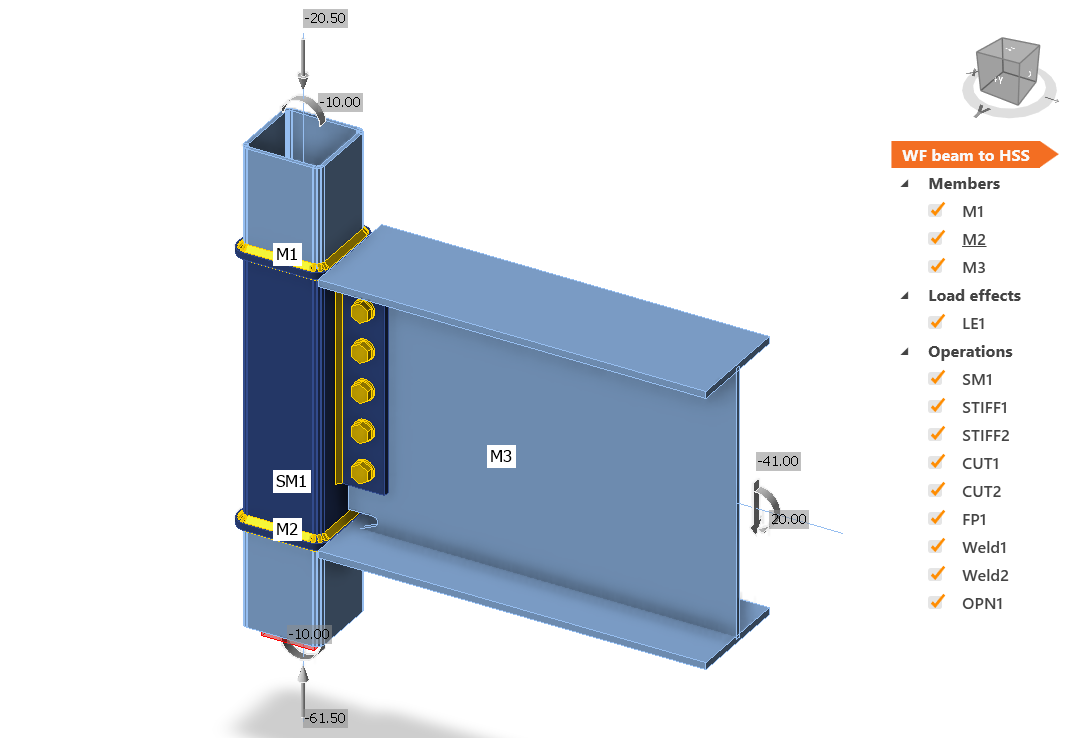

This is a wide flange beam to an HSS Column moment connection. The beam flanges are CJP welded to two plates. Those plates pass through the continuous HSS column. A stub member was required.
