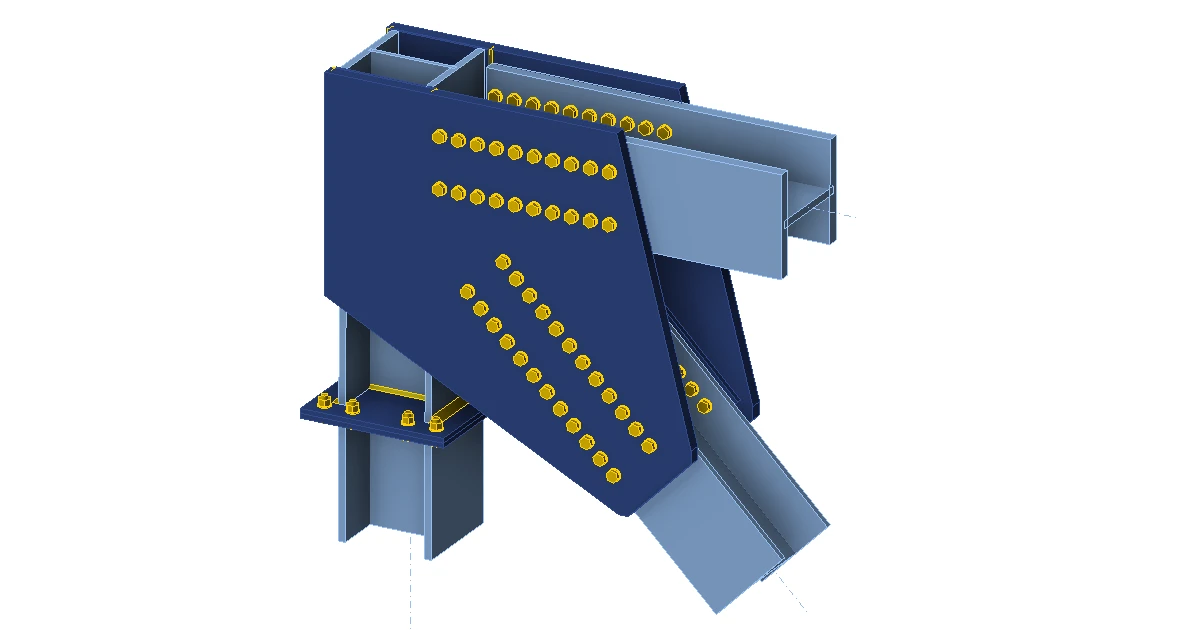

This is a wide flange truss end connection. The column with a stub connection has the cross section of W14x145, the upper truss beam of W14x257, and the truss diagonal of W14x120. The connection has bolted gusset plates to the trusses' flanges using bolts 1 A490. Fillers were required to match the gusset and the trusses' flanges.
Model created in IDEA StatiCa Connection app.
