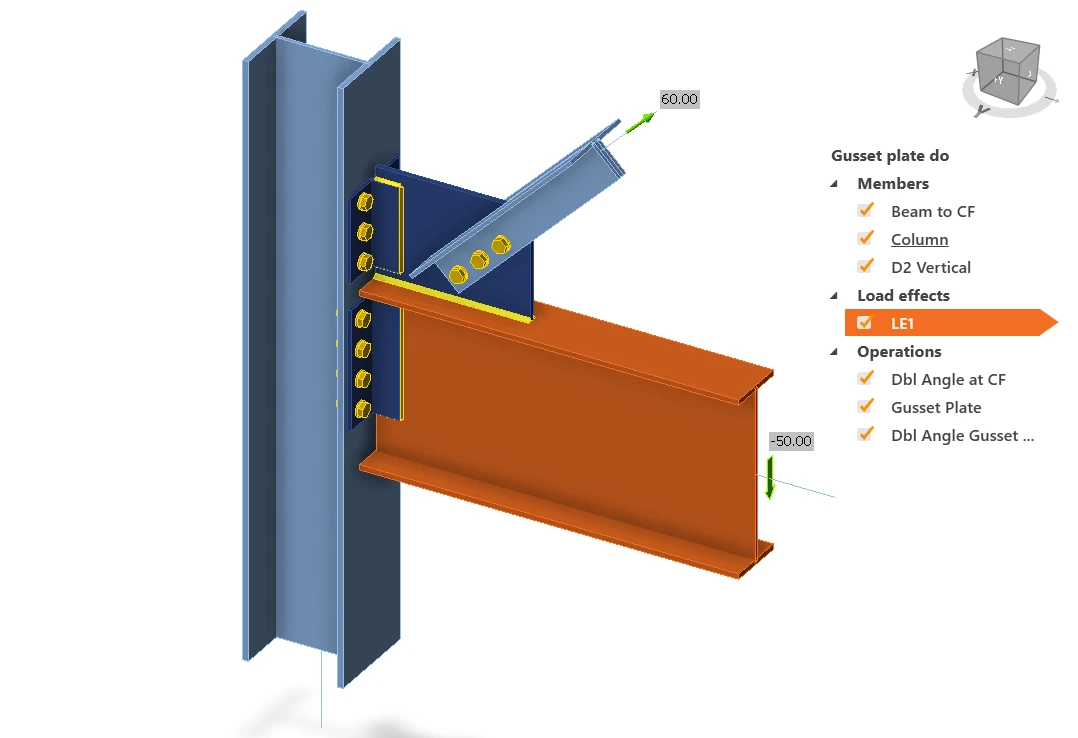

Column beam brace connection

This is a column-beam-brace connection. The beam is connected to the column by a double angle connection. The brace is bolted to the gusset plate and the gusset plate connection to the column is a double angle connection.
