Bolted flange plate moment connection

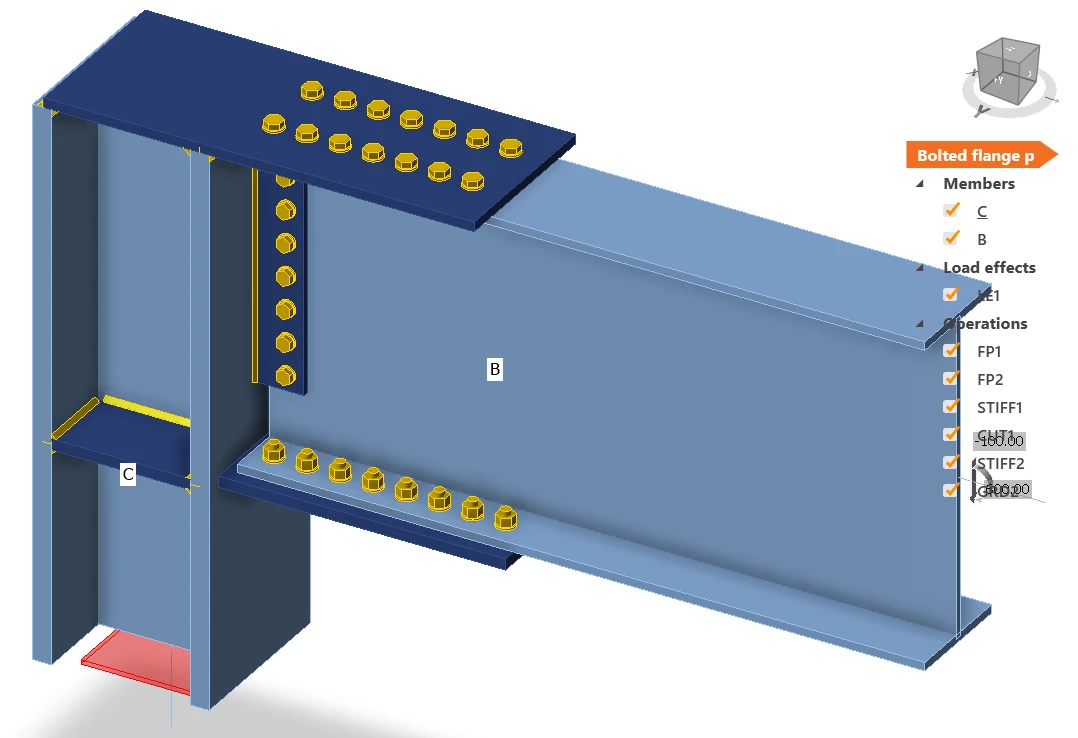

This is a moment bolted flange plates connection. The connection is at the end of the column and the top flange is used as a cap plate for the column.
