Investigate model behavior with Section results and Stress check
Section Results allow insight into the stresses within the concrete element. It is possible to create any number of sections and in any plane.
Resultados de las secciones

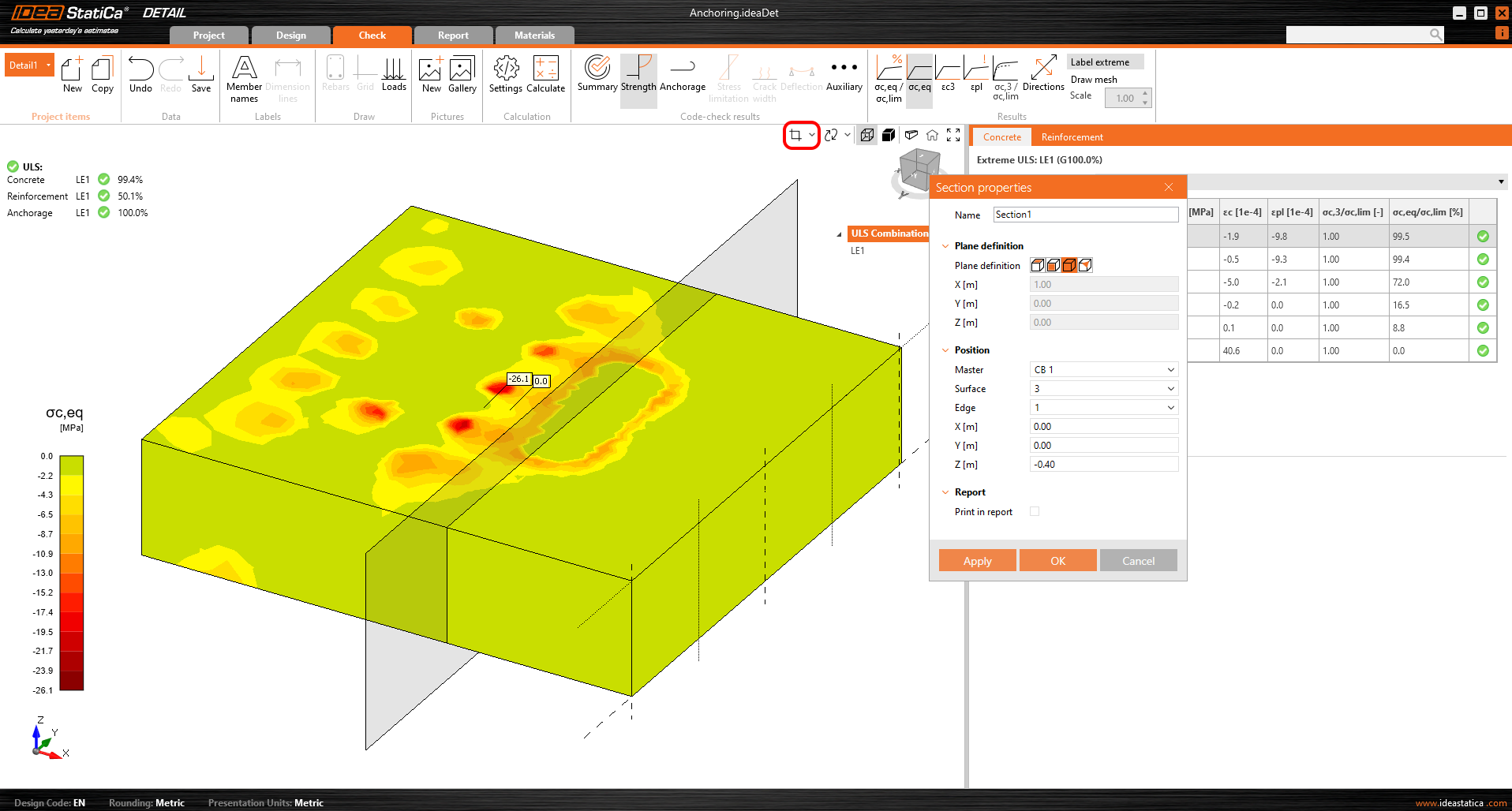

Para los modelos 3D, existe una opción para mostrar los resultados del hormigón: Resultados de sección. Para definir o modificar las secciones, es necesario utilizar el botón de sección en el control de vista, que se encuentra en la esquina superior derecha de la escena.

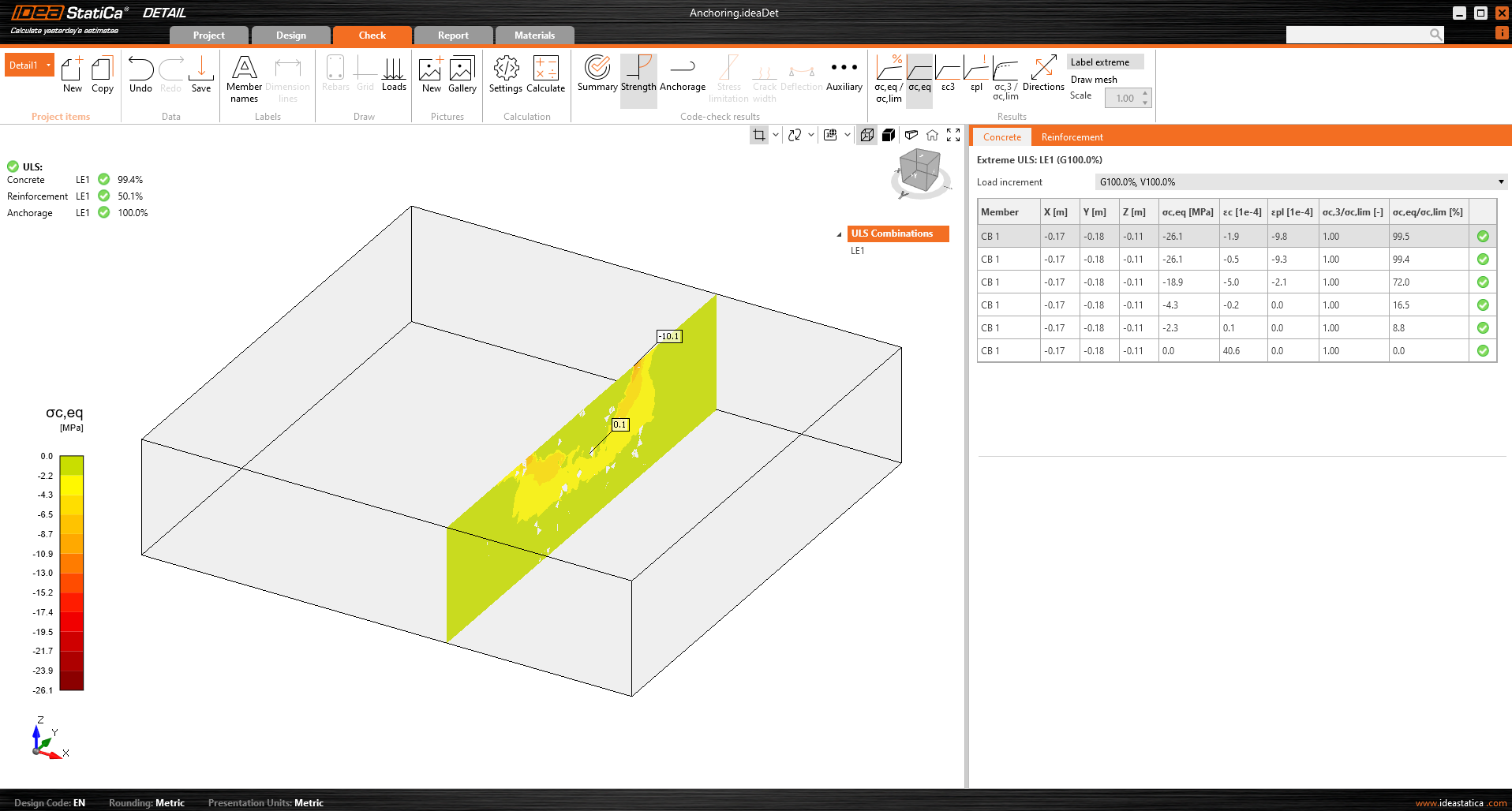

A continuación, sólo tiene que activar el botón de sección y los resultados se mostrarán a través de una sección especificada.

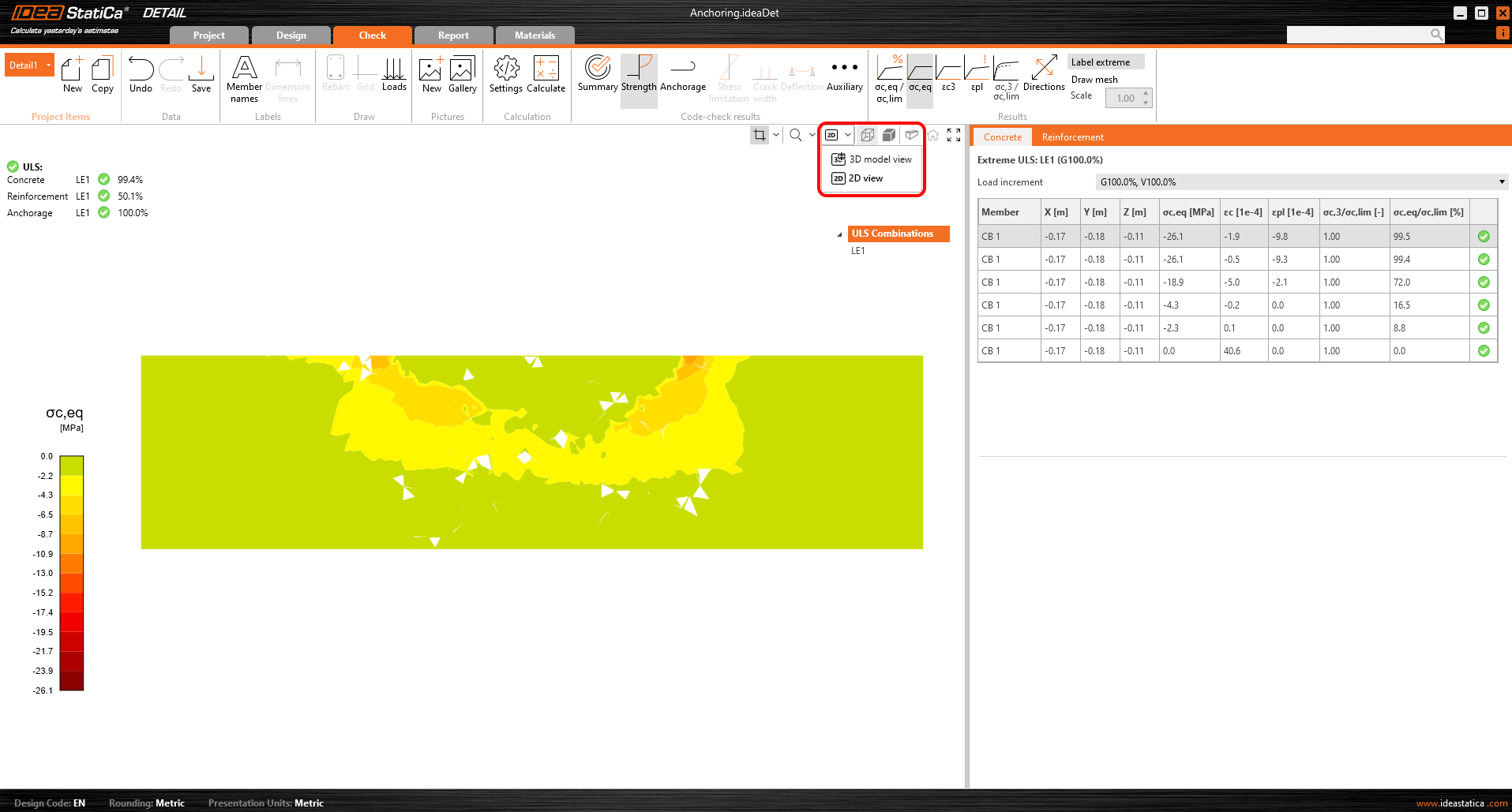

O hay una opción para cambiar la vista de 3D a 2D y para una mejor claridad mostrar la sección seleccionada en 2D.
Released in IDEA StatiCa version 24.0.4
Stress check
For a better understanding of the results and the theory implemented in the 3D Detail, the iconography has been significantly improved. In the "Strength" section, under the concrete stress assessment, you will find new icons and, most importantly, tooltips explaining the basic theory. These tooltips correspond to the theoretical background.
Released in IDEA StatiCa version 24.0.2
