Machine foundation

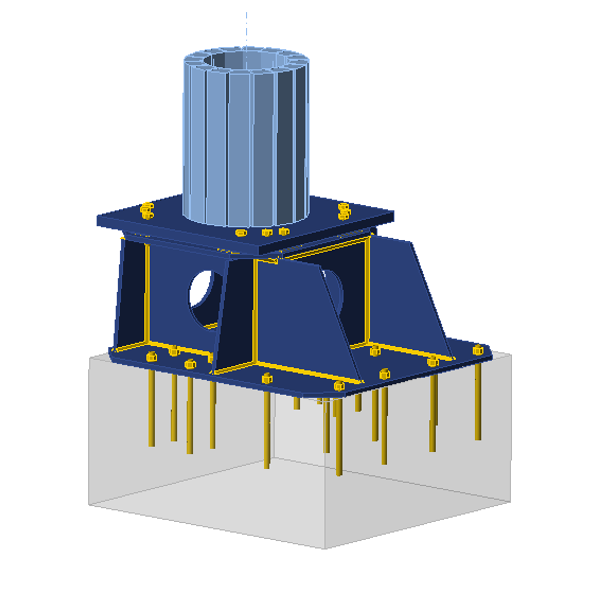

Anchoring of the steel substructure for a heavy machinery robot. The foundation for the main mast of the robot is made of a concrete block, preinstalled anchors, and a set of welded plates forming a cubic post with openings for cable routing. Model created in IDEA StatiCa Connection app.
