Checkbot

Import and synchronize all of your connections and members from your structural analysis and modeling solutions.

SUPER-SPEED YOUR DESIGNS

IDEA StatiCa Checkbot is an application for the management of BIM workflows - importing and synchronizing connections and members. Checkbot gives you:

  • Complete control over all of your imported connections and members
  • Clear list of all imported items including status checked/not-checked
  • 3D visualization of imported members and loads
  • Conversion table for materials and cross-sections
  • Load combinations management

BE IN CHARGE OF THE STRUCTURAL DESIGN

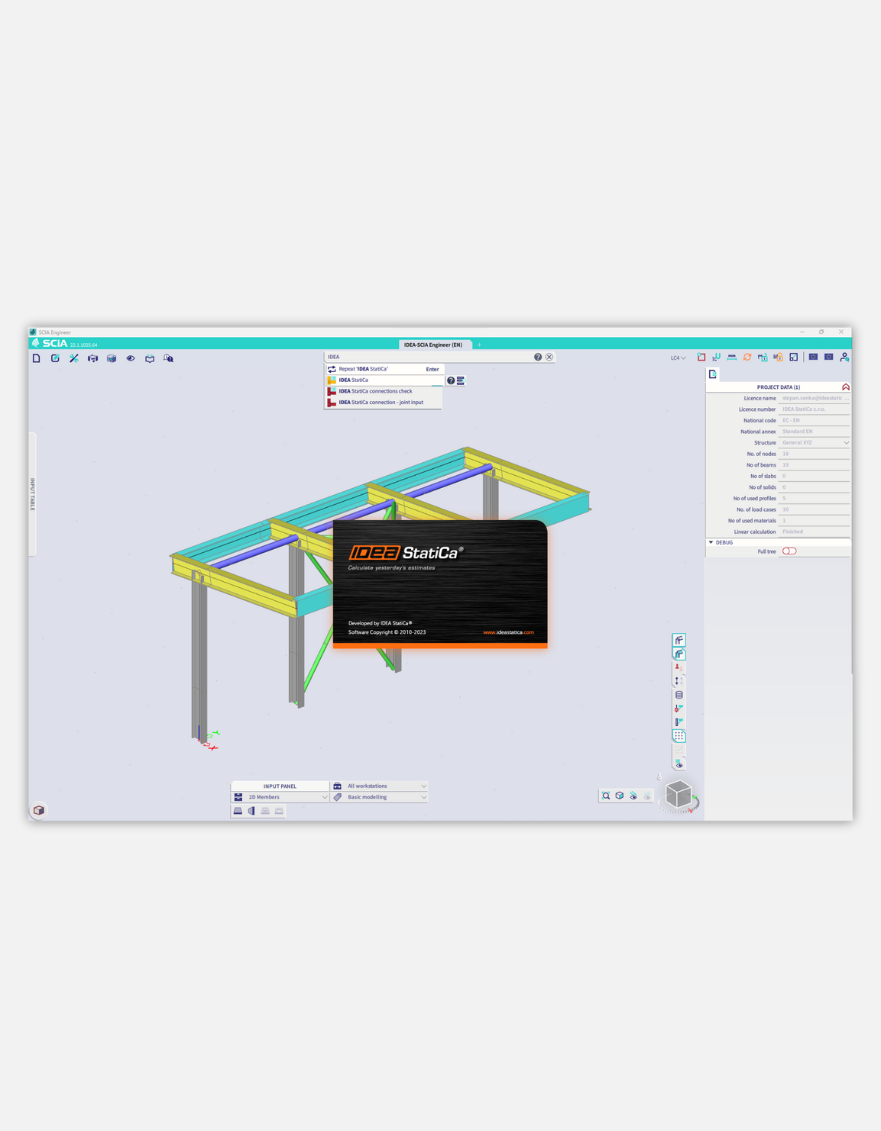

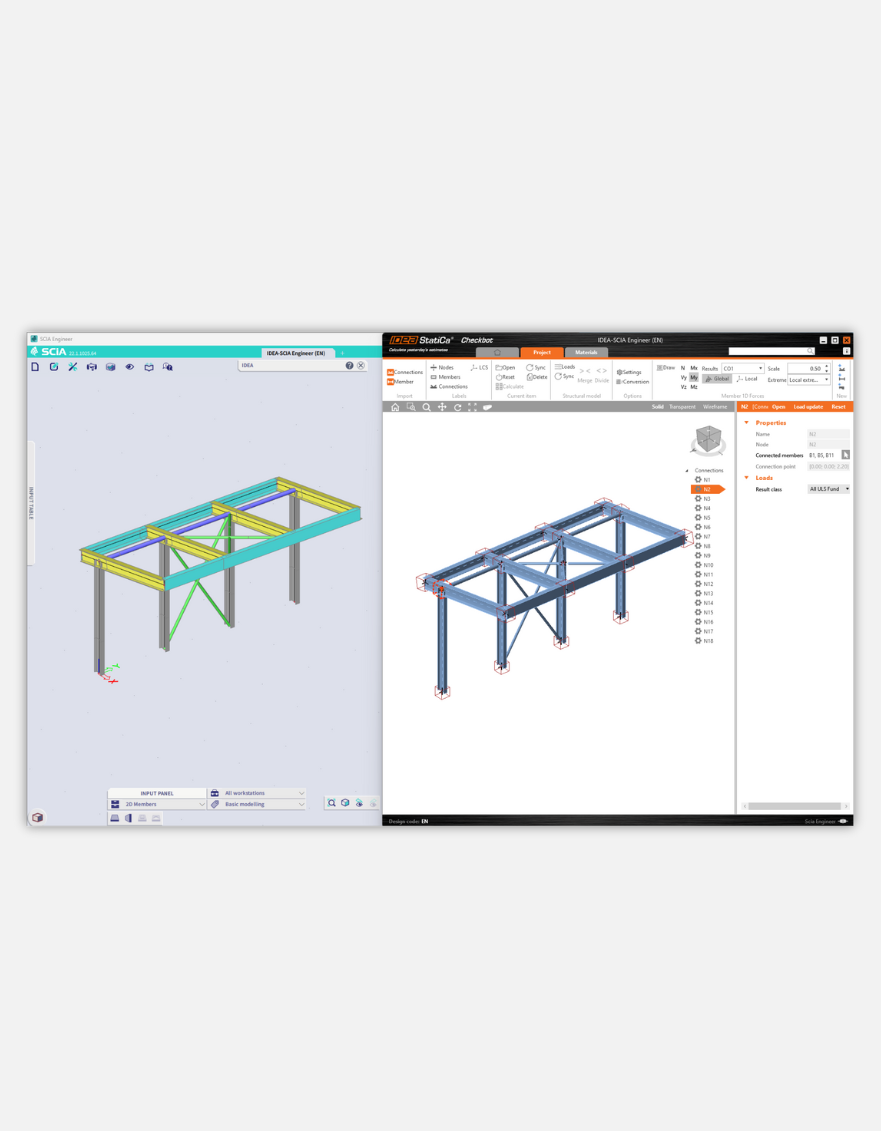

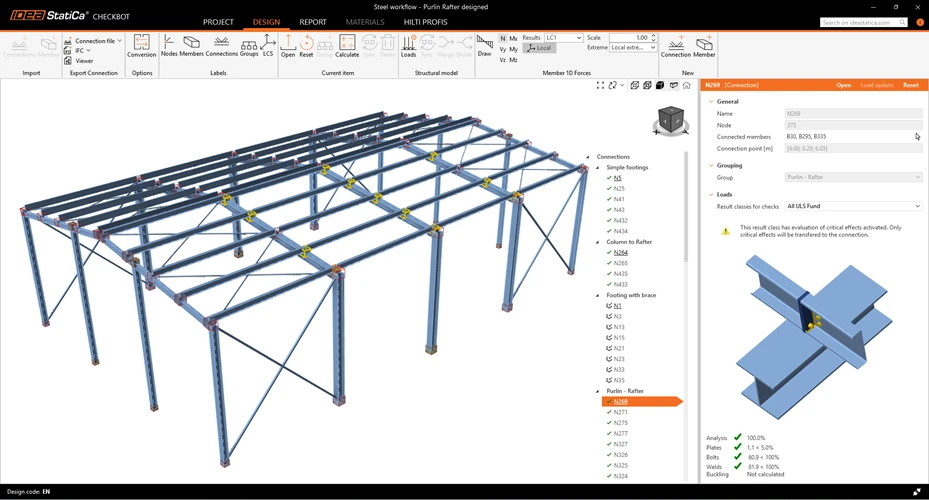

IDEA StatiCa Checkbot detects a project in the 3rd party solution and creates a folder in which all the connections and members are saved. There are three main components of the Checkbot: interface - the list of design items on the left, the 3D scene in the middle, and the properties on the right.

Checkbot (BIM link) does not start

SEE THE STATUS, MANAGE CHANGES

Checkbot gives status for each connection and member:

  • Cogwheel – more input is required (geometry, load cases, …)
  • Nothing – ready to be calculated
  • Green tick – calculated and code-checks passed
  • Red cross – calculated but code-checks failed


More info about Checkbot
