Robot Structural Analysis BIM link for steel connection design (AISC)

Cet article est aussi disponible en :
By following this step-by-step tutorial, you will learn how to design and code-check a structural steel connection using the BIM link between Robot Structural Analysis (RSA) and IDEA StatiCa.

Comment activer le lien

IDEA StatiCa intègre les liens BIM dans vos solutions MEF/BIM lors de l'installation. Vous pouvez voir le statut et activer autres liens BIM pour des logiciels installés aussi plus tard dans l'outil d'installation des liens BIM.

Veuillez noter qu'il faut des étapes supplémentaires pour activer des liens BIM de quelques solutions MEF avec IDEA StatiCa.

Ouvrez IDEA StatiCa et allez à l'onglet BIM et ouvrez l'outil d'installation des liens BIM (Activation du lien BIM...).

Une notification avec le texte « Voulez-vous autoriser cette application à apporter des modifications à votre appareil ? » peut apparaître. Dans ce cas, veuillez confirmer avec le bouton Oui.

Le lien BIM pour le logiciel sélectionné (si trouvé) sera installé. L'écran vous montrera aussi le statut d'autres liens BIM qui peuvent être déjà installés.

How to use the link

We have a RSA model for you to use: AISC.

Open the model in Robot Structural Analysis, calculate and save it.

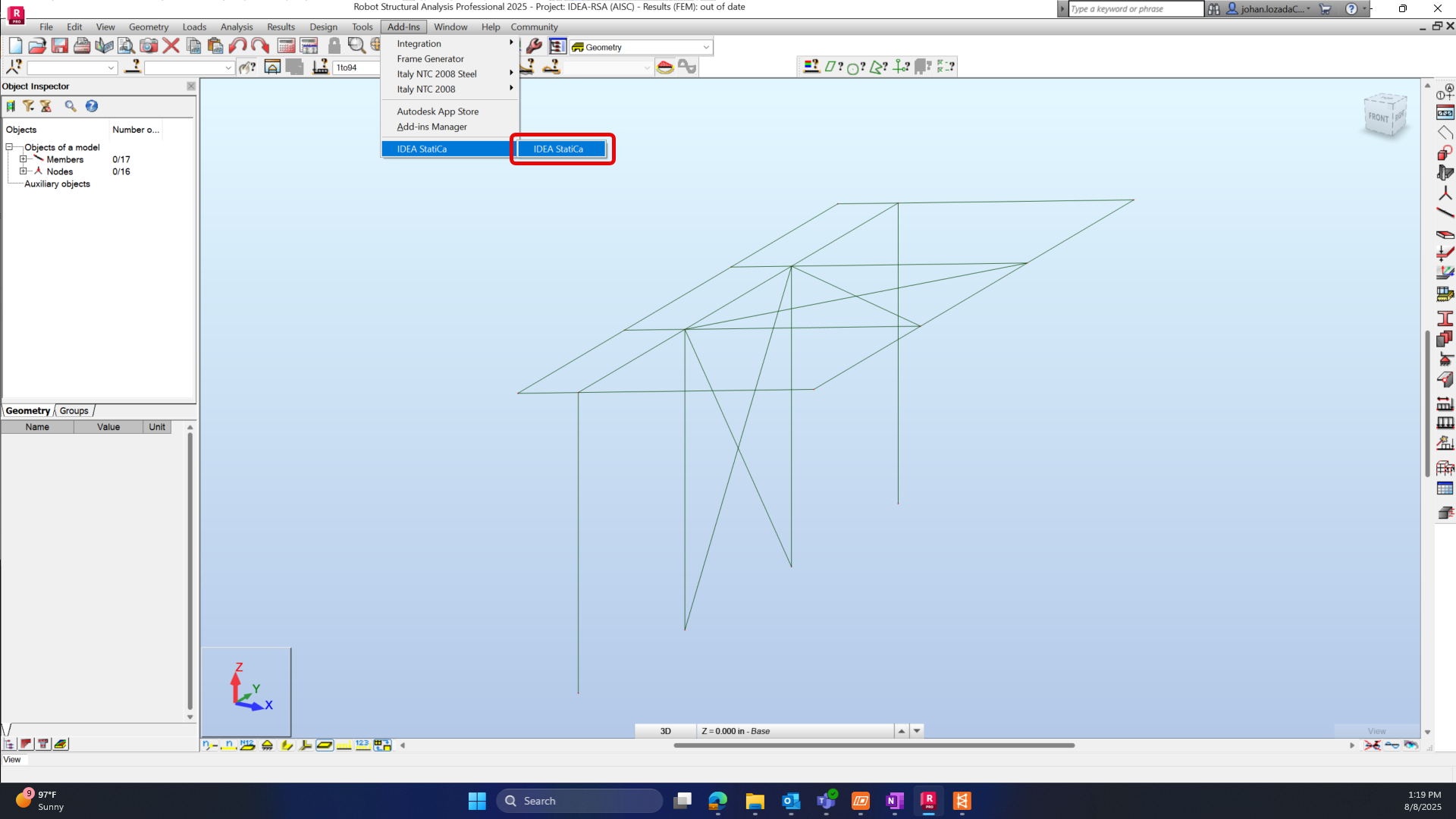

The BIM link should be automatically integrated. You can find it in the top ribbon under Add-Ins -> IDEA StatiCa -> IDEA StatiCa. This will open the Checkbot application.

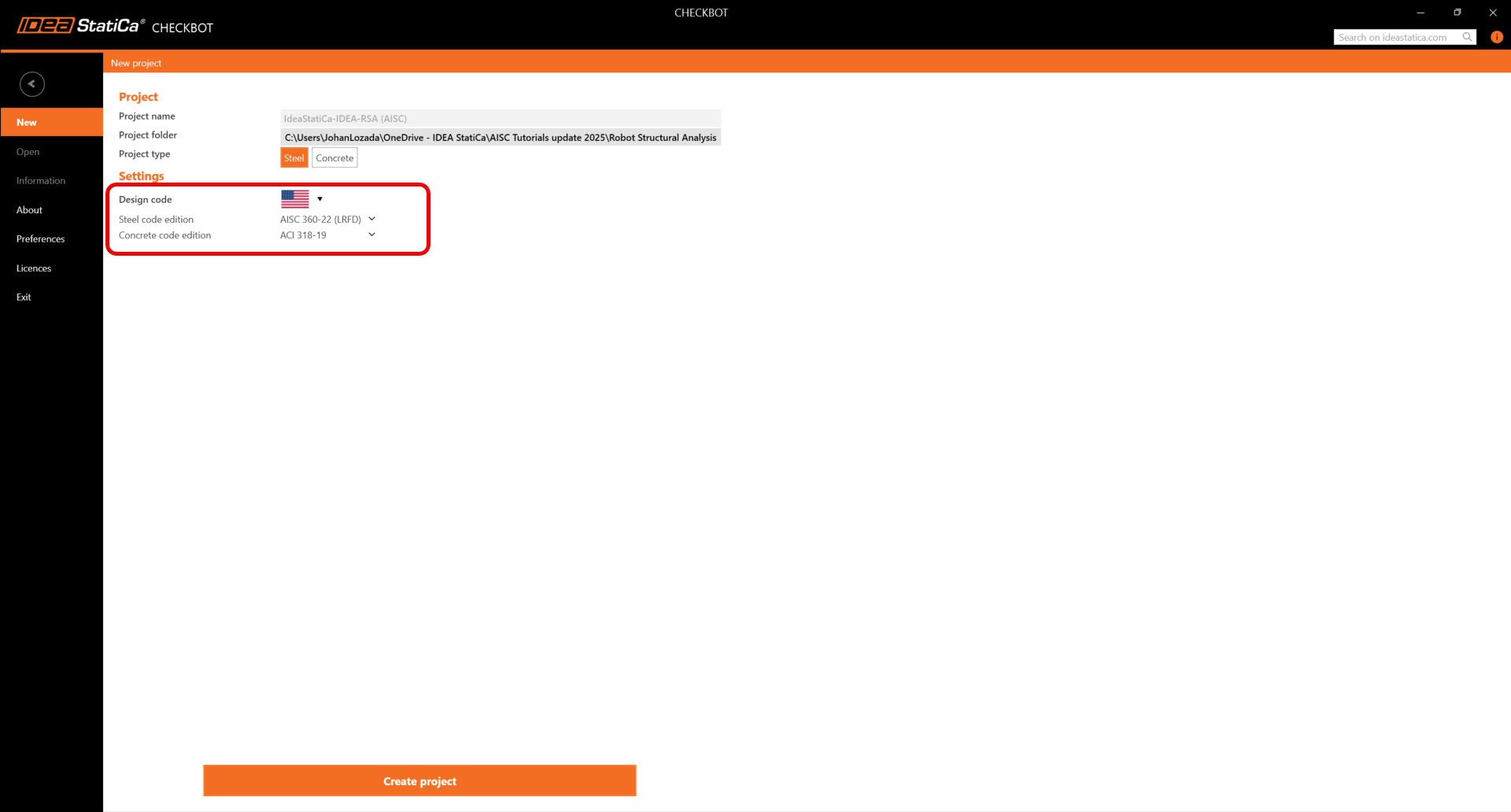

Select the New option with project type Steel and design code USA - Subcode LRFD (AISC 360-16). Then select Create project.

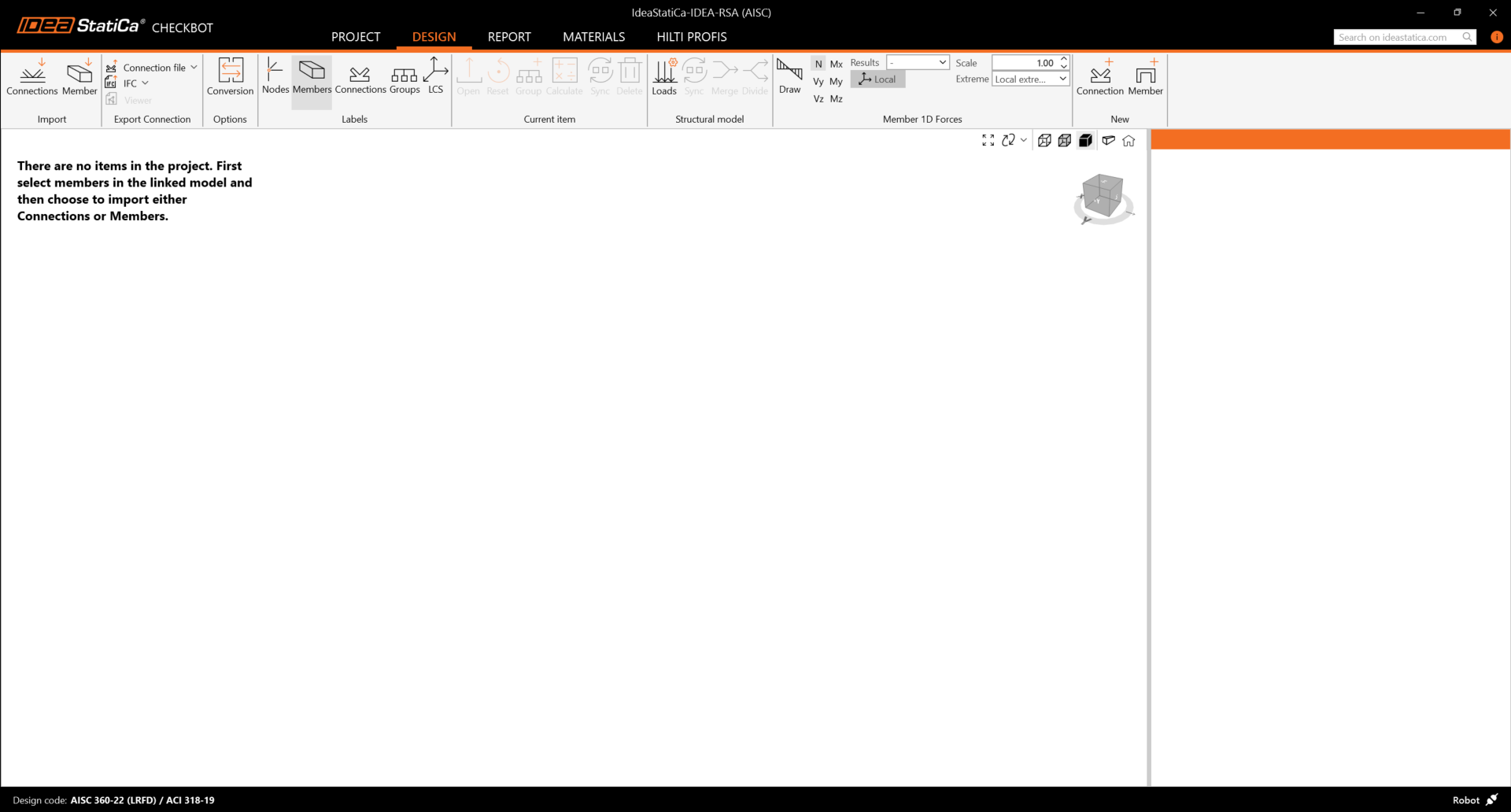

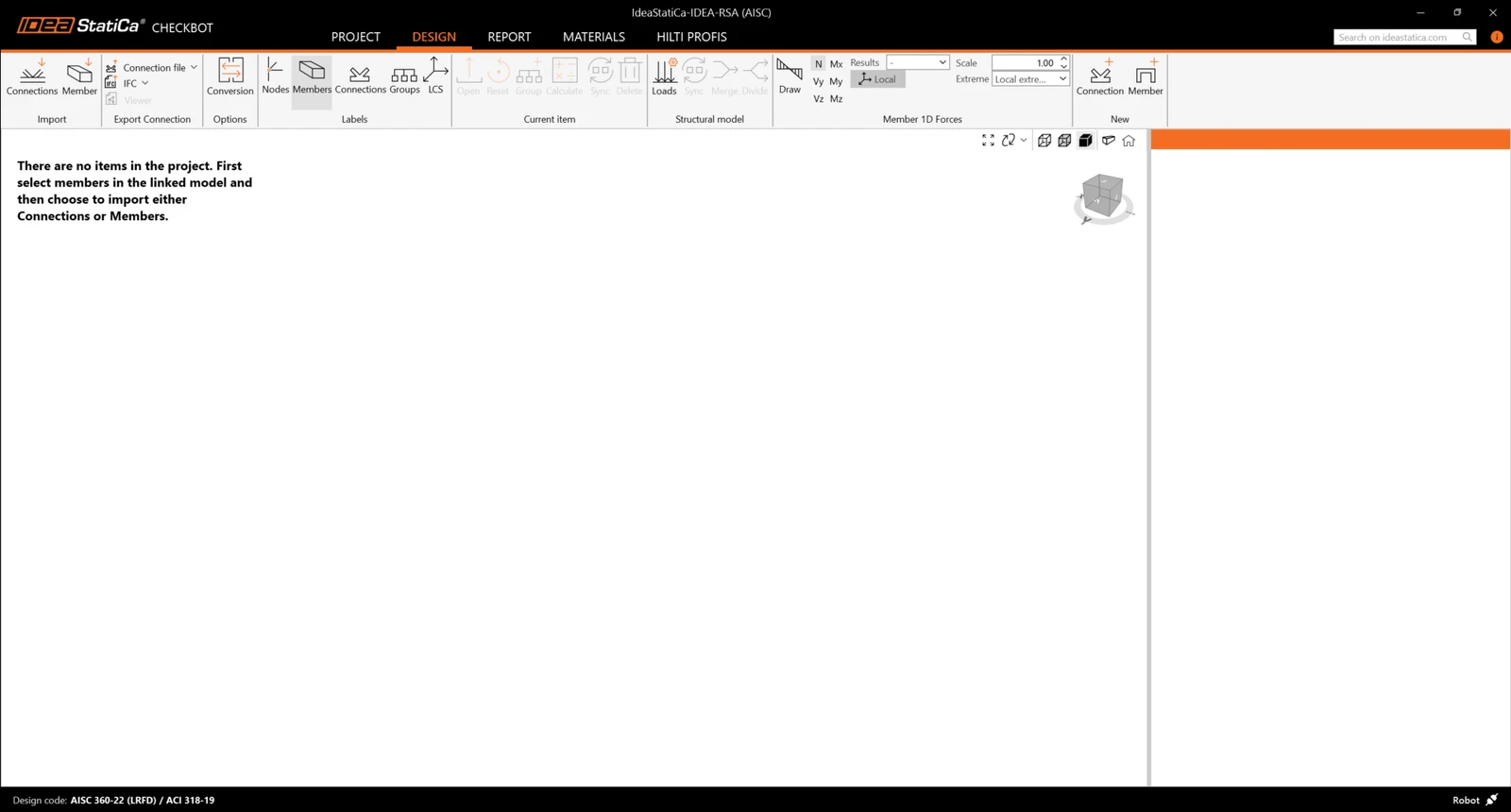

The new Checkbot project is ready to import connections from Robot Structural Analysis.

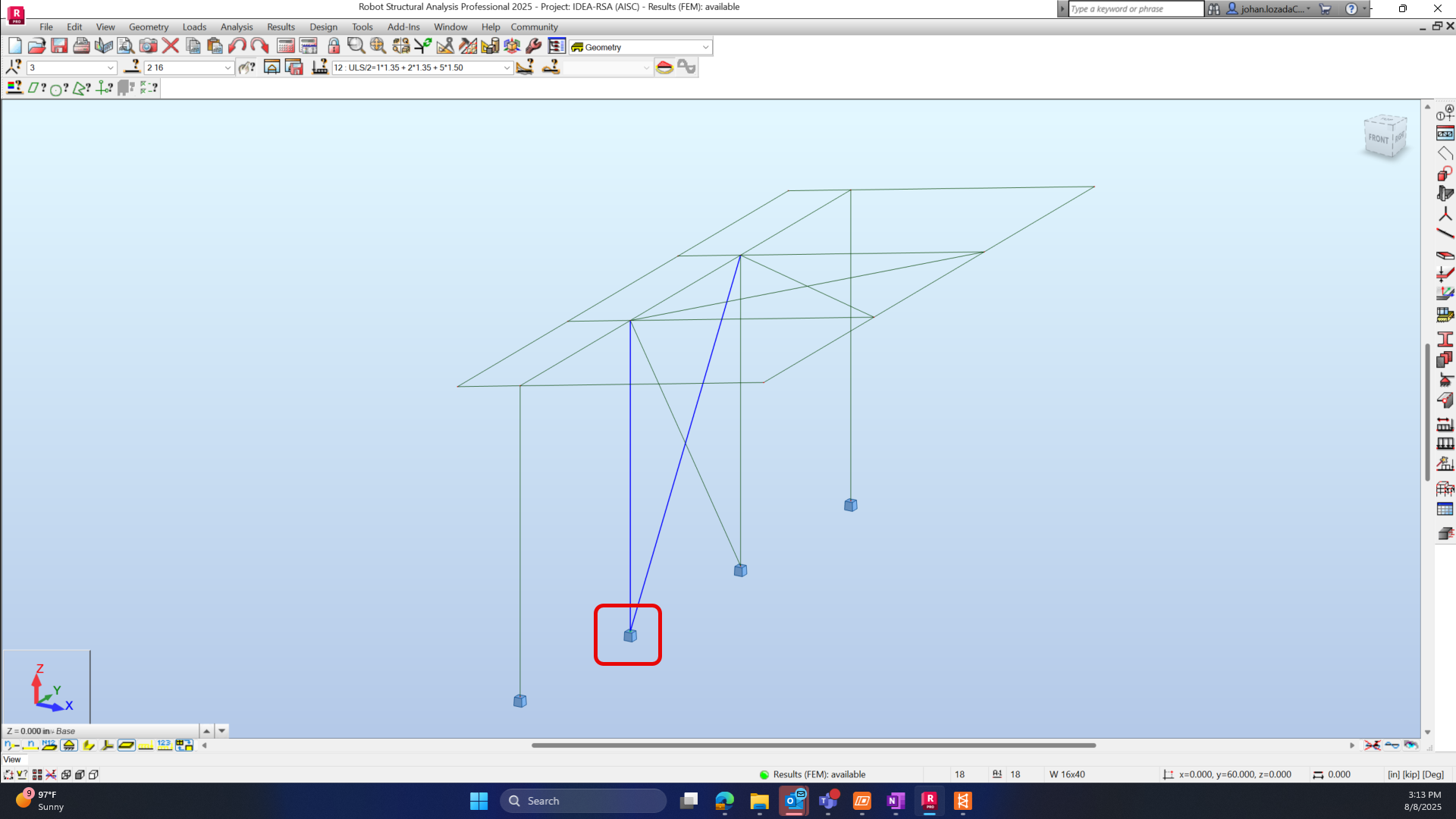

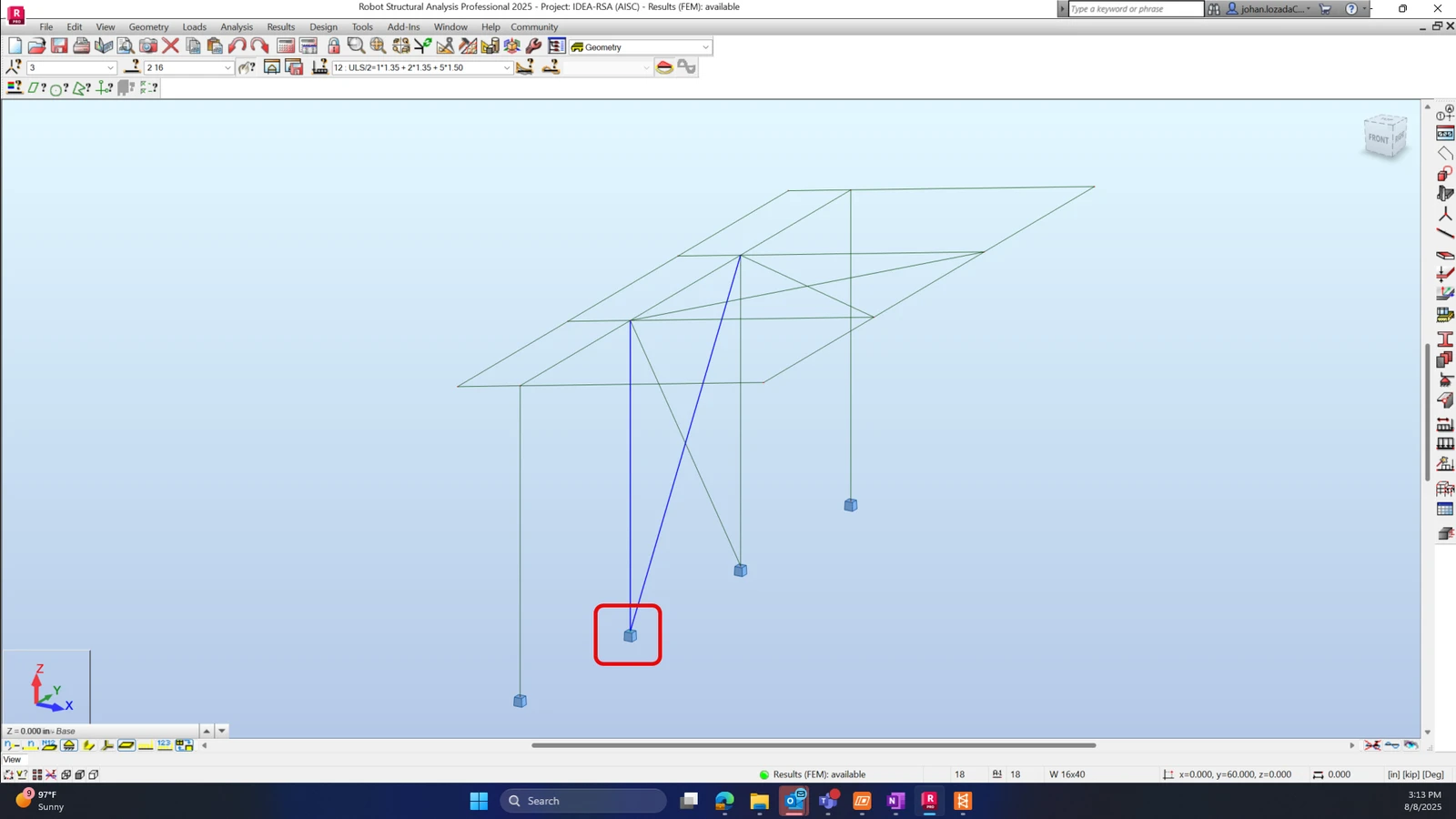

In Robot Structural Analysis, select one of the inside columns making sure you also select the lowest node.

Import

Then in Checkbot select Connections.

This will import the column and its load effects into Checkbot - with the same coordinates, orientations, and section sizes as per the FEA/BIM model.

Please note that your node and member numbering might be different.

Please note the 3D workspace is designed to show an overview of the imported structure and not a detailed view of the actual connections.

For more information on Checkbot, see here.

For several FEA/BIM solutions, you can also import multiple connections into Checkbot in the same manner as above.  Instead of selecting one node and the connected members, you can select several nodes and members using the selection methods within the application.

We recommend not importing all of the connections at the same time but building up the connections incrementally.

Geometry

In the list of project items under Connections and with a connection highlighted in Checkbot you can either right-mouse click and select Open or click the ribbon command Open to start designing, code-checking, and reporting.

The settings of members are taken from the original FEA/BIM application. You can, however, change the section size of any member on the main Checkbot screen, but this will break the link with FEA/BIM application in this session unless it's synchronized again.

The imported connection is opened in the IDEA StatiCa Connection application.

You may see none or different Load effects from your preferred FEA/BIM* solution depending on how the load case combinations have been defined.  By default, IDEA StatiCa will choose the most critical for code-checking purposes. (* Some BIM solutions are not able to store the load case combination results)

For more information on Load effects see here.

Design

We are going to use the Connection Browser function to generate a connection. Select Propose and IDEA StatiCa will put forward possible solutions for the current geometry

Propose feature

Choose the suggested Simple Baseplate and press OK.

Change the proposed values for the bolts to 3/4 A325 and accept the concrete block.

Baseplate and anchors have been created.

Now we are going to adjust the parameters of the applied operations.

Baseplate

Base plate settings

Connecting plate

Connecting plate settings

As we have connected the diagonal brace using a single bolt connection, we must also change the Model type of the brace member to N-Vy-Vz. Select the brace in the list of Members and modify the Model type in the drop-down list.

This is what the designed connection looks like.

N-Vy-Vz constraint

Code check and Report

To run a code check, we must also make sure that the code is correct in IDEA StatiCa Connection.  From the Design tab in the Options panel choose LRFD 2016 from the sub-code list.

Now run a code check using the Calculate icon in the CBFEM panel from the top ribbon.

Within IDEA StatiCa Connection you can carry out many different types of analysis and code-checks. For more information please see here.

You will get the results of the nonlinear analysis.

The detailed results for plates, bolts, welds, anchors can be displayed using the ribbon menu. In the image below the Deformed shape with Equivalent stress is being displayed.

You can go through the results on anchors as well.

Once the code-check is finished, you can create the report containing results and diagrams for your connection model in the Report tab.

IDEA StatiCa offers a fully customizable report to print out or save in an editable format. For more information, please see here.

Report

Save and exit this connection back to Checkbot.

In Checkbot, you will see a green tick next to the connection. This means that the connection is valid and has passed all code-checks. In the Connection panel, you can also see a representation of the connection and a summary of the code-check results.

If multiple connections are present in Checkbot, then each must be opened, designed, and code-checked.

In the example below, you can see that both baseplate connections have passed their respective code-checks whilst the remaining connections are yet to be validated.

Synchronisation du modèle

De temps en temps, il y a des modifications de votre modèle MEF/BIM, par exemple une taille différente de section d'un élément ou des charges différentes. Il est possible de les synchroniser entre Checkbot et le modèle MEF/BIM.

Il y a deux alternatives :

  • Synchroniser l'Élément actuel (si un ou plusieurs assemblages sont sélectionnés)
  • Synchroniser le Modèle structural importé entier

Pour vérifier cette fonction, vous pouvez changer la taille ou forme de section d'un élément dans votre application BIM/MEF ou modifier un cas ou combinaison de charge, etc. : changez les poteaux pour une section plus petite. N'oubliez pas de réanalyser le modèle MEF.

Dans Checkbot, sélectionnez les attaches conçues (il peut y avoir plus qu'une) et puis Synchronisation au panneau Élément actuel.

Le projet dans Checkbot sera actualisé, la conception d'attache sera enregistrée mais les résultats ne seront plus valides. Vous pouvez voir que le poteau est actualisé – avec le même changement qu'au modèle MEF.

Il faut seulement vérifier les attaches en surbrillance encore une fois en sélectionnant Calculer au panneau Élément actuel. Veuillez noter que des changements plus significatifs du modèle peuvent exiger des étapes de validation supplémentaires pour les attaches affectées (comme ci-dessus).

Si les attaches ne donnent pas de résultats désirés, vous pouvez les rouvrir pour optimiser la conception (renforcer-les si elles échouent la vérification ou alléger si l'utilisation est trop basse).

You have successfully linked Robot Structural Analysis with IDEA StatiCa Connection via Checkbot.  You have also designed, checked, and reported on a connection before incorporating changes made in the original FEA model back into IDEA StatiCa Connection.
