Skewed beam to beam

Este artículo también está disponible en:

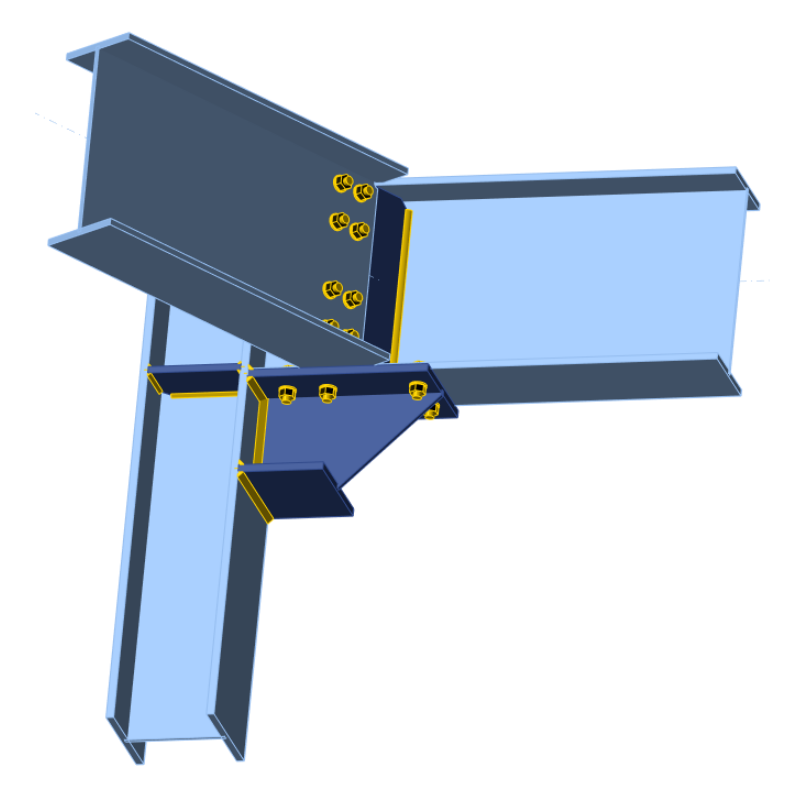

Beam to column connection stiffened with an I-section haunch and a side beam connected via strong fin plate. The side member direction is inclined from the perpendicular direction to the main beam. This atypical solution is used for roof structure with the irregular layout. The connection is solved in the IDEA StatiCa Connection app.
