Anchoring with bolted diagonal (parametric)

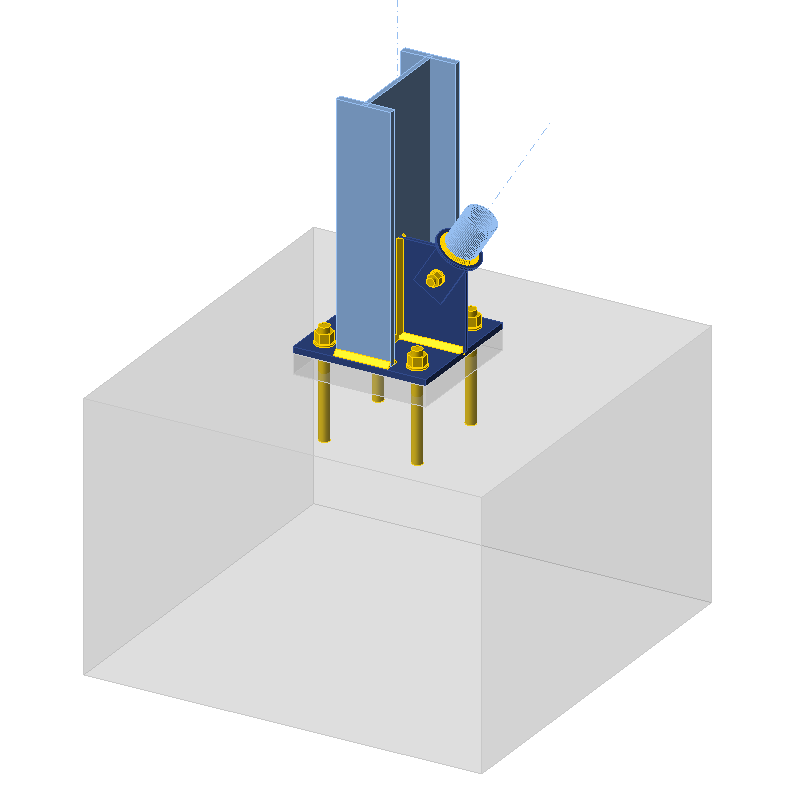

An example of anchoring with a connected diagonal. The model is built using the base plate, gusset plate, concrete block, and bolt connection. An I180 column is anchored to a concrete block and a hollow section CHS48.3/3.2 diagonal is connected via one bolt to the welded gusset plate, using the lid and double tongue.
The parametric model is created in the IDEA StatiCa Connection app.
