Stand-off anchors check

This article is also available in:

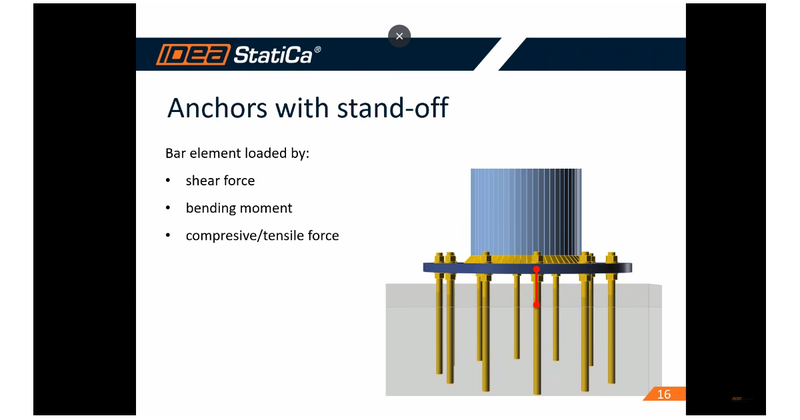

The anchors with stand-off require a different approach for code-check than anchors embedded and aligned directly with the concrete block surface.  The anchors are subjected to shear force and bending moment.

How to treat this type of anchor is explained in the attached video.
