Orientation of the connecting plate can be modified

This article is also available in:

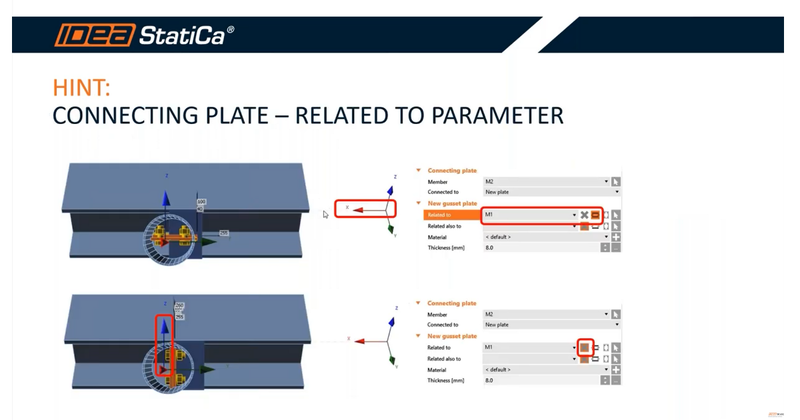

The orientation of the connecting plate is determined by the related members. The relation is crucial because for the orientation of the plate the LCS – local coordinate system of members is taken into consideration. By manipulating with the related properties the orientation of the plates can be influenced.
